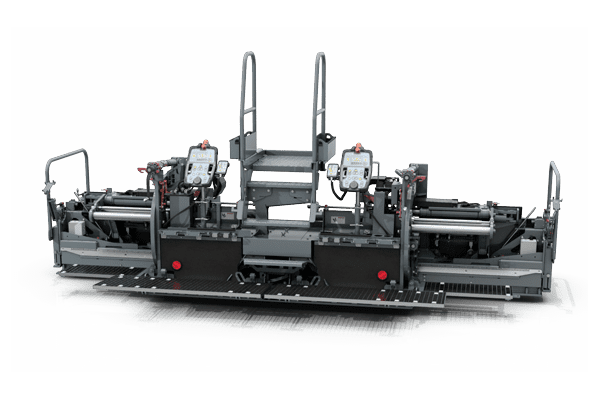

The VF 500 Extending Screed from Vögele is the ideal solution for applications that require a variable paving width. It conquers parking lots and jobs that involve paving around obstacles like manhole covers and more, with ease. This screed is specifically designed for use with SUPER 1700-3i and SUPER 1703-3i pavers from the Universal Class.
Specifications
| VF 500 |
| Compacting System |
Vibration (frequency up to 3,000 rpm) |
| Basic Width |
48 in |
| Maximum Paving Width |
234 in |
Features
Telescoping System
- The single-tube telescoping system prevents any contact with paving mix by clamping half of the three-point telescoping tube, even at maximum extension. This allows for a stable, seamless workflow and minimizes downtime.
- The three-point support system, combined with low-wear sliding bearings inside the telescoping tube, ensures gentle and smooth adjustment of the paving width.
Heating System
- The intelligent generator management system ensures continuous optimum temperatures across the full paving width. This allows operators to work efficiently while reducing energy required and fuel consumption.
- The electric heat pattern delivers quick, consistent, and even heating-up time, ensuring top-quality results and maximum machine availability.
Screed Production Technology
- Vögele screeds are built from robotically welded, laser-cut steel for a consistently high fitment standard and welds that will stand the test of time.
- Wear components are made with Hardox steel, making them the perfect solution for harsh operating conditions.
- Vögele experts submit every unit to a rigorous comprehensive quality control check to confirm all functions, settings, filling levels and pressure components.
