Make a bigger impact with our compacts.

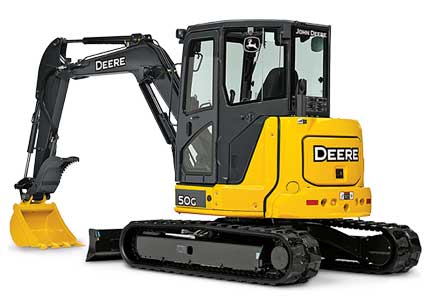

Looking to get more out of your mini ex? Make your next compact excavator one of our G-Series. Inspired by input from equipment owners and operators like you, this 50G Compact Excavator is loaded with customer-driven enhancements. Such as a more spacious cab with a wider entryway. Larger expanse of glass for unsurpassed visibility. Fuel-saving auto-shutdown and power/economy work modes. Ultra-reliable Final Tier 4 (FT4)/Stage IV engines. Plus three large service doors that allow wide-open access to maintenance items such as the side-by-side coolers for simplified core clean-out. Get a G-Series and get the same power, productivity, reliability, and comfort you've come to expect from our compacts - in an even more operator-friendly package.
Specifications
| 50G |
| Rated Power | 35.9 hp @ 2400 rpm |
| Operating Weight | 10811 lb |
| Digging Depth | 140 in |
Features
KEY FEATURES
- Reduced- and zero-tail-swing designs make these compact excavators even more productive, for extra maneuverability in close quarters.
- Spacious operator stations and refined cabs provide best-in-class comfort and visibility.
- Quiet-running EPA Interim Tier 4/EU Stage IIIB (EPA Final Tier 4/EU Stage IV on 17D) direct-injected diesels deliver generous torque and impressive fuel efficiency.
- Standard coupler accommodates a wide variety of available attachments such as rakes, breakers, and augers.
- Extended service intervals help maximize uptime and minimize operating cost.
PRODUCTIVITY
- Zero tail swing, independent-swing boom and 360-degree rotation allow maximum flexibility and exceptional maneuverability for work in tight spaces.
- The 50D can be equipped with an optional, hydraulic, adjustable-angle backfill blade that features 25 degrees of adjustment to both the left and right for more efficient trench backfilling. Blade angle changes easily with buttons on top of the blade-control lever.
- Standard quick-coupler and boom-mounted auxiliary hydraulics accommodate a wide variety of buckets and Worksite Pro™ attachments such as rakes, breakers, and augers.
- Standard rubber tracks traverse virtually any terrain and are especially useful on paved surfaces.
- Exceptional drawbar pull delivers plenty of power for backfilling trenches or transporting material around jobsites.
COMFORT
- Ergonomic low-effort pilot controls direct an open-center variable-displacement hydraulic system for exceptionally smooth, combined-function performance.
- Spacious operator station, wide control spacing, foldable pedals, and adjustable seat provide daylong comfort. Optional air-conditioned cab includes a large expanse of tinted glass, bi-fold door, and wide entryway.
- Easy-to-read systems monitor is positioned within the forward line of sight to provide vital operating information at a glance.
- Go from backhoe- to excavator-style controls with just a twist of the control-pattern selector valve conveniently located beneath the seat.
UPTIME/SERVICE
- Fuel-sipping diesel and auto-idle help preserve precious fuel. Extended service intervals let you work longer between scheduled maintenance.
- Open just two doors to perform all maintenance checks and service. Hydraulic fluid sight gauge and see-through coolant reservoir let you check levels at a glance.
- Tungsten-carbide-coated surfaces and oil-impregnated boom, arm, and bucket bushings deliver unsurpassed long-term durability.
- Steel cores within the rubber tracks resist cracking. Large drive sprockets and idlers provide additional undercarriage durability.
