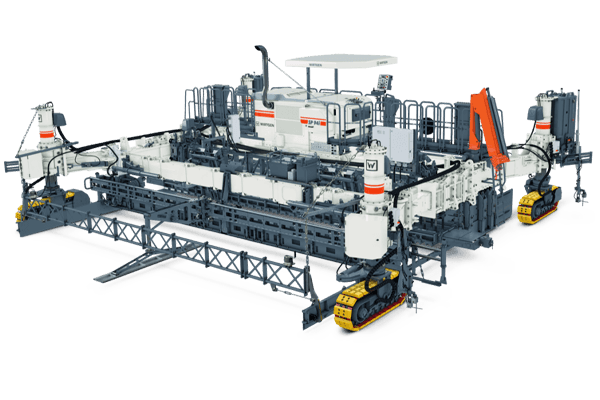

The flexible 4-track SP 94i slipform paver from Wirtgen is perfectly suited for the North American market and tackles a variety of paving jobs – from 6 ft. to 32 ft. wide – with the highest quality of surface evenness. Specially designed long crawler units simplify operation under difficult conditions and delivers low ground pressure. Plus, tie bars and dowels can be inserted into an optional self-loading dowel-bar inserter to pave concrete that requires reinforcing steel. The modular machine design, simple changeover and expansion procedures, and hydraulic swing arms make this machine highly adaptable to any job situation. And, the intelligent, electronic steering and control systems ensure precise handling of the four crawler units and ensure top-quality concrete paving.
Specifications
| SP 94i |
| Rated Power | 310 hp @ rpm |
| Operating Weight | 52910 - 143300 lb |
| Working Width | 144 - 384 in |
Features
Slipform Paving Inset
- Concrete can be deposited in the front of the slipform paver or fed in through the side via a belt conveyor or side feeder, delivering versatility at the jobsite. The concrete is then distributed evenly across the full paving width by a spreading auger or spreading plow.
- Built-in electrical or hydraulic vibrators ensure precise, homogenous compaction of the concrete surface to the specified thickness and width while the slipform paver travels forward.
- A dowel bar inserter can be added to incorporate bars into the concrete as specified, parallel to the paver’s direction of travel.
- Central tie bars or side tie bars can be inserted perpendicular to the concrete pavement. The oscillating beam then scrapes the surface across the roadway while a super smoother smooths the concrete surface to finish.
Leveling Technology
- Wirtgen’s leveling technology adjusts height, depth, and pitch for extremely accurate results. The system compares the actual values to predefined target values and adjusts the deviations proportionately; guaranteeing outstanding leveling results while significantly reducing your operator’s workload.
