ONE-PASS PRODUCTIVITY

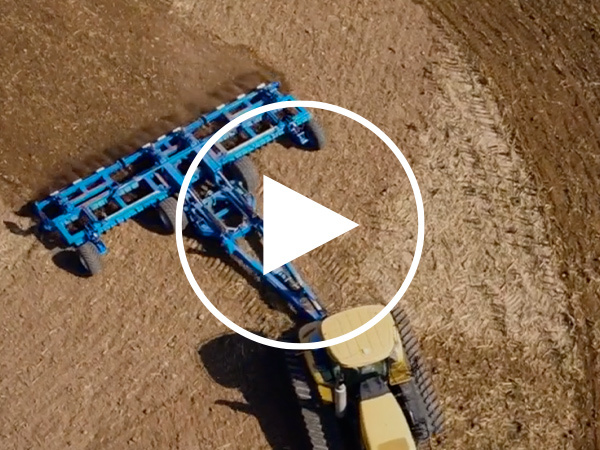

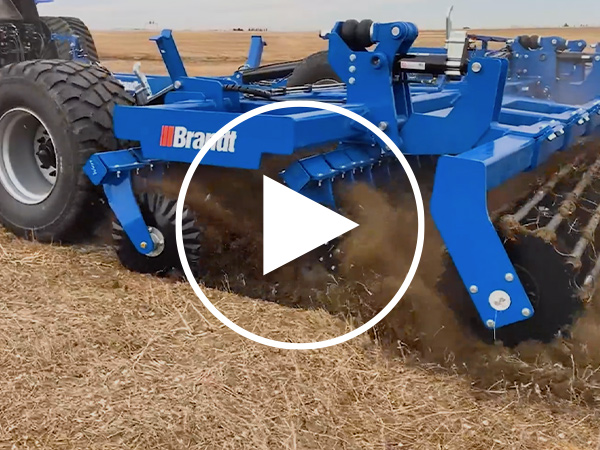

Watch Video

The High-Speed Disc delivers the best residue management and seedbed preparation in fewer passes.

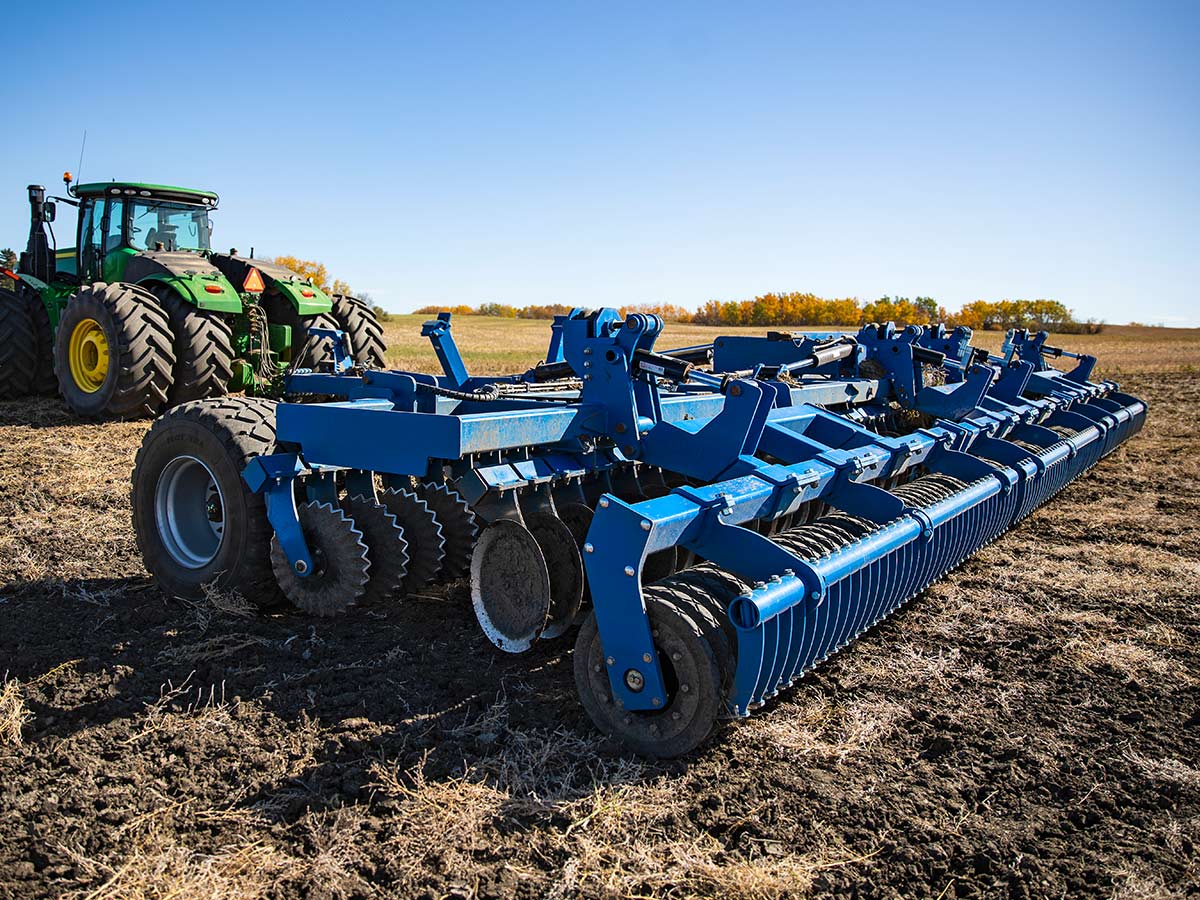

The newest tillage machine in the Brandt lineup delivers the most efficient residue management and seedbed preparation experience possible, even in challenging conditions. The Brandt High-Speed Disc enables you to stay on schedule no matter what the environment throws your way.

View Specs  Find a Dealer


High Performance Field Finish

The High-Speed Disc enables you to cut and size residue, create ideal seedbeds, and level ruts significantly faster than any other tillage machine.

Intuitive Design

Multiple machine configurations deliver the field finish that your operation needs. And, the settings are easy to use, maximizing your uptime.

Purpose-Built Reliability

Premium components are specifically chosen to deliver dependability in the field while ensuring the best return on your investment.

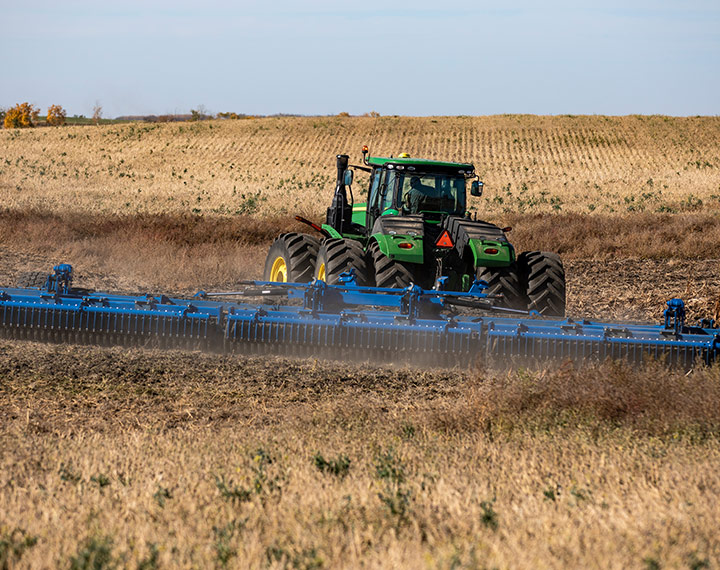

Proven Productivity

  • Designed to be operated at speeds of 10 to 14 mph to minimize time spent in the field.
  • Optimized disc angles fracture soil, bury and mix residue, while maintaining a straight pull.
  • Fast speeds even sub-surface cleanout, effectively kill weeds, and achieve an ideal field finish.

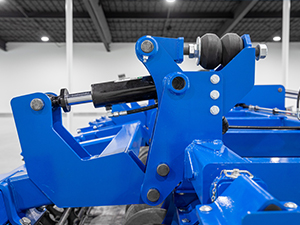

  • Optional rear finishing suspension absorbs shock load, delivering consistent ground engagement.

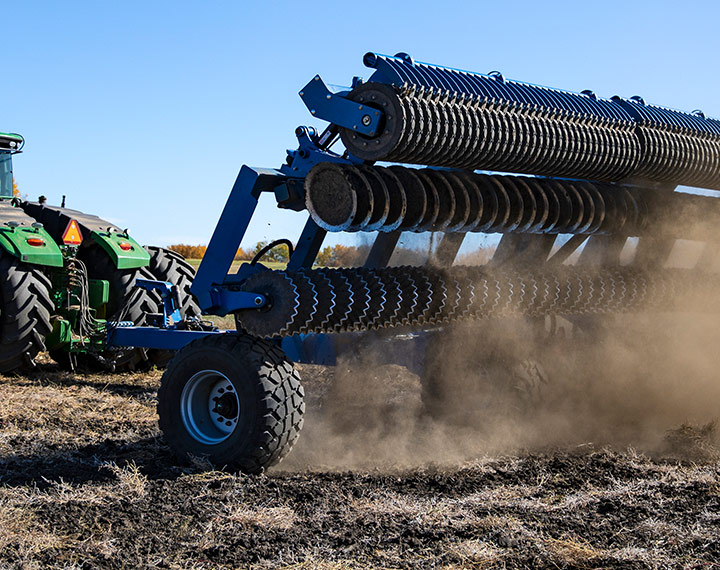

High-Velocity Versatility

  • Available in 7 working widths from 16' to 45' to accommodate for any operation and use case.

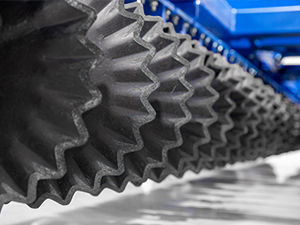

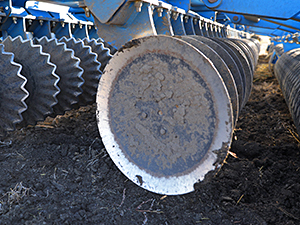

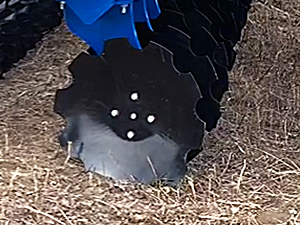

  • U-notch, smooth, or fluted disc configurations tackle multiple applications in 20” or 22” diameters.

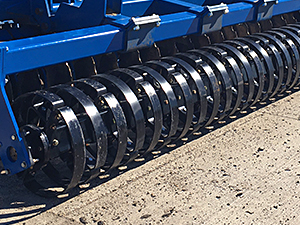

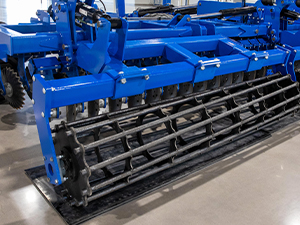

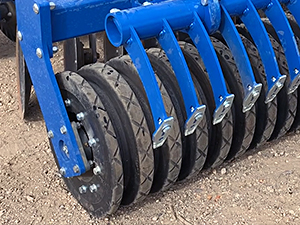

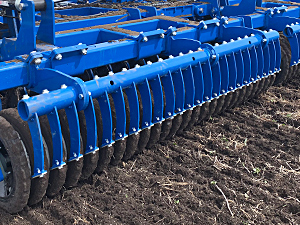

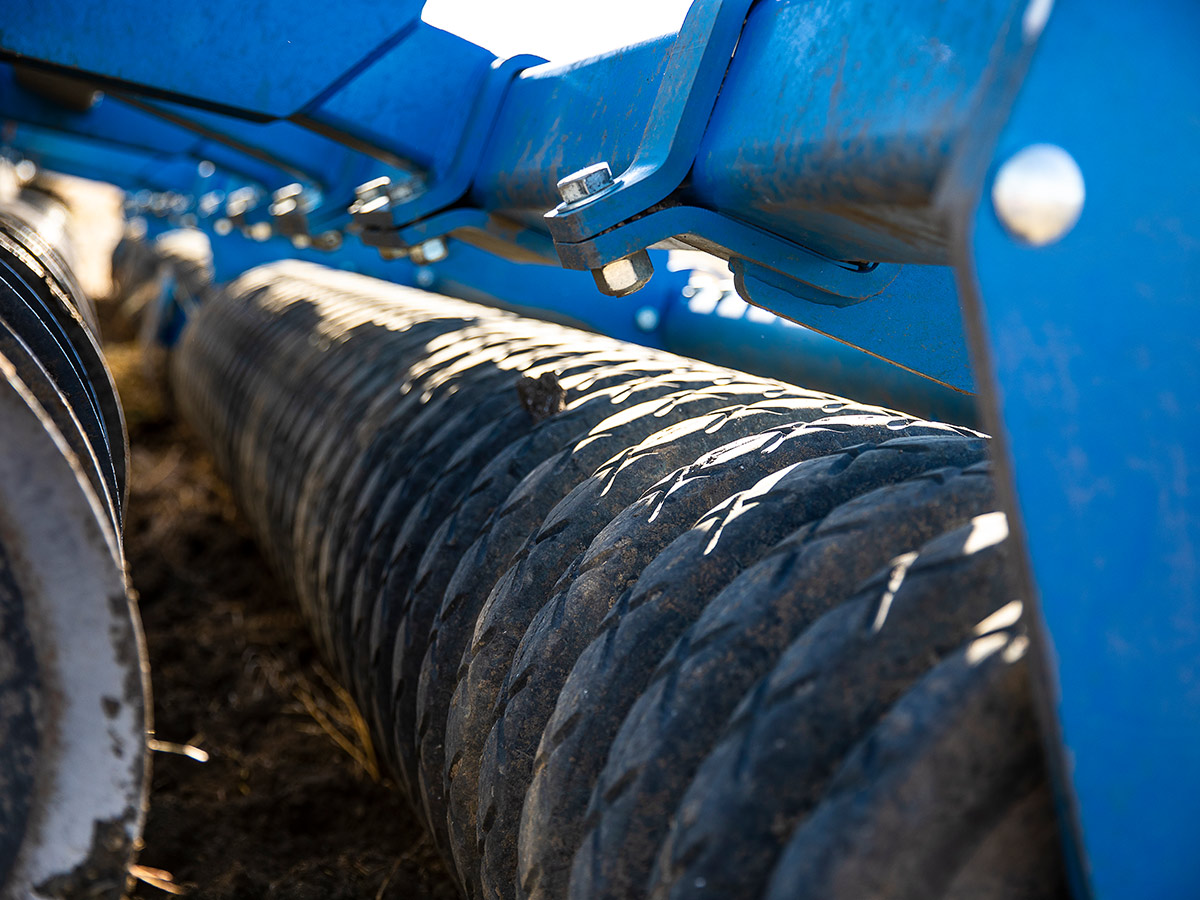

  • Available rubber-, cage-, or spring-roller rear finishing options for any type of field condition.

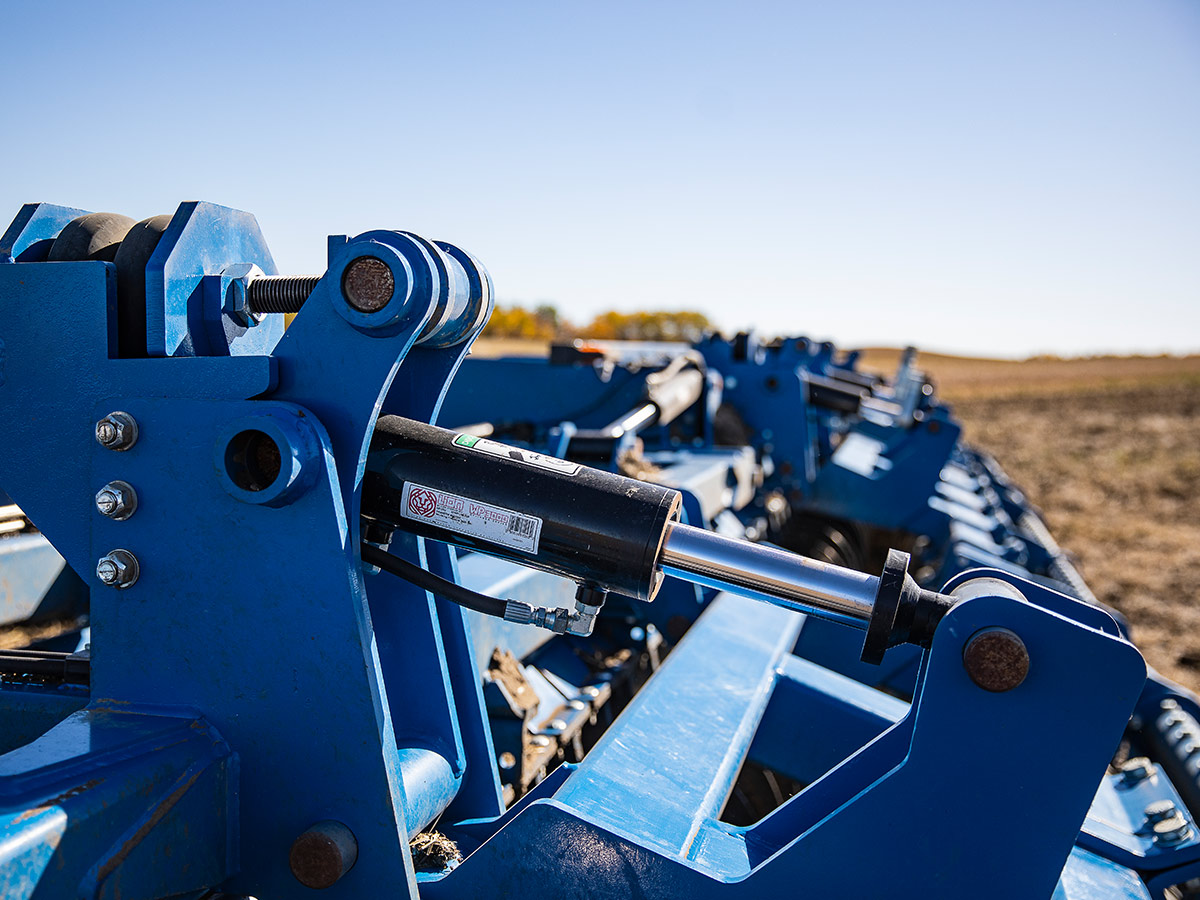

  • Active wing down pressure ensures a smooth tillage floor, providing consistent ground contouring.

Dependability Delivered

  • Heavy-duty frame provides the needed weight for ground engagement and unmatched structural rigidity.
  • Minimal-maintenance design utilizes greaseless IHCP pins and sealed disc hubs, reducing downtime.

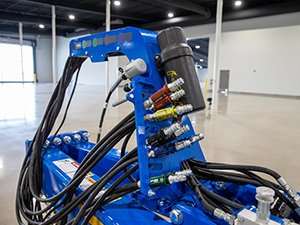

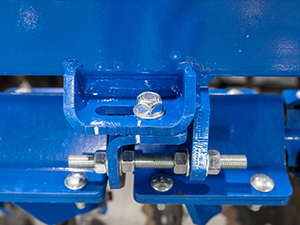

  • Controls and adjustment points are accessible from the ground or behind the hose management arm.
  • Independent disc arms use torsion suspension to dampen disc movement and increase ground contact.

Features



Specifications


  • Working Width
  • Weight (lbs)
  • Hitch Weight (lbs)

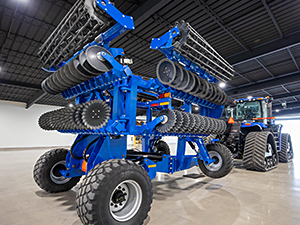

  • Transport Width
  • Transport Height (Max)
  • Disc Angle
  • Disc Spacing
  • Disc Sizes
  • 216A HP

    • 15' 10"
    • 17,810
    • 5,343
    • 9' 11"
    • 12' 8"
    • 14° Front 17° Rear
    • 5"
    • 20" or 22"
  • 221A HP

    • 20' 9"
    • 20,685
    • 6,206
    • 9' 11"
    • 12' 8"
    • 14° Front 17° Rear
    • 5"
    • 20" or 22"
  • 326A HP

    • 26' 8"
    • 27,664
    • 8,299
    • 14' 5"
    • 12' 4"
    • 14° Front 17° Rear
    • 5"
    • 20" or 22"

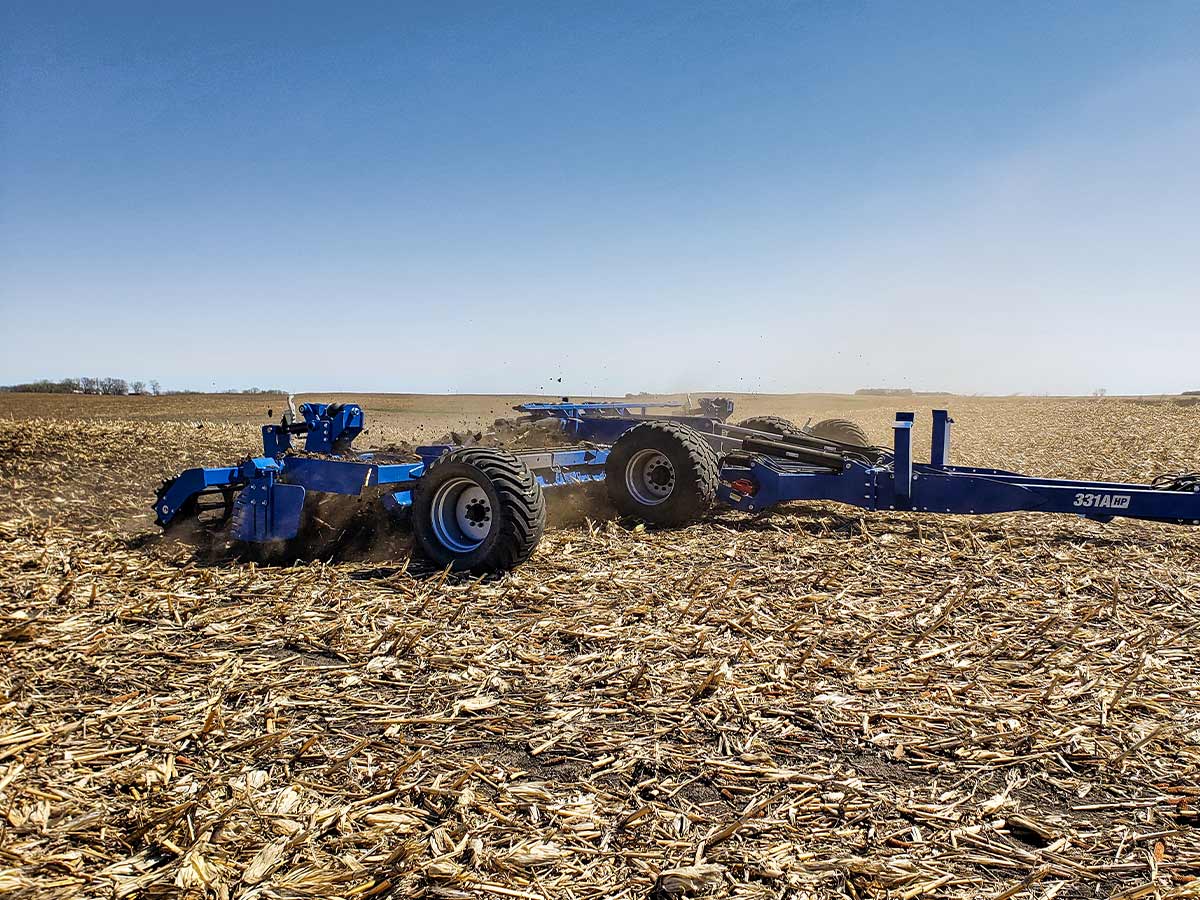

  • 331A HP

    • 31' 6"
    • 28,905
    • 8,672
    • 14' 5"
    • 12' 4"
    • 14° Front 17° Rear
    • 5"
    • 20" or 22"
  • 338A HP

    • 37' 4"
    • 31,924
    • 9,577
    • 14' 5"
    • 12' 4"
    • 14° Front 17° Rear
    • 5"
    • 20" or 22"
  • 341A HP

    • 41' 10"
    • 37,234
    • 11,170
    • 17' 8"
    • 13'
    • 14° Front 17° Rear
    • 5"
    • 20" or 22"
  • 345A HP

    • 45'
    • 38,960
    • 11,688
    • 17' 8"
    • 13'
    • 14° Front 17° Rear
    • 5"
    • 20" or 22"

Made To Manage Residue

The Brandt High-Speed Disc is purpose-built to keep you working, even in the most adverse conditions.
