Accelerate your profitability.

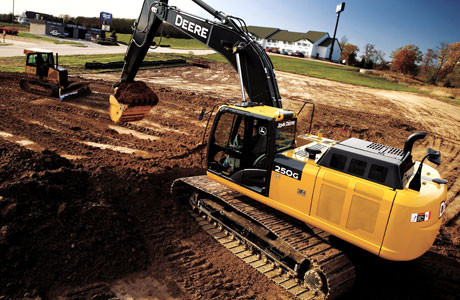

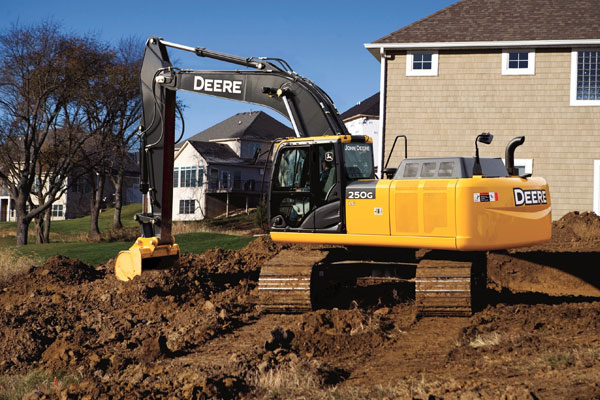

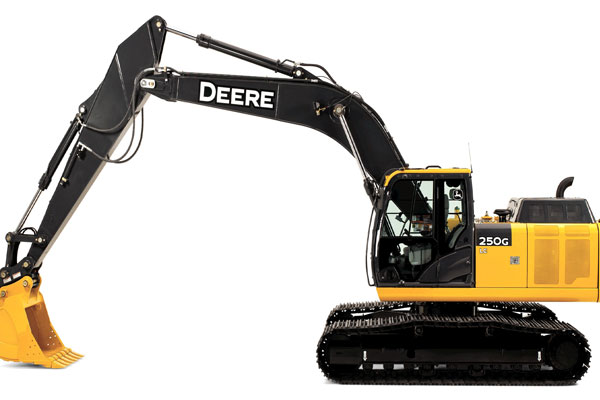

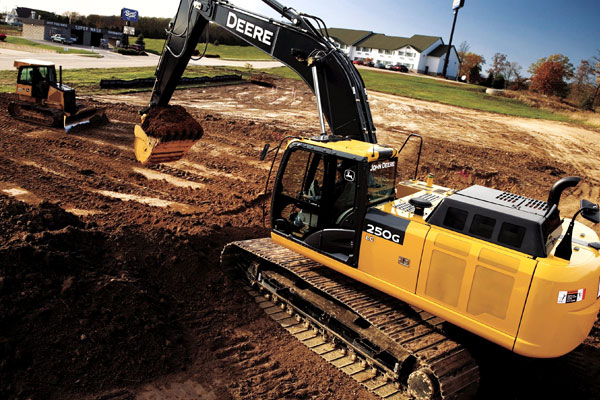

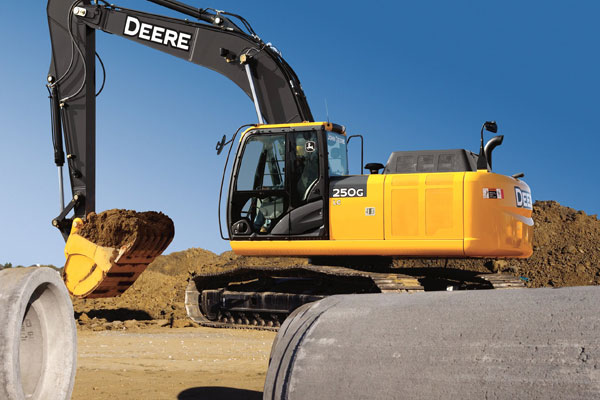

With powerful arm force, dig force, and lift capacity making the most of every gallon of fuel, the 250G LC Excavator will fast-track your bottom line. A rugged EPA Final Tier 4 (FT4)/EU Stage IV PowerTech™ diesel engine meets rigid emission regulations, enabling you to work, wherever there's work — without compromising power, reliability, or ease of operation. Customer-inspired refinements include a comfortable, spacious cab. And a refined LCD monitor with simplified navigation that lets an operator easily dial-in to a wealth of machine information and functionality. But that's only the beginning.
Specifications
| 250G LC |
| Rated Power | 188 hp @ 2100 rpm |
| Operating Weight | 57800 lb |
| Digging Depth | 300 in |
Features
KEY FEATURES
- Powerwise III management system.
- Hydraulically driven fan runs only as needed.
- Rigid, reinforced D-channel mainframe.
PRODUCTIVITY
- Faster hydraulics, increased swing torque, and more drawbar pull help boost production.
- Powerwise III management system perfectly balances engine performance and hydraulic flow for predictable operation. Three productivity modes allow you to choose the digging style that fits the job. High Productivity delivers more power and faster hydraulic response to move more material. Power delivers smooth and balance metering for normal operation. Economy limits top speed and helps save fuel.
- When digging gets tough, simply press the power-boost button on the right-hand control and muscle through.
- Auto-idle automatically reduces engine speed when hydraulics aren't in use. Auto-shutdown further preserves precious fuel.
- Right and left boom lights and optional cab lights provide illumination to extend your workday beyond normal daylight hours.
ENGINE AND COOLING
- Graphite-iron wet-sleeve cylinder liners, mono-steel pistons, and large-diameter connecting rods ensure long-term engine durability.
- Highly efficient, heavy-duty cooling system keeps things cool, even in tough environments or high altitudes.
- Optional reversing fan back-blows cooler cores to reduce debris buildup.
- Perforations in the hood and side shields act as a "first filter." Anything that passes through will also clear the 10-fin-per-inch cooler cores.
STRUCTURES AND UNDERCARRIAGE
- Welded bulkheads with the boom resist torsional stress for unsurpassed durability. Booms, arms, and mainframes are so tough, they're warranted for three years or 10,000 hours.
- Reinforced resin thrust plates, grooved bushings, and thermal-coated bucket joints increase arm and boom lube intervals for 500 hours.
- Oil-impregnanted bushings enhance durability and extend grease intervals to 500 hours for the arm-and-boom joint and 100 hours for the bucket joint.

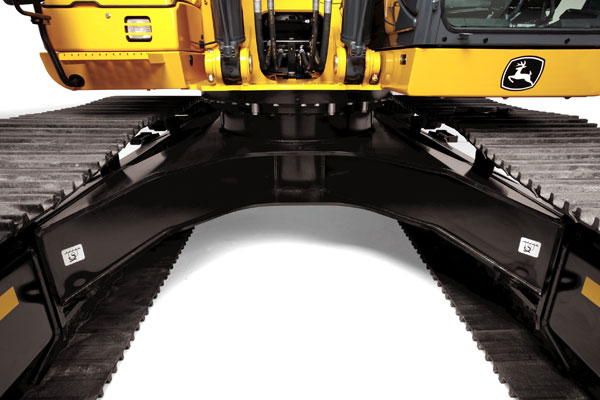

- Box-section track frames, thick-plate single-sheet mainframe, and large swing bearing deliver rock-solid durability.

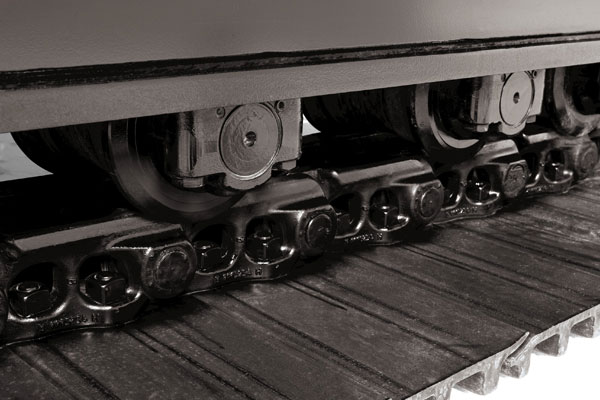

- With large idlers, rollers, and strutted links, the sealed and lubricated undercarriage delivers long and reliable performance.
- Reinforced D-channel side frames provide maximum cab and component protection.

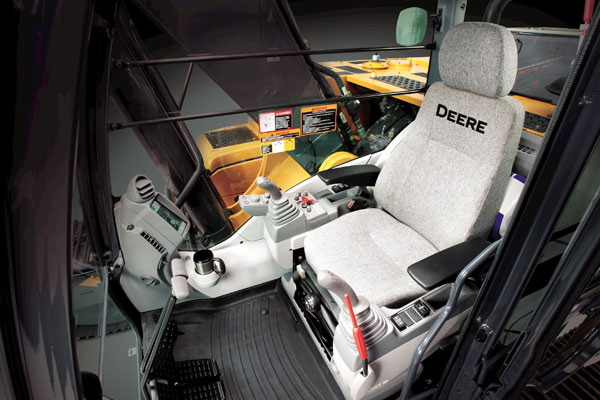

CAB AND MONITOR
- With increase visibility, a larger entryway, generous legroom, and more supportive high-back seat, the refined cab offers even more convnenience and comfort.
- Spacious cab is comfortable and noticeably quiet. Silicone-filled mounts effectively isolate operators from noise and vibration.
- LCD monitor tracks scheduled maintenance intervals and issues reminders. Should a problem arise, it provides diagnostic trouble codes to assist in troubleshooting.
- We've got your back with a sculpted mechanical-suspension high-back eat. Seat has 318mm of travel, sliding together or independent of the joystick control. For even more support and comfort, opt for the air-suspension heated seat.
- Ergonomically correct short-throw pilot levers provide smooth, predictable fingertip control with less movement or effort. Push buttons in the right lever allow fingertip control of auxiliary hydraulic flow for operating attachments.
- Wide expanse of front and side glass, narrow front cab posts, large overhead glass, and numerous mirrors provide virtually unobstructed all-around visbility. If you need to see more, choose the optional camera that displays the action behind on the monitor.

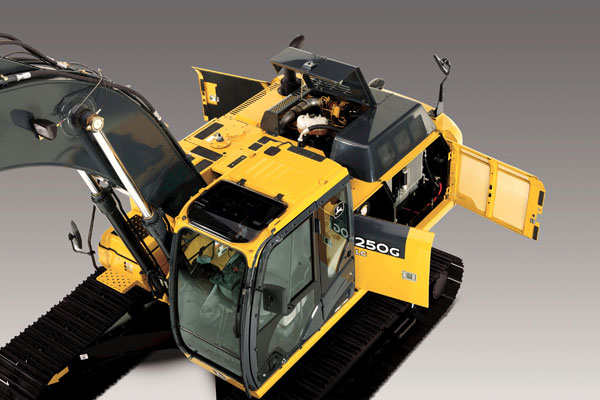

SERVICEABILITY
- Large, easy-to-open doors provide quick access to service items. Lube banks, filters, and checkpoints are grouped for added convenience.

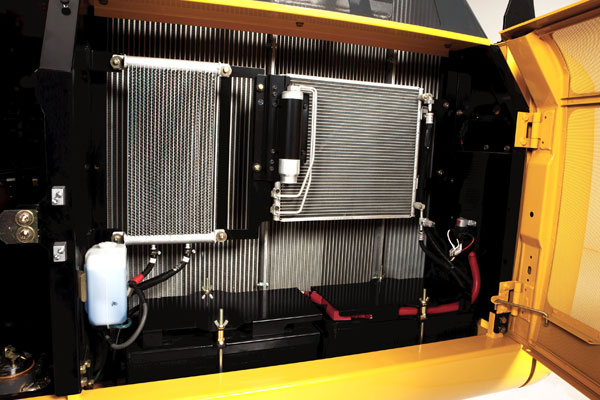

- Opening the left-side service door reveals clear access to the air filter, batteries, and coolers.
- Large steps and handrail provide safe, easy to access atop the house where a hinged, vented panel raises to provide access to the engine and engine oil dipstick.
- Vertical spin-on engine oil and fuel filters in the right read compartment allow ground-level servicing.
TELEMATICS
- Service ADVISOR Remote allows your dealer to update software, read diagnostic trouble codes, and record performance data remotely, reducing technician trips to the field (requires active JDLink subscription).
OPTIONS
- Multi track widths
- Multi arm lengths
- Variety of buckets
- Hydraulic fan reverser
- Chrome exhaust stack
- Engine coolant heater
- Severe duty fuel filter
- Auxiliary hydraulic lines
- Load-lowering control/anti-drift device
- Single pedal propel control
- Control pattern change valve
- "D" channel guard
- Material clamps
- Super-long fronts
- Air-suspension heated seats
- 2 Lights mounted on cab / one mounted on right side of boom
