Seeking big productivity in a mid-size package?
For those of you who said you'd like an even larger mid-size, there's the all-new 180G LC. Weighing nearly 2103 kg (4,632 lb.) more than its smaller 160G LC sibling, it also offers more reach, digging depth, lift capacity, and arm and bucket dig force. Its spacious and comfortable cab comes equipped with easy-to-navigate enhanced LCD monitor that let operators easily dial-in a wealth of machine info and functionality.
Rugged EPA Final Tier 4 (FT4)/EU Stage IV PowerTech™ diesel engines meet rigid emissions regulations, enabling you to work, wherever there's work — even in nonattainment areas. And of course, you'll enjoy typical John Deere smoothness, control, and operating ease. Why settle for anything less?
Specifications
| 180G LC |
| Rated Power | 128 hp @ 2200 rpm |
| Operating Weight | 45170 lb |
| Digging Depth | 259 in |
Features
KEY FEATURES
- EPA Final Tier 4 (FT4)/EU Stage IV PowerTech™ diesel engines meet rigid emission regulations
- Powerwise™ III hydraulic management system
- Hydraulically driven on-demand fans run only as fast or often as needed
- Great size for variety applications.
PRODUCTIVITY
- Powerwise™ III perfectly balances engine performance and hydraulic flow for predictable operation. Three productivity modes allow you to choose the digging style that fits the job. High-productivity delivers more power and faster hydraulic response to move more material. Power delivers a balance of power, speed, and fuel economy for normal operation. Economy limits top speed and helps save fuel.
- For work that requires extra finesse, the G-Series' short-throw low-effort controls, unmatched metering, and smooth multifunction operation give the precision you need.
- When digging gets tough, simply press the power-boost button on the right-hand control and muscle through.
- Auto-idle automatically reduces engine speed when hydraulics aren't in use. Auto-shutdown further preserves precious fuel.
- Standard boom/frame lights and cab/boom-mounted options provide illumination to extend your workday beyond daytime hours. Add optional cab lights, a right-hand boom light, or the underhood light package to further dispel the dark when needed.

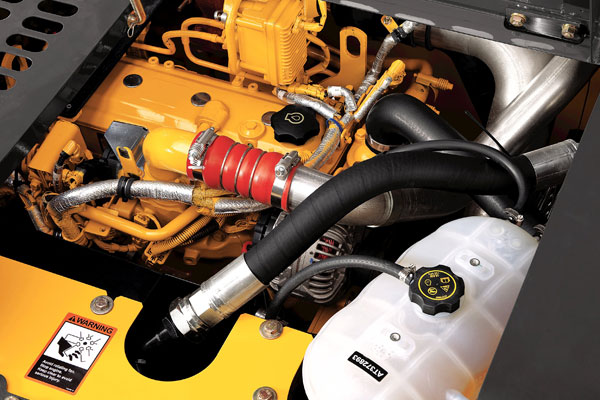

ENGINE AND COOLING
- To meet stringent EPA Final Tier 4 (FT4)/EU Stage IV standards, we built on our Interim Tier 4 (IT4)/Stage IIIB solution to deliver the best combination of performance, efficiency, and reliability without sacrificing power or torque. Our field-proven technology is simple, fluid efficient, fully integrated, and fully supported. It employs field-proven cooled exhaust gas recirculation (EGR), easy-to-maintain high-uptime exhaust filters, and selective catalytic reduction (SCR).
- Ash-service intervals for the diesel particulate filter (DPF) are condition based, with the machine notifying the operator before service is required. Typically, ash service is not necessary until the first engine overhaul, depending on machine application and maintenance practices. FT4/Stage IV components are warranted for 10,000 hours.
- Highly efficient hydraulically driven fans run only as fast as needed, reducing noise, fuel consumption, and operating costs. The cooling systems keep things running cool, even in high-trash environments and high altitudes. Reversing option automatically back-blows cooler cores to keep them clean.
STRUCTURES AND UNDERCARRIAGE
- A new hood design ensures optimal visibility to the sides and rear, even with the increased under-the-hood space requirements of EPA Final Tier 4 (FT4)/EU Stage IV components.
- A John Deere exclusive, three welded bulkheads within the boom resist torsional stress for unsurpassed durability. Booms, arms, and mainframes are so tough; they're warranted for three years or 10,000 hours.
- Upper-structure handrails provide three points of contact when accessing the engine compartment. Slip-resistant surfaces help improve stability.
- Tungsten-carbide coating creates an extremely wear-resistant surface to protect the all-important bucket-to-arm joint. Oil-impregnated bushings enhance durability and extend grease intervals to 500 hours for the arm-and-boom joint and 100 hours for the bucket joint.
- Thick-plate single-sheet mainframe, box-section track frames, and industry-exclusive double-seal swing bearing deliver rock-solid durability.
- With large idlers, rollers, and strutted links, the sealed and lubricated under-carriage delivers long and reliable performance.

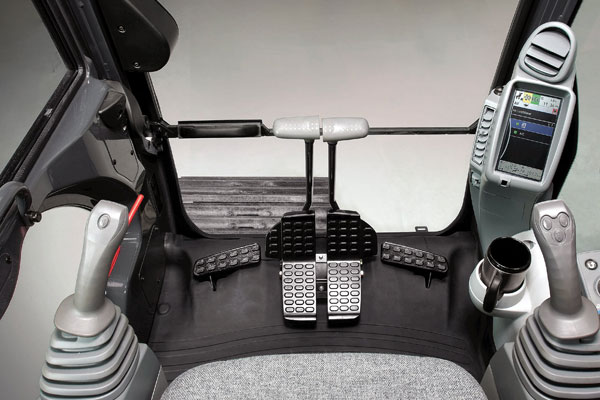

CAB COMFORT

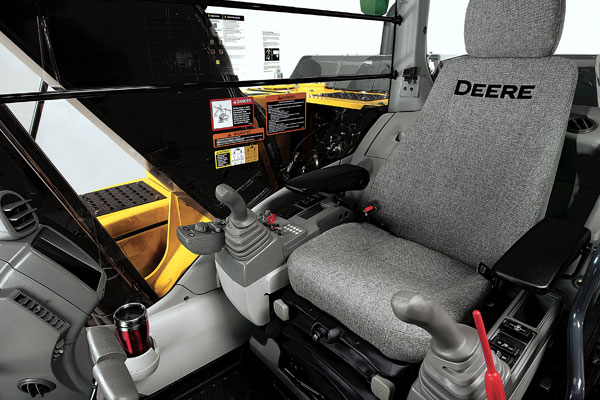

- We've got your back with a sculpted mechanical-suspension high-back seat. Seat has 318 mm (12½ in.) of travel, sliding together or independent of the joystick console. So it won't cramp an operator's style. For even more support and comfort, opt for the air-suspension heated seat.
- Ergonomically correct short-throw pilot levers provide smooth, predictable fingertip control with less movement or effort. Push buttons in the right lever allow predictable control of auxiliary hydraulic flow for operating attachments. Optional sliding switch provides proportional speed control, giving you full command at your fingertips.
- Multi-language LCD monitor and rotary dial provide intuitive access to a wealth of information and functions. Just turn and tap to select work mode, access operating info, check maintenance intervals, source diagnostic codes, adjust cab temperature, and tune the radio. Plus much more.
- Operators will also appreciate the quiet and spacious cab, virtually unobstructed all-around visibility, and numerous other amenities that provide everything your operators need to do their best work.
- Automatic, high-velocity bi-level climate-control system with automotive-style adjustable louvers helps keep the glass clear and the cab comfortable.
SERVICE AND UPTIME

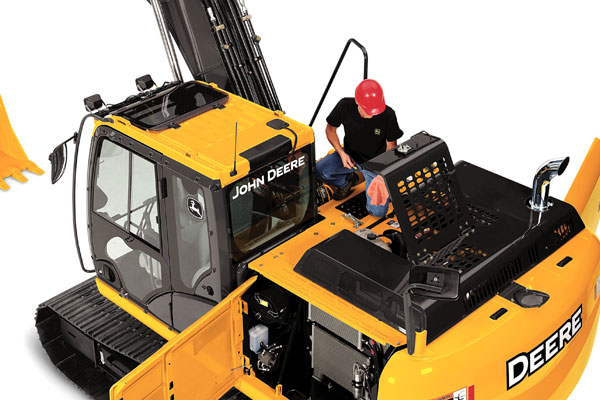

- Swing open the side panels and you'll discover many of the numerous ways this excavator can minimize maintenance, increase uptime, and reduce daily operating costs.
- Easy-to-read LCD monitor tracks scheduled maintenance intervals and issues reminders. Should a problem arise, it provides diagnostic information to help decrease downtime.
- Diesel exhaust fluid (DEF) can be conveniently filled when refueling due to its large and accessible tank. DEF overflow routes excess outside the machine to avoid paint damage.
- Large fuel tanks and 500- and 5,000-hour engine and hydraulic oil-service intervals decrease downtime for routine maintenance. Fluid-sample and remote diagnostic ports help speed preventative maintenance and troubleshooting.
OPTIONS
- Multiple track widths
- Multiple arm lengths
- Variety of buckets
- Attachment quick-couplers
- Hydraulic fan reverser
- Chrome exhaust stack
- Engine coolant heater
- Severe-duty fuel filter
- Auxiliary hydraulic lines
- Load-lowering control
- Single-pedal propel control
- Control pattern change valve
- Material clamps
- Air-suspension heated seats
- Protection screens for cab front, rear,and side
- Window vandal-protection covers
- Two lights mounted on cab / One mountedon right side of boom
