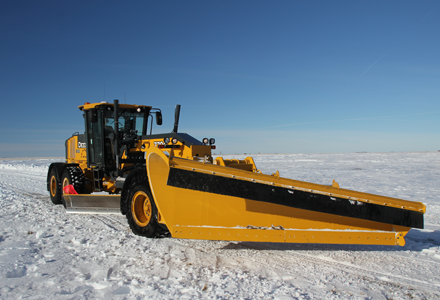

12' Moldboard- Cast Skid Shoes

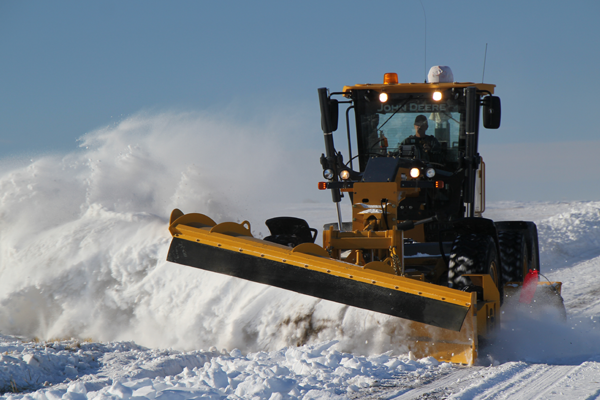

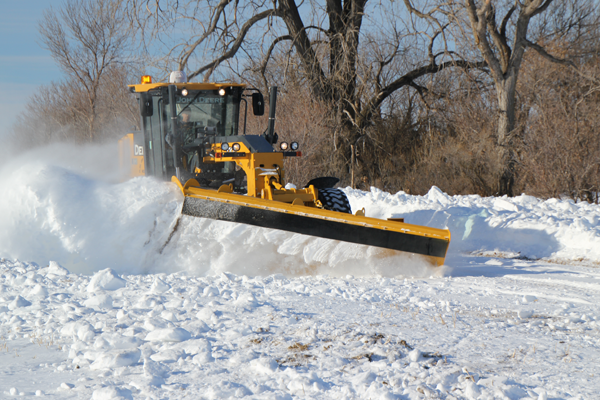

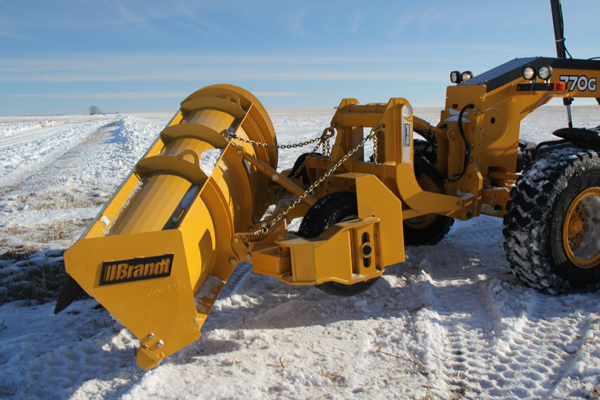

Brandt One Way Plows are effective snow clearing attachments for trouble free, high speed plowing.
Specifications
| 12' Moldboard- Cast Skid Shoes |
| Weight | 3200 lbs |
| Length | 138 in |
| Width | 139 in |
| Height | 59 in |
Features
- Moldboard is designed with a tight curvature and large open ended discharge for effective snow rolling and casting characteristics.
- Heavy duty Plow Frame structure is built to last and withstand severe winter conditions.

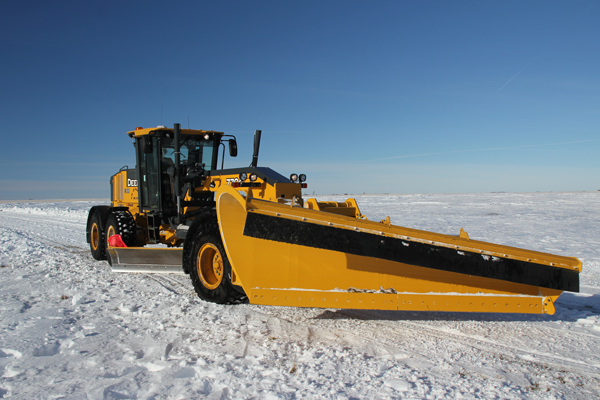

- A 12ft Moldboard angled at 35 degrees effectively clears a 10 foot path to not only ensure the total width of the grader tires are covered but delivers unsurpassed productivity and snow casting characteristics.

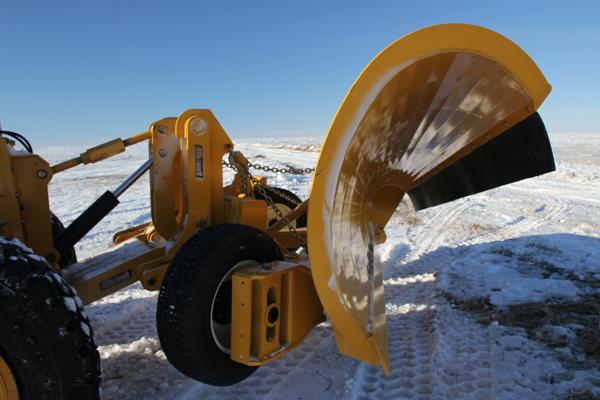

- Plow can be outfitted with either two wheels or two skid shoes, which are both adjustable to suit specific plowing needs and maximize cutting edge life.
- An adjustable spring trip mechanism allows the Moldboard to easily skip over obstacles and then spring back to the road to avoid any serious damage to the plow.

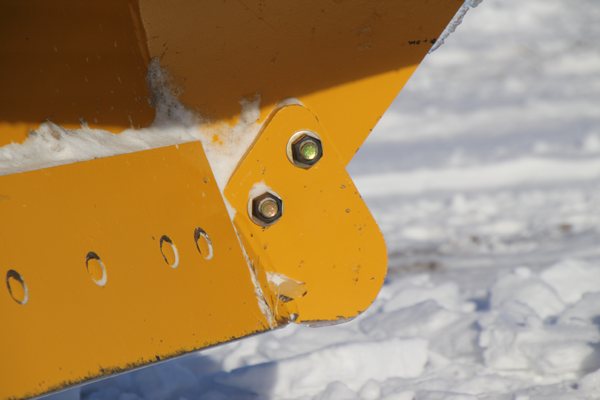

- A high strength, abrasive resistant nose shoe is the first point of contact to cut through hard packed snow and get the snow rolling in and out of the plow. This nose shoe can also be used as a curb runner to easily remove snow alongside a curb.

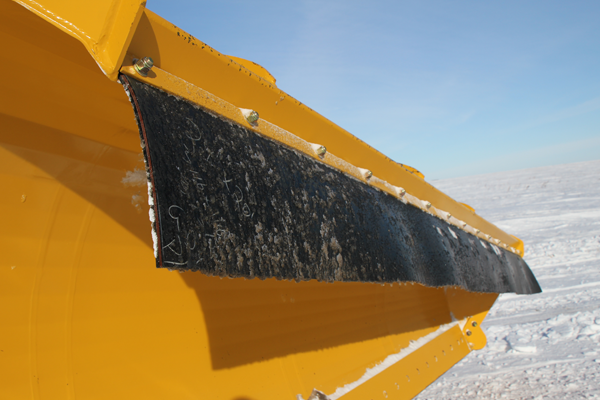

- Full length rubber deflector confines snow within the Moldboard profile and limits snow �blow-by' for improved visibility.
- Manual (standard) or Hydraulic (option) pitch control allows the operator to easily pitch the moldboard 7.5 degrees fore and aft to adjust for variable snow conditions and applications.

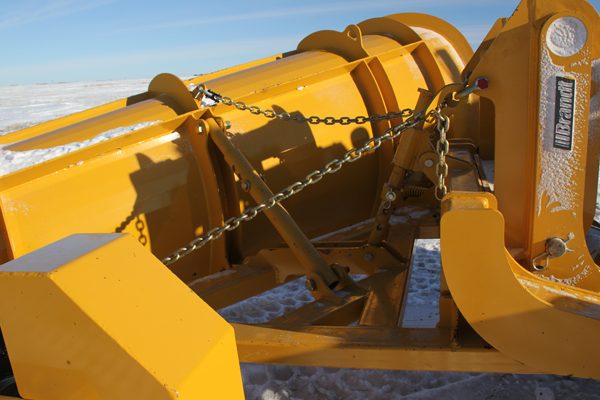

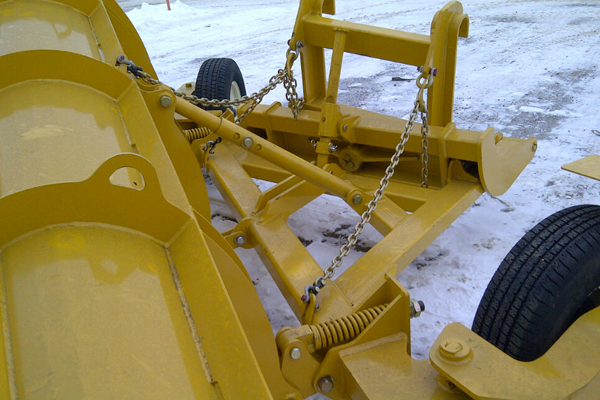

- Heavy duty lift chains and shackles attach to the lug frame to support the entire blade group, and allow unlimited adjustability for plowing and transport positions.
- The HD Plow Frame center pivot allows 20 degrees of oscillation to follow uneven road conditions during plowing.
- The Plow Frame vertical float can be locked out to provide positive down pressure to more effectively plow in hard packed snow conditions.
- A �shear-pin' design is used to protect the Plow should conditions exceed limitations.
