Our Most Powerful Vac Yet.

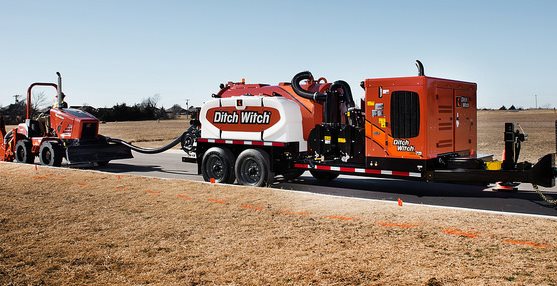

The most powerful vacuum excavator in our lineup, the HX75 features a 74-hp Kubota® Tier 4 Final engine and an industry-leading 1,300-cfm blower. It’s ideal for microtrenching, slot trenching and other large-scale excavation, potholing and cleanup tasks. The customer-driven design provides superior filtration and air flow, and offers unmatched versatility with a range of debris tank, freshwater tank and trailer configurations. The low-profile machine is compact for easy navigation on urban jobsites, without compromising power or performance.
Specifications
| HX75 |
| Net Power | 74.3 hp |
| Displacement | 1315 cfm |
Features
Proven Productivity
- The HX75 is equipped with a 74-hp (55.2-kW) Kubota Tier 4 Final engine for boosted power and performance on any large-scale underground construction jobs.
- The machine provides 20 percent more fuel capacity than its predecessor for improved productivity and fewer refueling stops during the workday.
- New with the HX vacuum excavation line, a patent-pending make/break seal design optimizes air flow for increased efficiency, and simplified plumbing.
- Advanced sound reducing technology creates minimal disturbance in noise-sensitive areas.
- An auto-clutching feature disengages the water pump when water is not in use, allowing full system power to the blower for improved productivity.
- A now standard, reverse-flow feature allows quick and easy spoil offloads for improved productivity.
- A standard, cyclonic three-stage filtration system cleans the air before it reaches critical components. It is comprised of the debris tank, cyclonic filter, and 0.5-micron washable vacuum filter - offering the industry’s best filtration for maximum protection of key components.
Added Versatility

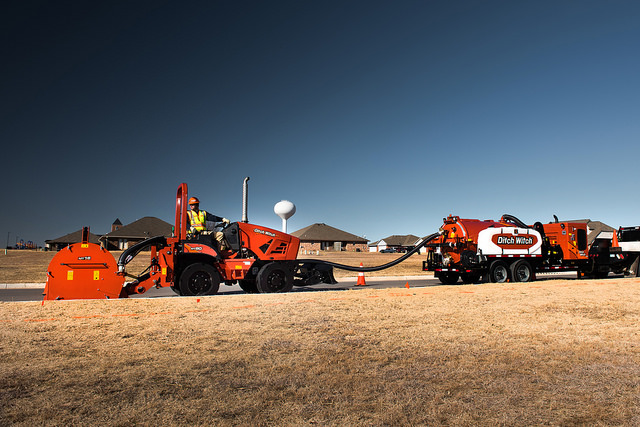

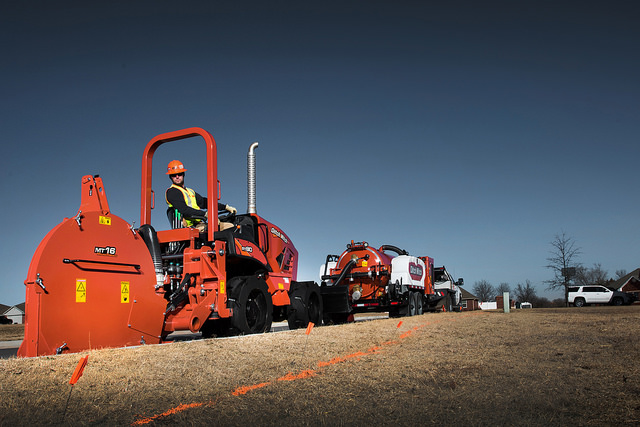

- With the best-in-class 1,315-cfm (37.2m3/min) blower, the large, yet low-profile HX75 is ideal for microtrenching and slot trenching applications as well as potholing, large cleanup tasks and traditional excavation jobs.
- The HX75 is available with an 800-gal (3028-L) debris tank to meet the requirements of any size job.
- 800-gallon configurations include:
- A standard configuration equipped with a 200-gal freshwater tank and a 20K GVWR trailer.
- A heavy configuration equipped with a 400-gal freshwater tank and a 24K GVWR trailer.
- All trailer configurations are NATM compliant and are offered with an optional toolbox for extra storage.
- An optional jib boom is available on all HX75 configurations and has exclusive dual articulation, providing the widest range of motion in the industry, as well as a hose restraint, which helps control the unit’s hose while working.
- An optional power boom, available on all HX75 configurations (excluding the 800-gal standard configuration), features an advanced design that reduces manual labor for the operator. The boom is hydraulically powered with a 330-degree rotation and includes a self-locking gear, acting as a boom brake, to restrain motion of the boom and maintain its desired position.
- The machine can easily be configured to accommodate operator controls on either the left or the right side to meet each contactor’s individual needs.
