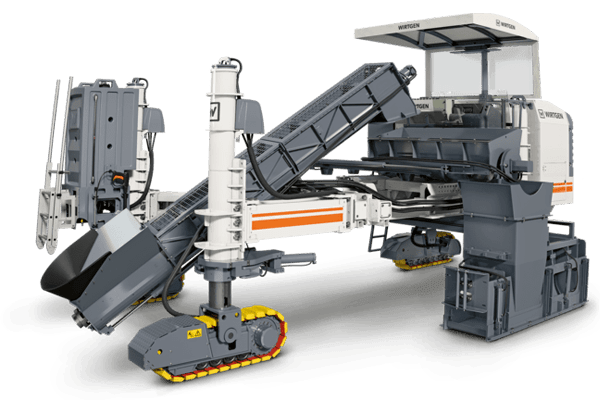

The Wirtgen SP 25i slipform paver is equipped with sophisticated features, customer-specific solutions, and innovative machine technologies to ensure top performance at the jobsite. This compact machine has a variety of offset profiles to achieve perfection in paving narrow roads, agricultural roads, bicycle paths, channels, and gutters of different sizes in inset applications. The paver’s modular design permits it to be fully tailored for various applications, allowing components to be retrofitted, even years later. More features like the flexible positioning track units, spreading auger extension, and the use of up to ten electric or hydraulic vibrators guarantee high-quality concrete paving.
Specifications
| SP 25i |
| Rated Power | 154 hp @ rpm |
| Operating Weight | 29982 lb |
| Working Width | 144 in |
Features
Slipform Paving Offset
- Material is transported effortlessly into the slipform via a swivel-mounted conveyor belt or a swivel-mounted auger conveyor. Different conveyor belt lengths and foldable versions are available as well as auger conveyor variations to ensure versatility at the jobsite.
- Whether equipped with a conveyor belt or auger, all of the settings such as conveyor speed, inclination angle, or position can be adjusted at the touch of a button.
Slipform Paving Inset
- Concrete can be deposited in the front of the slipform paver or fed in through the side via a belt conveyor or side feeder, delivering versatility at the jobsite. The concrete is then distributed evenly across the full paving width by a spreading auger or spreading plow.
- Built-in electrical or hydraulic vibrators ensure precise, homogenous compaction of the concrete surface to the specified thickness and width while the slipform paver travels forward.
- A dowel bar inserter can be added to incorporate bars into the concrete as specified, parallel to the paver’s direction of travel.
- Central tie bars or side tie bars can be inserted perpendicular to the concrete pavement. The oscillating beam then scrapes the surface across the roadway while a super smoother smooths the concrete surface to finish.
Leveling Technology
- Wirtgen’s leveling technology adjusts height, depth, and pitch for extremely accurate results. The system compares the actual values to predefined target values and adjusts the deviations proportionately; guaranteeing outstanding leveling results while significantly reducing your operator’s workload.
AutoPilot 2.0
- AutoPilot 2.0 is an innovative and economical system designed to automatically pave a variety of offset and inset profiles, such as concrete safety barriers on highways or curbs for traffic islands. The system eliminates time-consuming surveying operations, the installation and removal of stringline, or the need to prepare a geodetic data model.
- Digital data is created directly on the jobsite in a short period of time, including complex profile configurations, allowing operators to work efficiently.
- The automatic 3D control system is available for: SP 15, SP 15i, SP 25, SP 25i models.
