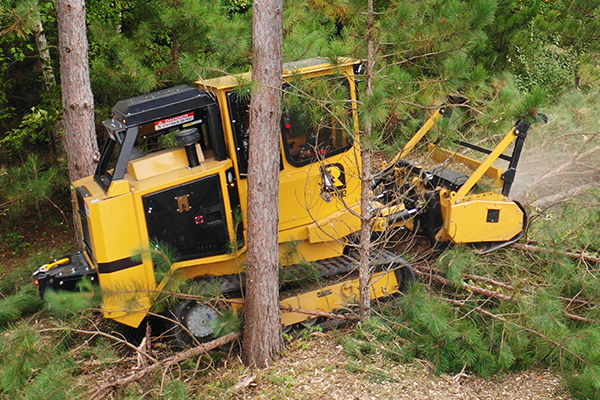

Rayco’s C120 Forestry Mulcher is the answer if you’re looking for a purpose-built mulcher but need the versatility of rubber tracks. It rides on a 17.7-inch (450 mm) wide steel-imbedded rubber track. A reliable, 120-HP (89.4-kW) Cummins diesel engine supplies power, while Rayco’s exclusive Super Flow, closed-loop hydrostatic system delivers mulching power not found in ordinary Compact Track Loaders. Purpose-built for mulching, the C120 features a heavy-duty rear door, hydraulic winch, and Rayco’s exclusive elevated cooling design, which places engine radiators in both the rear of the engine compartment and in the limbriser for maximum cooling performance in the harshest climates. The cab is certified ROPS/OPS/FOPS with escape hatches in the roof and rear window.
Specifications
| C120R Forestry Mulcher |
| Horsepower | 120 hp |
| Hydraulic Output | 52 gpm |
| Weight | 15900 lbs |
Features
HYDRAULIC CAB TILT
Hydraulic cab tilt provides easy access to critical components.
COMFORTABLE CAB
Large, comfortable cabin with side entry.
HYDRAULIC REAR WINCH
Hydraulic rear winch with 12,000 lb (5,443 kg) capacity.
MULCHER HEAD
Choose between a Predator or Denis Cimaf Mulching Head. The Predator Mulching Head features a 71.5-inch (182-cm) cutting width and utilizes 36 carbide cutting teeth. The Denis Cimaf Mulching Head features a 74" cutting width and utilizes 27 sharpenable Planar cutting teeth.
OTHER FEATURES
High/Low flow auxiliary hydraulic circuit for attachments, elevated cooling system for hydraulics and A/C, reversing fans (engine and limbriser), high/low travel speeds with optional 7 mph (11.3 km/h) FAST track.Related
