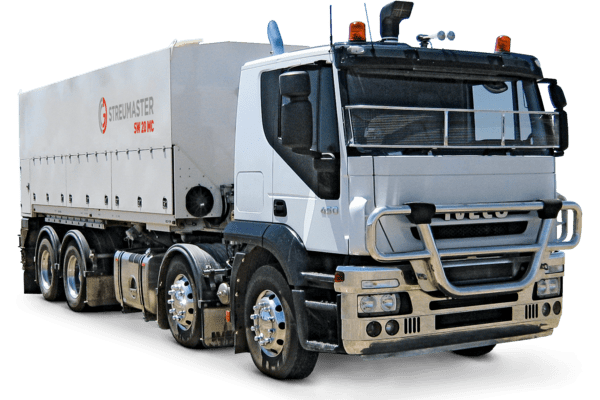

The SW 20 MC binding agent spreader from Wirtgen is designed for the precise and computerized spreading of binding agents. The fully automatic metering of the spreading quantity is separate from the travel speed and self-cleaning metering feeders, ensuring that the binding agent is spread uniformly and precisely. A pneumatic filling device is located on both sides of the machine to ensure that filling is fast and cost-effective, while controllable partial spreading widths deliver high-spreading performance. This machine is perfectly suited for professional off-road and on-road use as a mobile binding agent spreader unit.
Specifications
| SW 20 MC |
| Container Capacity |
20 m³ |
| Working Width |
7 pi 9 po |
| Spreading Quantity |
1 to 60 L / m² |
Features
Ergonomically Optimized Flexible Container Design
- A free-swinging relief cover is located about the conveyor floor to prevent material from building up in the container, resulting in less downtime.
- Different container sizes for different spreading requirements are available, delivering versatility at the jobsite.
- This machine is equipped with container inspection ports with a safety switch.
Highly Efficient Discharge System
- Large filling connectors allow for quick filling of the container and pneumatic filling devices on both sides of the machine enable operators to work productively.
- Equipped with a feed chute with two sensor-controlled traverse augers for optimum, efficient distribution of the binder to be spread.
Highest Spreading Accuracy
- Three separately controlled partial widths allow for a variety of low or high-volume applications.
- Equipped with self-cleaning metering feeders resulting in less downtime.
Convenient High-Precision Computer Control
- A user-friendly control terminal results in minimal training time for operators.
- The convenient intelligent speed detection allows for continuous adjustment of the speed rate, ensuring operators maintain a productive workflow.
- A sensor-controlled chain conveyor optimizes the material feed to the spreading unit while the integrated filling level indicator lets operators know when to refill the container.
