Won't back down. Or let you down.

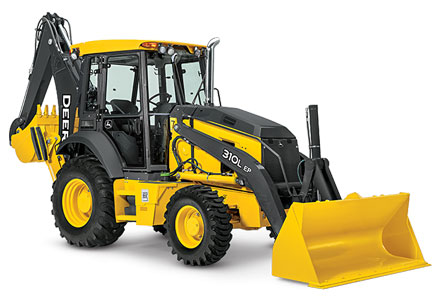

A 310L EP that meets Interim Tier 4 (IT4) standards without after-treatment components and diesel particulate filters (DPFs) is just the beginning. It's an excellent choice for large fleets and rental yards. Don't let the 310L EP's competitive price fool you. There's nothing light duty about it. Plus, it comes equipped, not stripped.
Specifications
| 310L EP |
| Rated Power | 70 hp @ 1900 rpm |
| Digging Depth | 168 in |
| Lift Capacity | 6833 lbs |
Features
KEY FEATURES
- 310L EP has an Interim Tier 4/Stage IIIB-certified 4.5L John Deere PowerTech™ E diesel that needs no aftertreatment technology to maintain.
- John Deere PowerShift™ standard transmission provides on-the-go gear changes; ride control option smoothes moves over rough terrain.
- Mechanical-Front-Wheel Drive (MFWD) limited-slip front axle provides true four-wheel drive, enabling maximum productivity on the most challenging jobsites.
- Advanced multi-language monitor displays onboard diagnostics through JDLink™, for quick remote troubleshooting and maximum uptime.
- Redesigned pilot towers provide more legroom when transitioning between loader and backhoe modes.
ENGINE
- The 310L EP PowerTech IT4/Stage IIIB emission-certified engine requires no aftertreatment.
- Save fuel with standard economy mode can be configured separately between loader and backhoe functions. For example, activate economy mode for backhoe functions while retaining full power for loader functions — a Deere exclusive. This helps maximize fuel usage in lighter-work applications with minimal effect on machine performance.
- Suction-type cooling fan is standard; optional viscous variable-rate (temperature-controlled) fan boosts rated engine power to 73 hp.
PRODUCTIVITY
- True four-wheel drive on command. Optional limited-slip mechanical-front-wheel drive delivers superior traction in any ground condition. Engage momentary mechanical-front-wheel drive “on the fly” with the touch of a button on the new loader control.
- PowerShift™ transmission provides on-the-go clutchless gear changes, for the operator.
- With ride control activated, front loader hydraulic cylinders act as a shock absorber, smoothing travel over rough terrain, helping full loads reach their destination, and reducing operator fatigue.
- LED lighting kit includes choice of LED spot- or floodlights. For enhanced visibility when you need to extend your workday.
CAB COMFORT
- Redesigned pilot towers provide more legroom and additional space for transitioning between loader and backhoe operation.
- L-Series Backhoes are loaded with creature comforts, including efficient HVAC system, adjustable mechanical or air-suspension seat, and optional premium radio with Bluetooth®, auxiliary input, and XM Satellite Radio™ capability.
TAKE CONTROL
- New “palm-on-top” loader-control grip is even more comfortable and easy to use. Control of clutch disconnect, transmission quick-shift, auxiliary proportional roller, and momentary front-wheel-drive is at your fingertips.
- Fingertip electrohydraulic (EH) control of redesigned pilot levers provides even easier operation of backhoe functions, including the horn and selective flow.
- Exterior lights, wipers, and turn signals are now more conveniently located on the multifunction lever on the steering column — just like the family SUV — helping operators keep their eyes on the job at hand.
UPTIME
- State-of-the-art multi-language monitor clearly displays machine diagnostics. Operators can program a multitude of time-specific functions such as auto shutdown and auto-idle quickly and easily.
- The most advanced onboard-diagnostics technology in the industry is standard on all L-Series Backhoes. The exclusive John Deere WorkSight™ suite of telematic solutions includes JDLink™ Ultimate with real-time machine monitoring and remote diagnostics to help increase uptime while lowering operating costs.
- Our rugged multipurpose bucket has been reinforced with thicker plates and stronger cylinder mountings for longer life.
- Choose from a variety of factory-installed tire options, for the traction, exceptional performance, and long service life your specific application requires.
- Enabled through the monitor, differential-lock protection prevents engagement at high travel speeds and the resulting wear and tear on axle components.
- Standard maintenance-free batteries reduce periodic servicing, improve cold-starting reliability, and lengthen battery life.
- L-Series Backhoes come factory-filled with Hydrau™ premium all-season, anti-wear hydraulic oil specifically designed for construction equipment. Or for cold weather, opt for Hydrau™ XR, which offers all-season protection from –40 to 40 degree celsius.
- Machine-security system with touchpad passcode helps prevent unauthorized operation.
MAINTENANCE
- Same-side ground-level service points help speed daily checks and fills. Other commonsense features such as quick-change filters, extended service intervals, simple-to-read sight gauges, and easy-access grease zerks help increase uptime and lower daily operating costs.
- Vertical spin-on engine, transmission, and hydraulic filters and quick-release fuel filters allow fast, clean changes. Standard heavy-duty transmission oil filter increases reliability.
- Hinged, stacked-assembly coolers tilt away from the radiator for convenient core cleanout.
