Pack a Big Punch.

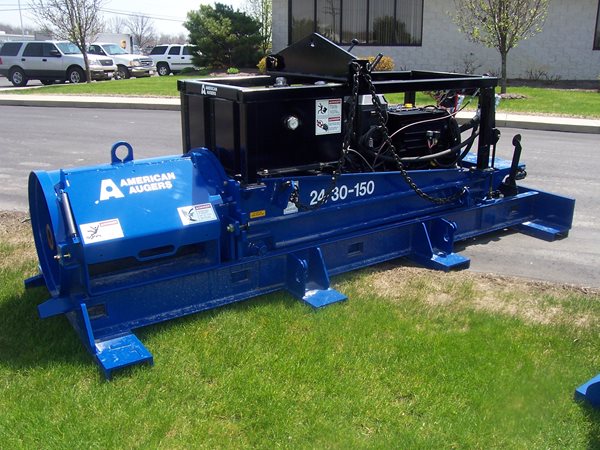

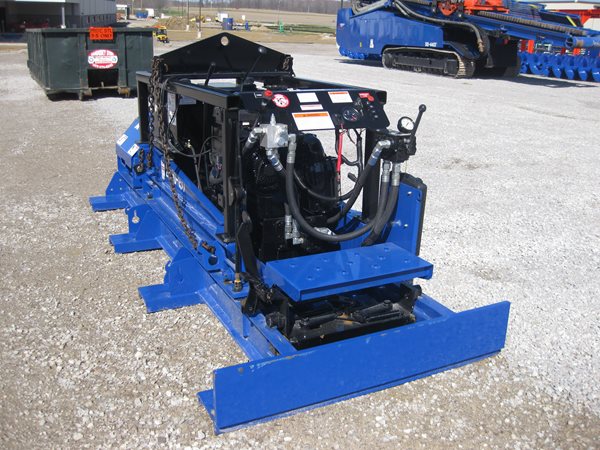

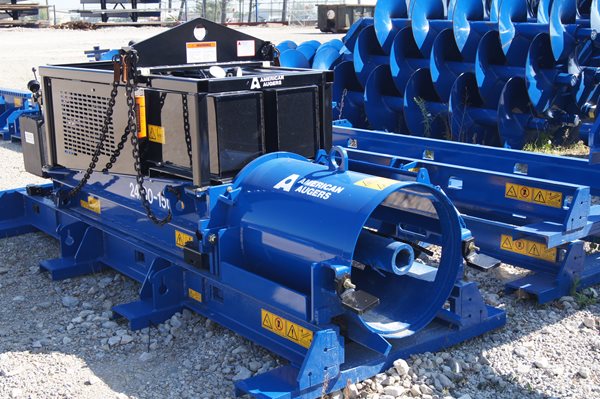

The lightweight 24/30-150 punches above its weight class. It utilizes high-volume hydraulic pumps for an impressive 150,000lb maximum forward thrust and 23,376ft lbs of output torque. Packing all that power into a compact frame means that you can take on a wider range of boring jobs while getting them done faster. And, this unit’s low centerline and wide stance stabilize the machine, giving you the knockout performance your operation counts on.
Specifications
| 24/30-150 |
| Net Power | 48.8 hp |
| Length | 136 in |
| Width | 36 in |
| Height | 60 in |
Features
Productivity
- High-volume hydraulic pump delivers up to 23gpm to three four-inch cylinders for 150,000lbs of maximum forward thrust.
- Maximum working torque of 23,376ft lbs delivers superior power for adverse conditions.
- High-volume hydraulic generates up to 23gpm to three 4” cylinders for 150,000lbs of maximum forward thrust.
- Semi-automatic push bar securely locks the track dogs for a more solid push.
- 4” to 30” casing diameter ensures you have a wide working range for a variety of tasks.
Reliability
- Low centerline and wide stance maximize the stability of the machine.
- Upgraded gauge system gives the operator easy access to key information with an improved engine tachometer, engine warning light, and hydraulic thrust pressure reading.
Unmatched Safety
- Gravity-activated spoil door deflects thrown debris from the spoil chamber.
- Emergency shutdown switches are easily accessible on the operator’s station and on the operator’s tethered switch.
