R5 OTM POWER UNIT

Overview Features Specs Gallery Resources

The most rugged and adaptable railcar hauler on Earth.

Brandt R5 OTM Power Units deliver highway-capable railcar hauling paired with industry-leading versatility. Perform a wide range of tasks with ease, including railcar transport, maintenance of way, revenue service, and emergency response.

Talk to a Specialist


Protect Your Assets

Safety is priority for the R5. Innovative features ensure a secure environment for the operator.

Adapt
With Ease

Purpose-built versatility on and off the road maximizes performance and efficiency.

Maximize
Uptime

Designed for reliability and serviceability, this beast will outperform in any condition.

Safety First

  • Switch between road and rail in under 3 minutes for maximum roadway efficiency and safety.

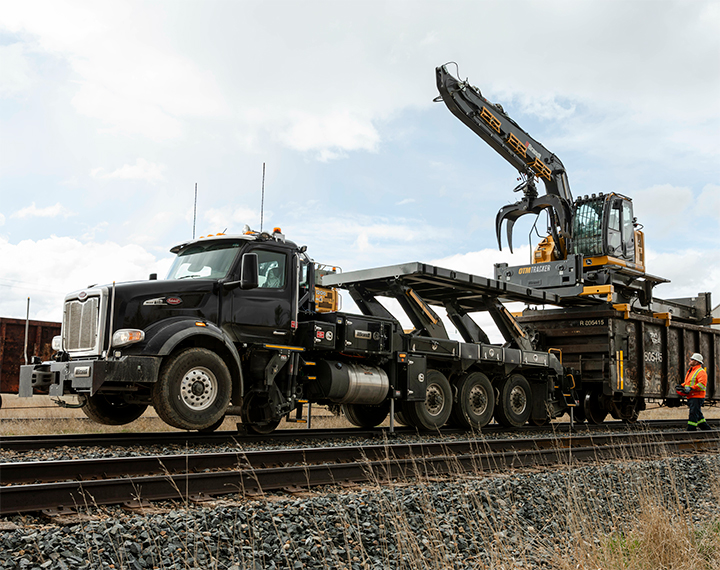

  • Lift deck safely hoists the 40,000 lb OTM Tracker for seamless transition onto a railcar gondola.

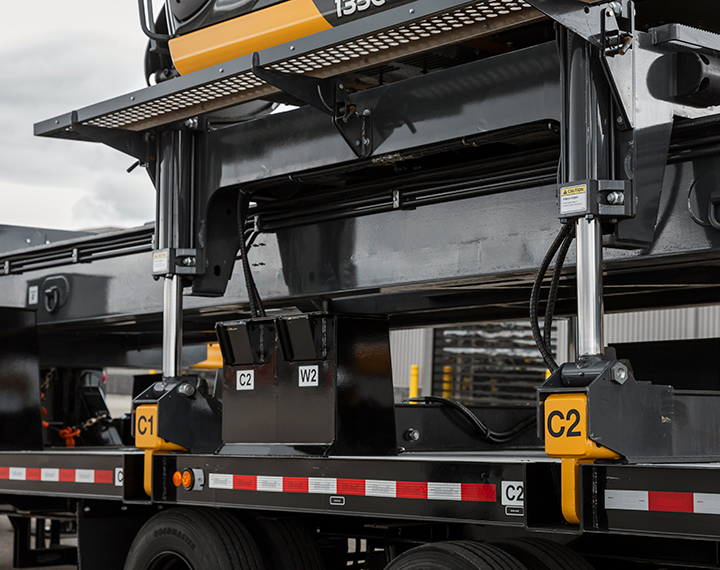

  • Stabilizer clamps and anchoring side pockets on the trailer and lift deck ensure safe transitions.

Increased Productivity

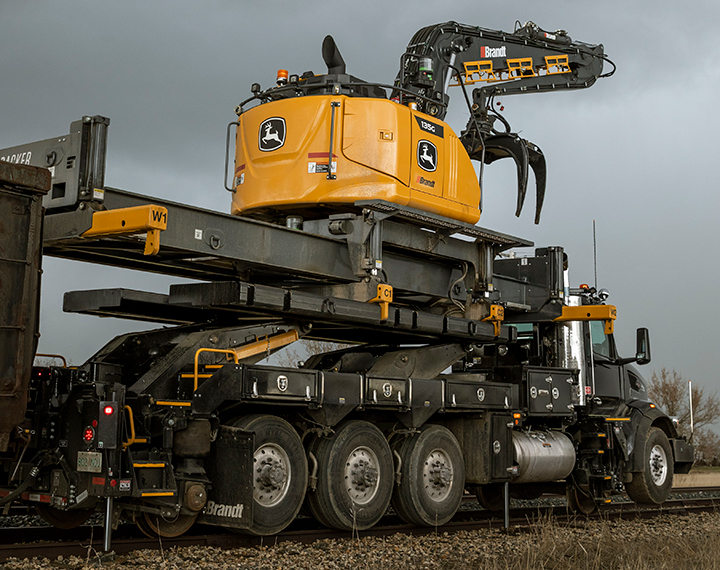

  • Only road-to-rail mobile unit that transfers OTMs onto rail gondolas directly from the truck deck.

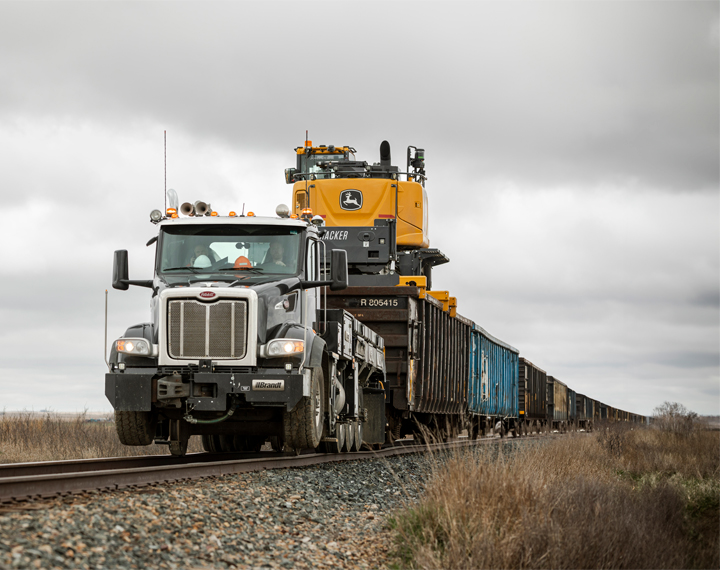

  • The R5 delivers 51,000 lb of tractive effort, capable of pulling up to 3 million lbs on rails.
  • Moves at highway speeds of up to 65 mph and on-rail speeds of 30 mph, including 25 mph in reverse.

Optimized Operations

  • Improved serviceability with greater maintenance point access results in reduced servicing time.
  • Improved real-time feedback provides additional data points, enabling operators to make better decisions.
  • The electrical and air hose routing has been simplified, with less hardware to reduce potential failure points.

Unmatched tractive efforts

  • Tractive efforts sustained on steeper grades and in wider ranges of weather conditions.

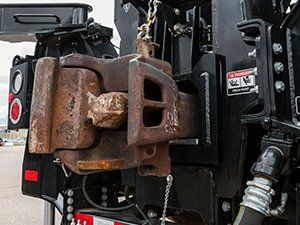

  • Height adjustable rear shelf coupler transferring weight from the railcar to the R5.
  • The traction control feature provides 6 preset points increasing / decreasing drive axles to hi-rail.
  • Non-torque reactive suspension converting the drive axles power into greater tractive efforts.
Is there something we can help you with?   Talk to a Specialist

Features

Heavy-duty Hauling

Off-road transmission, tridem drive axles, and the non-torque reactive suspension deliver power and torque while performing highway speeds of up to 65 mph and on-rail speeds of 30 mph and 25 mph in reverse.

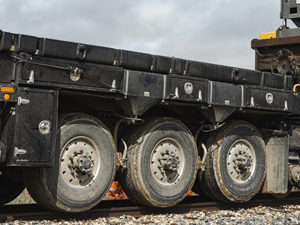

Effortless Adaptability

Tractive effort is controlled at the push of a button to suit changing track conditions by adjusting the shelf coupler and weight distribution between rail and drive wheels.

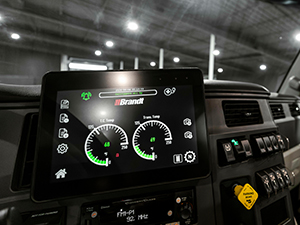

Easily Available Operator Data

Configurable system information is safely presented to the operator via a large 10″ touchscreen display alongside other critical truck information. All system information is readily available for maximum efficiency.

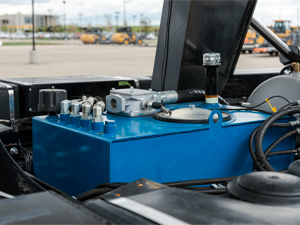

Protect From the Cold

Optional hydraulic tank heater for cold weather improves functionality and protects sensitive hydraulics from damage.

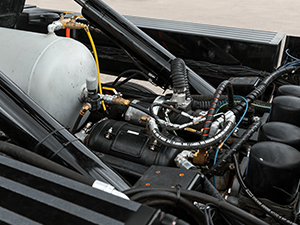

Easier to Maintain

The transmission, hydraulics, and air compressor cooler are assembled on a single structure, so you can tilt the machine out of the way for easier cleaning and have great service access.

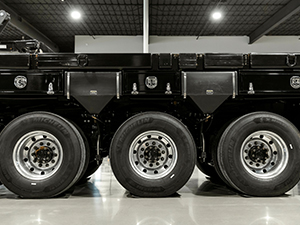

Enhanced Traction

Traction management has 100% duty cycles, air knives, and sanders with continuous aeration to prevent material buildup. Twenty-four new ballast plates located behind the axles increase traction when pushing railcars from the front coupler.

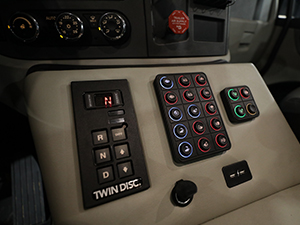

Intuitive Controls

The switch panels have large intuitive icons with a colour interface to indicate function status, including lockouts if a unit or function is not available.

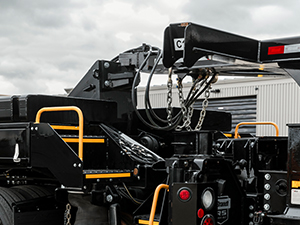

Simple and Safe Hitch

Trailer hitch lift locking mechanism is powered by air spring pots, minimizing latching steps and improving safety.

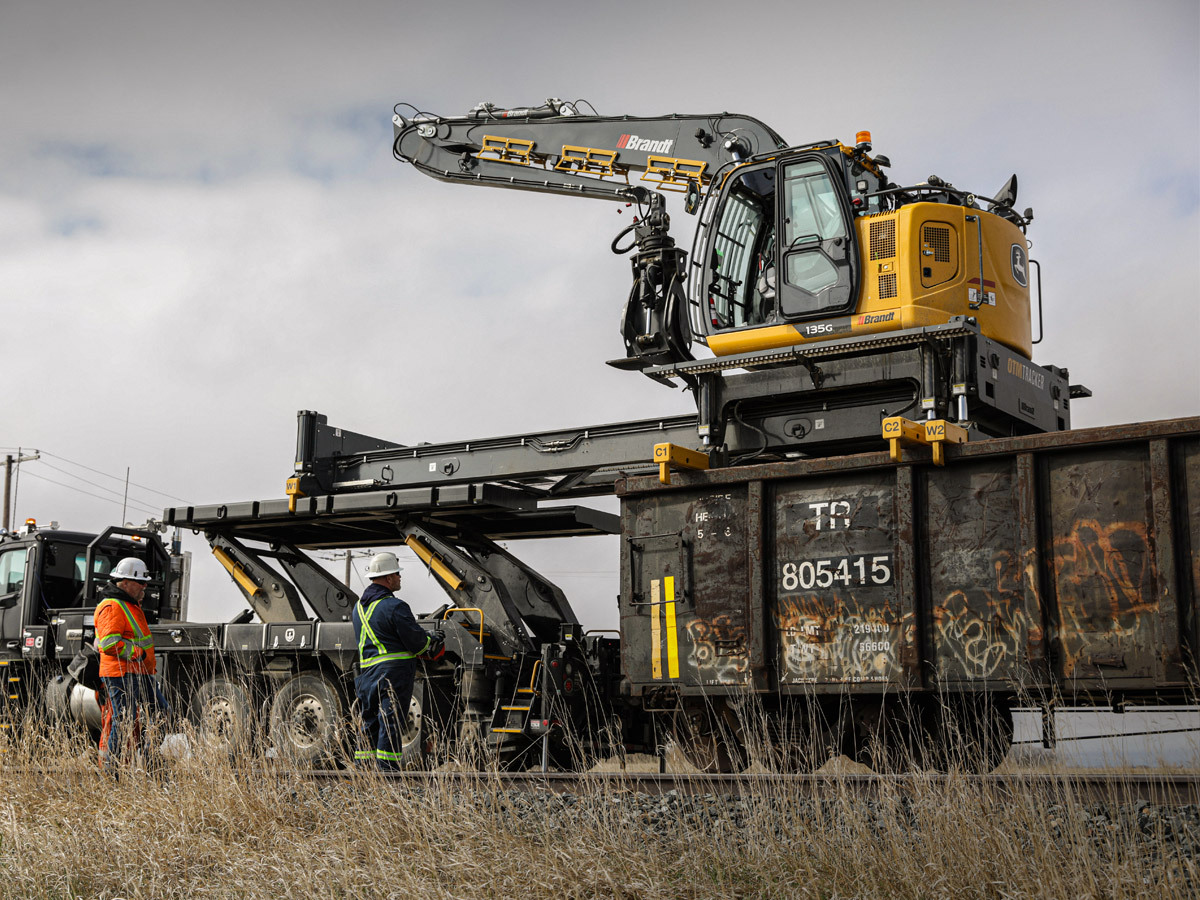

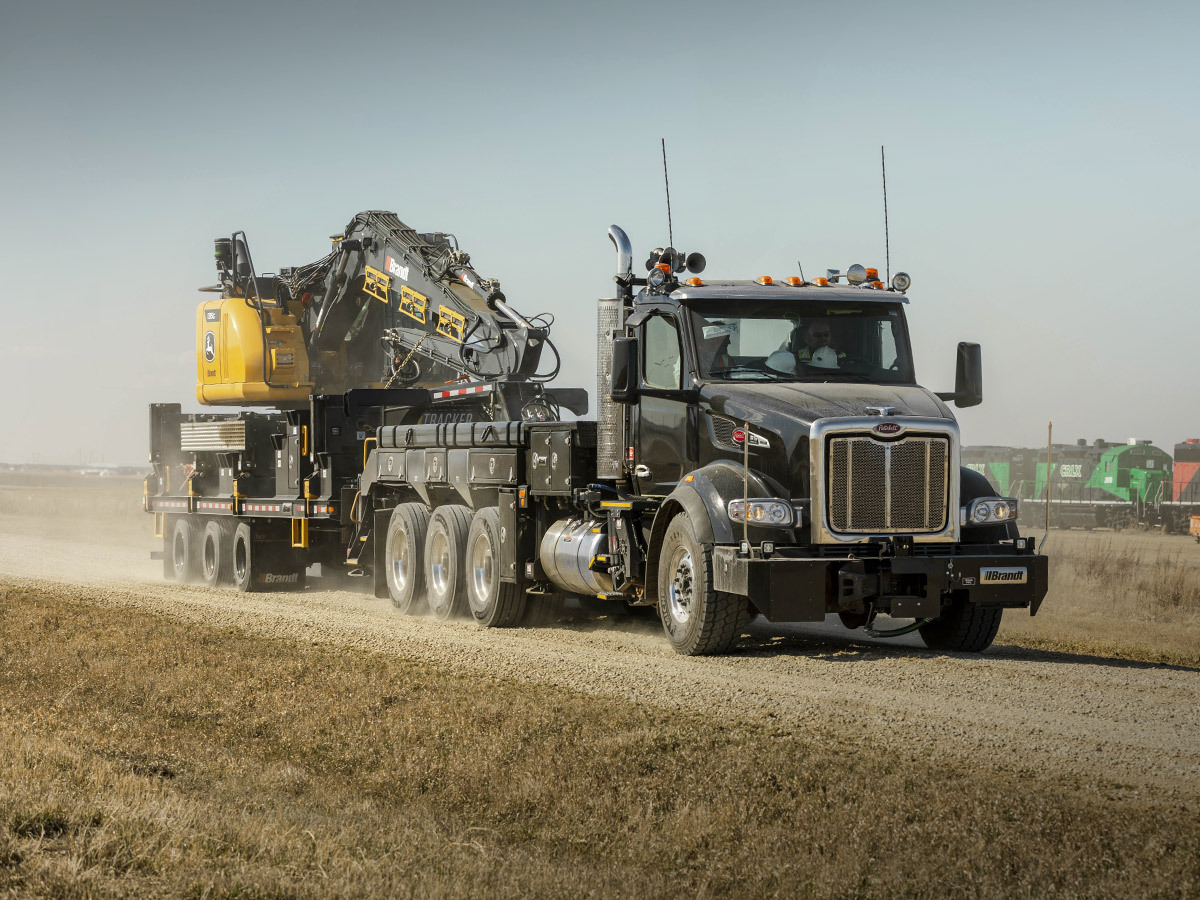

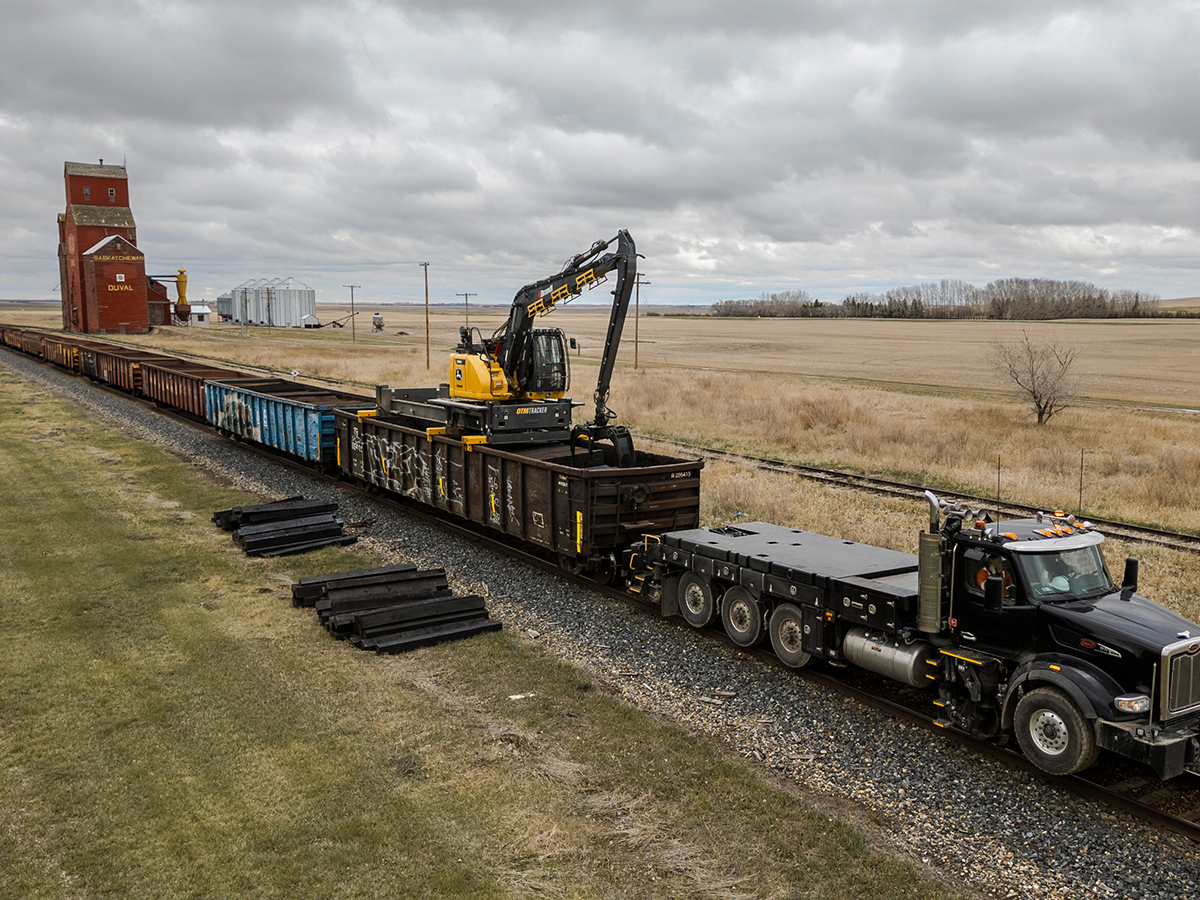

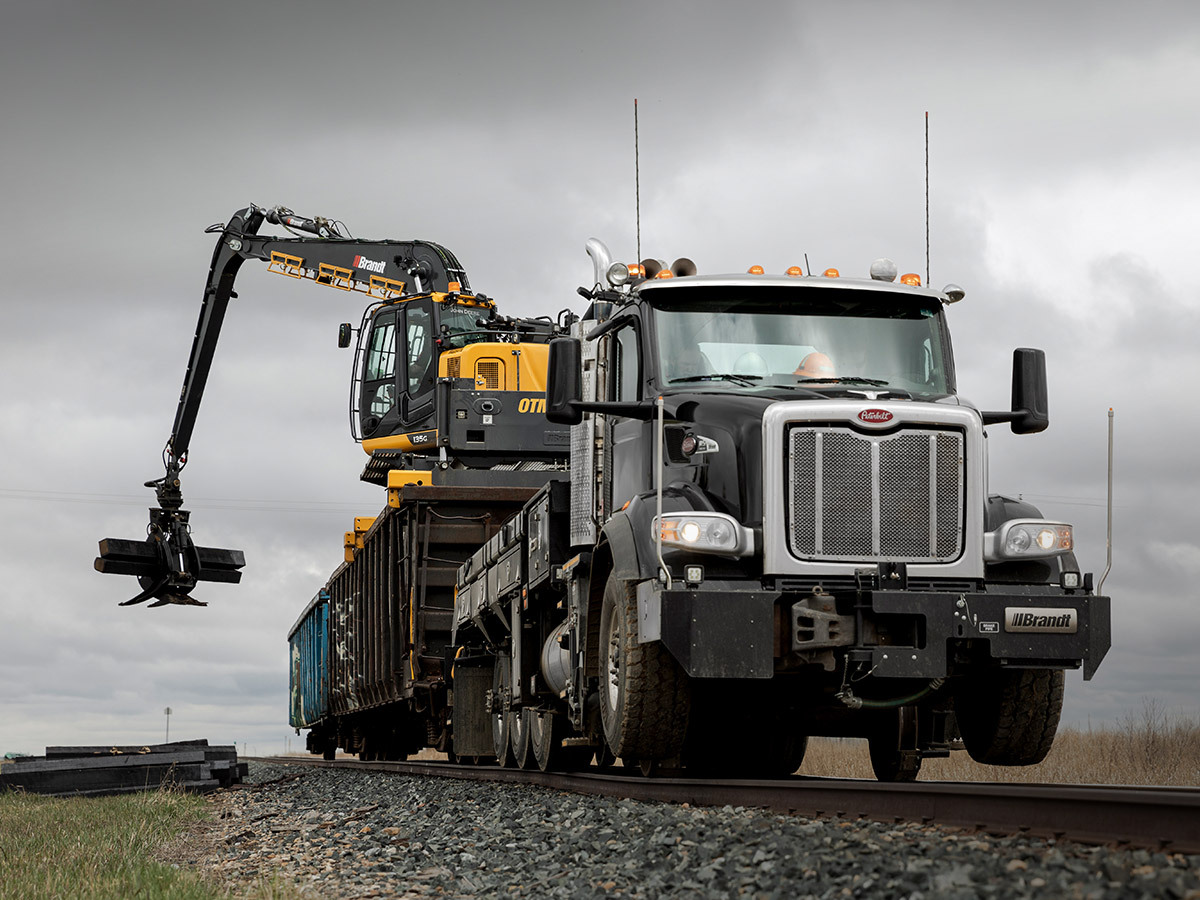

OTM Tracker Configuration

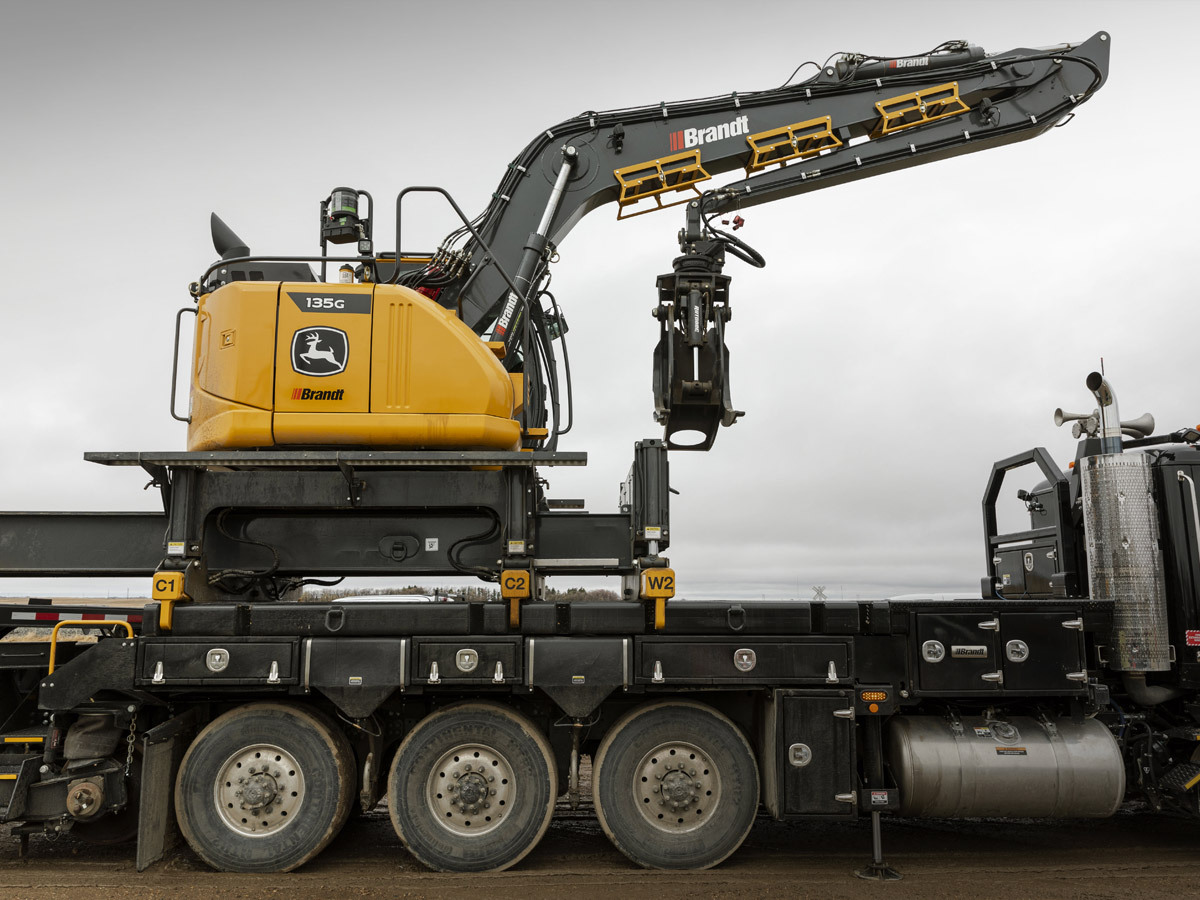

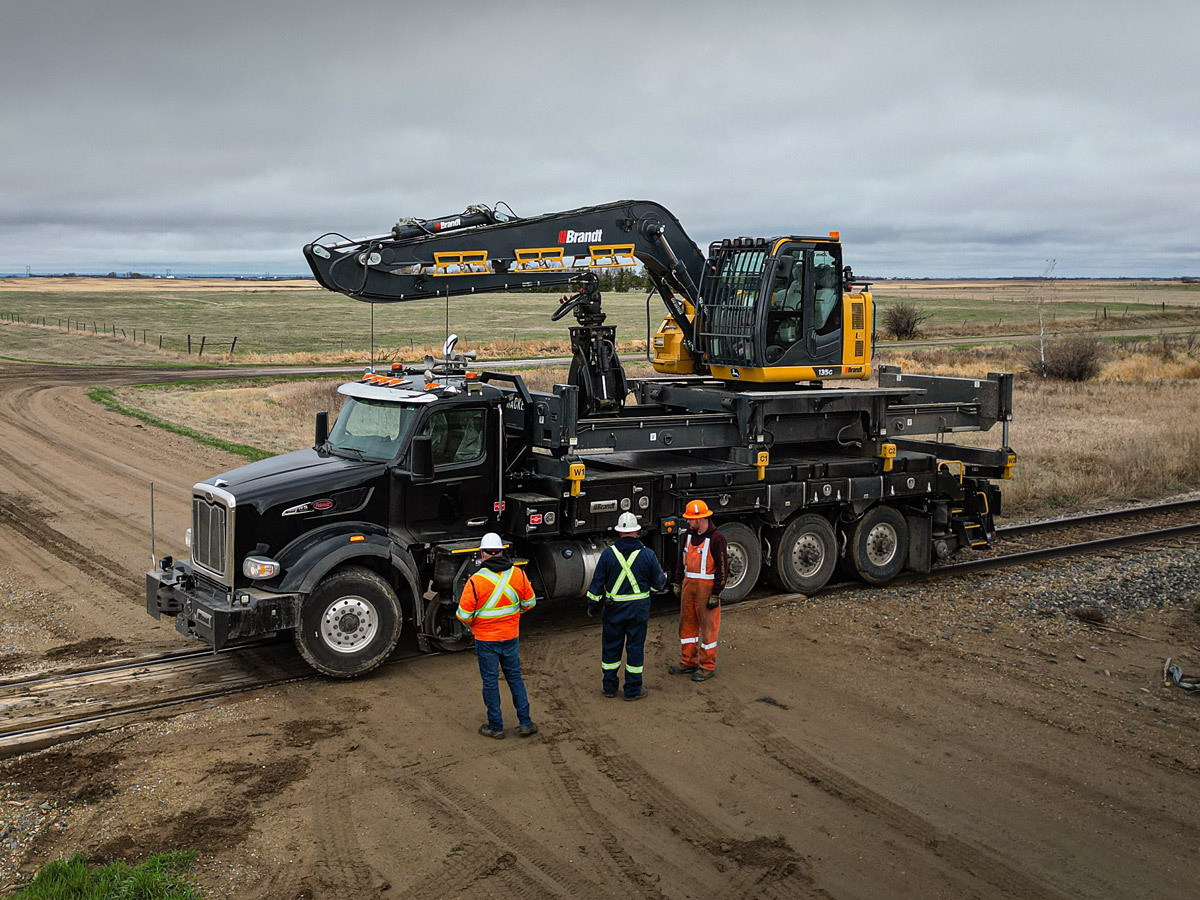

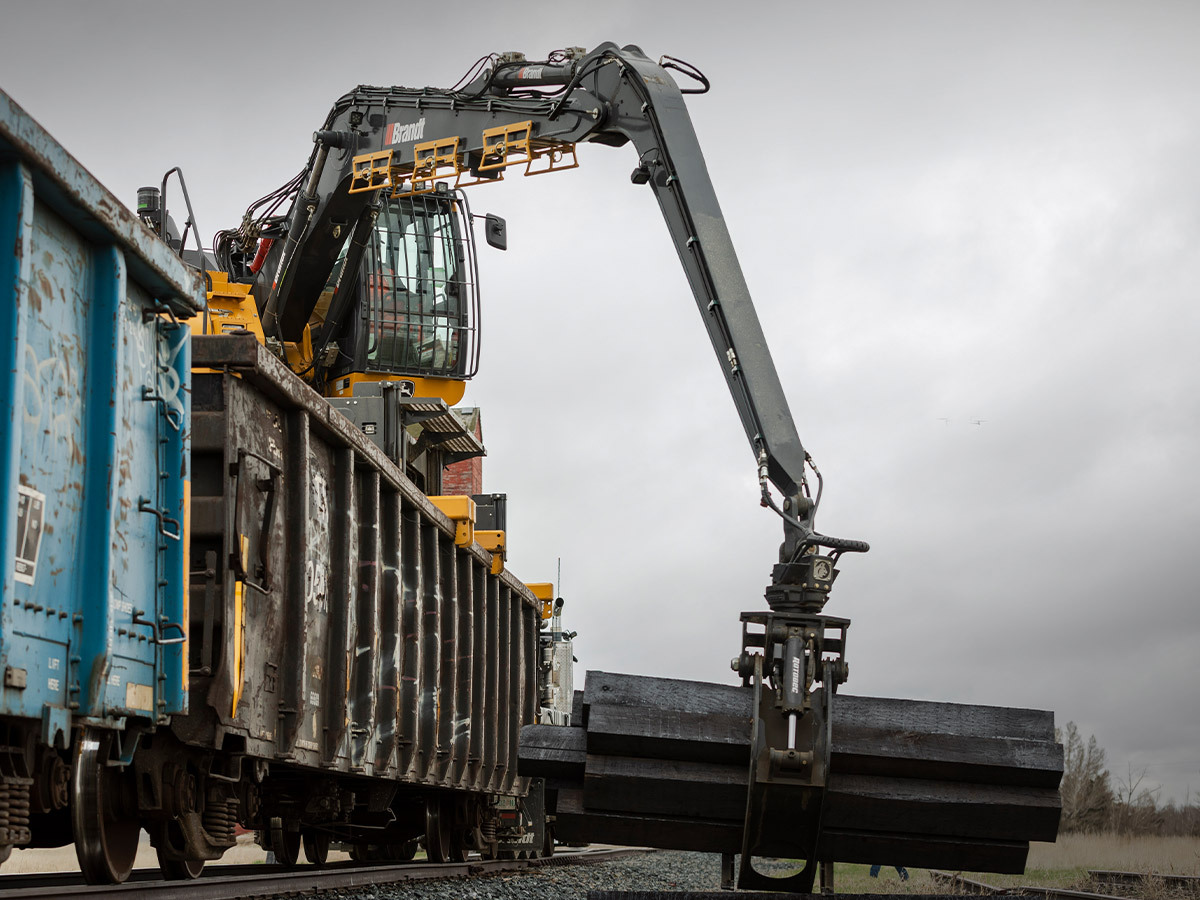

The OTM Tracker model powers the OTM Tracker system, a highly productive and safe material handling systems for tracks. The OTM Tracker is hauled by the R5 Power Unit on the highway and loads on to rail cars at a crossing with the R5’s lift deck. It can take on various high-production MOW material handling jobs, such as ties and crossing planks, with a continuous swing bypass grapple. The OTM Tracker with a 48” magnet and 15 kW generator can manage tie plates, rails, and other OTM materials.


Explore OTM Tracker

Specifications


  • R5 OTM

  • R5 Power Unit GVWR (Duals)

    • 89,000 lbs (40,370 kg)

  • R5 Power Unit GVWR (Singles)

    • 72,000 lbs (32,660 kg)

  • R5 Power Unit GVW

    • 61,090 lbs (27,710 kg)

  • Lift Deck Capacity

    • 40,000 lb

  • Deck Lift Height

    • 68 1/4"
