DUMP TRAILERS

Overview Features Specs Gallery Resources

Work Ready™ Brandt dump trailers are purpose-built to last.

Brandt dump trailers are designed with the dual purpose of hauling compact construction equipment and moving everything and anything in between effortlessly. A premium asset that no longer stay parked two thirds of the day so you can get the job that await done seamlessly with less.

View Specs  Find a Dealer


Easier To Operate

These trailers are built for fast, effortless loading so you can start working sooner.

Increased Safety

Stay safe at the jobsite with key features that maximize operator protection.

Easier To Own

Multiple trim level packages and customization options are available to tailor your trailer for specific hauling tasks.

Convenient Gate Features

  • The performance model has a 2-way spreader gate with barn door plus slide out ramps.
  • Maximize hauling equipment and material with a heavy-duty, spring-assisted, width-adjustable integrated gate and ramps on premium models for the safest gate to load and unload equipment.
  • Brandt gates are constructed with HD keeper pins and latch systems, ensuring a reliable hookup.

Durable Box Design

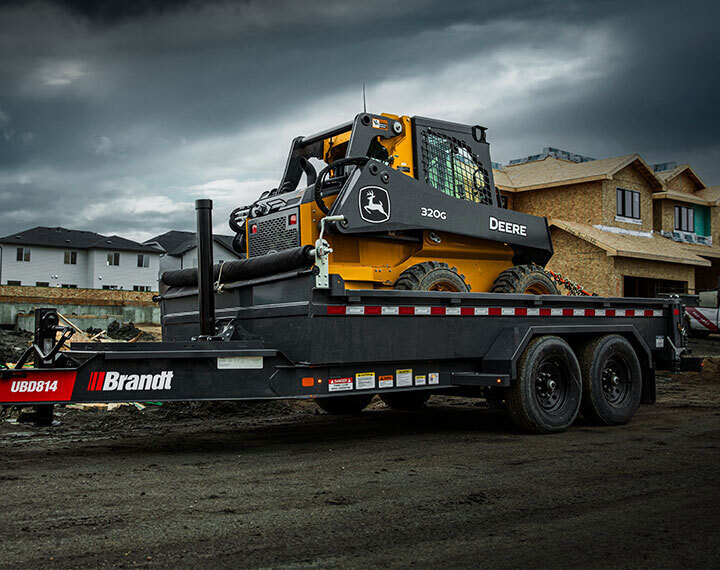

  • The 14' and 16' box lengths optimally fit and balance the weight of compact construction equipment.
  • Available in two box styles with Max Body™ models offering more capacity and optimized for equipment.
  • The box is built with durable 10-gauge steel with only one center seam, reducing debris buildup.

Long-Lasting Structure

  • The HSS tube frame ensures torsional stiffness when traveling with a load, extending trailer life.
  • Forward self-adjusting brakes enhance control and safety while minimizing maintenance costs.

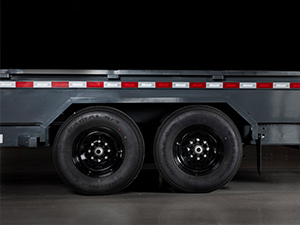

  • Available torsion axles or spring suspension in tandem and tri-axle models deliver a smooth ride.

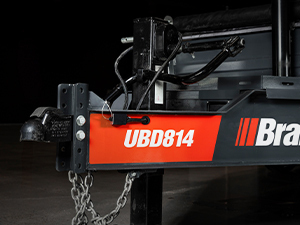

  • Bolt-on key components (including fenders, jacklegs, and couplers) are easy to replace and minimize downtime through more efficient maintenance.

Features

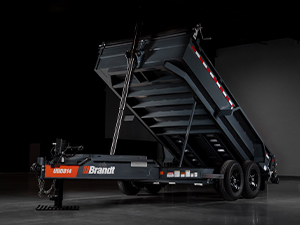

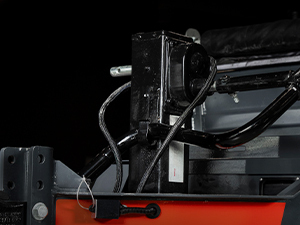

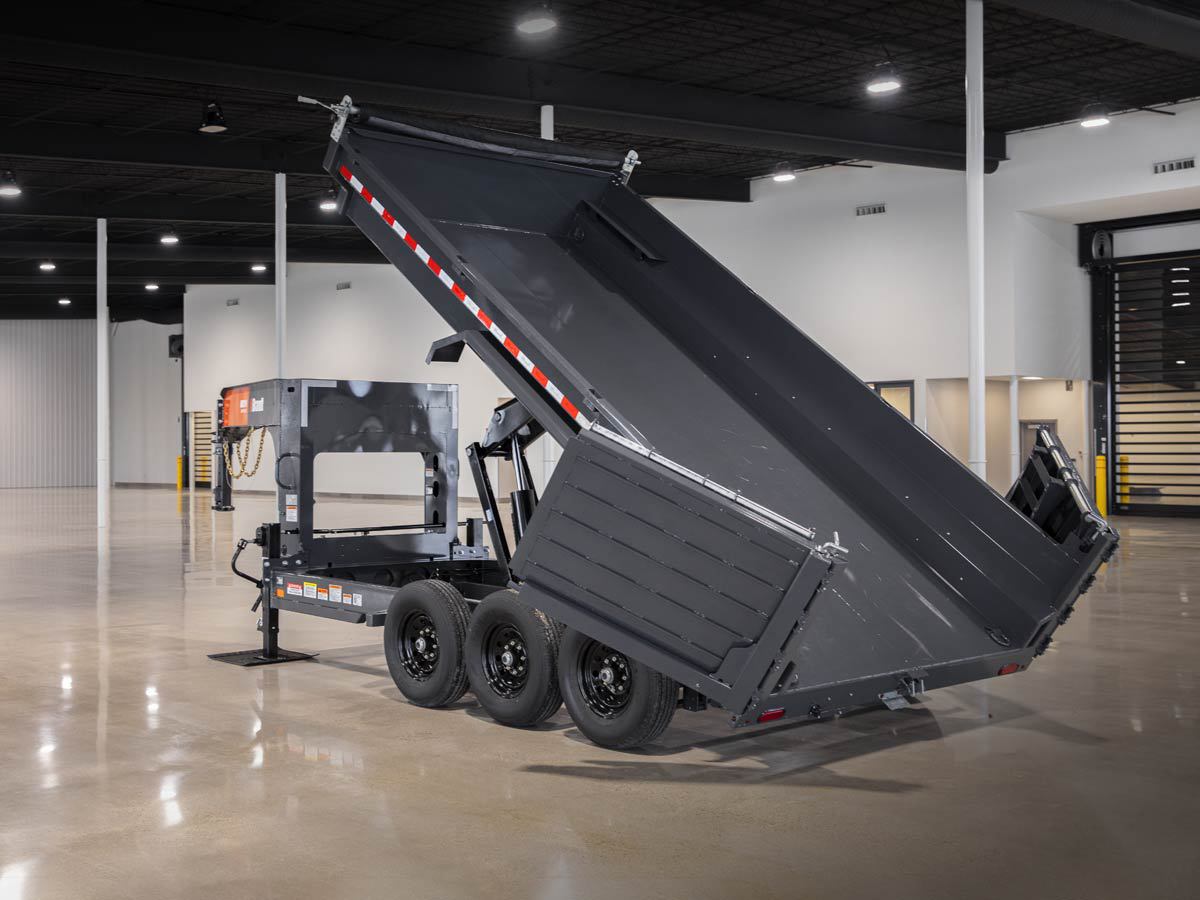

Scissor-Lift Hoist

A 3-way hydraulic power unit enables operators to lift the trailer into power up, power down, or gravity down use with the push of a button for effortless dumping or loading.

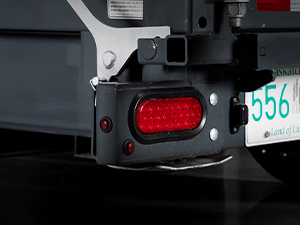

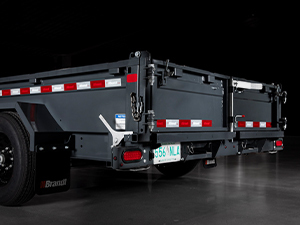

LED Lighting

Tier 1 LED lights with polycarbonate lenses, sealed connectors, and epoxy-encapsulated electronics deliver significantly more protection than any other trailers in the industry.

Premium Wiring

Braided loom wiring harness with sealed weatherpack connections meet the same rigorous standards of wires found on heavy-duty construction equipment, ensuring long-lasting protect

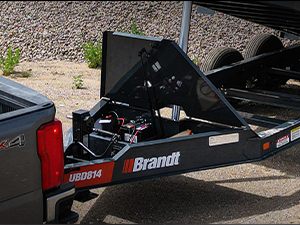

Enclosed Toolbox

Included storage space with gas shock assisted lift lid and a weatherproof enclosure to store important documents.

Is there something we can help you with?   Talk to a Specialist

Multiple Configurations

Brandt delivers different trim levels so you can tailor your trailer for your exact operational needs.

Performance Model

  • Scissor lift: Power-Up, Power-Down, & Gravity-Down.
  • Straight wall and max body box – 82 ″ between fenders & 97″ over fenders.
  • 2-way Spreader Gate
    • Spreading mode
    • Barn door mode

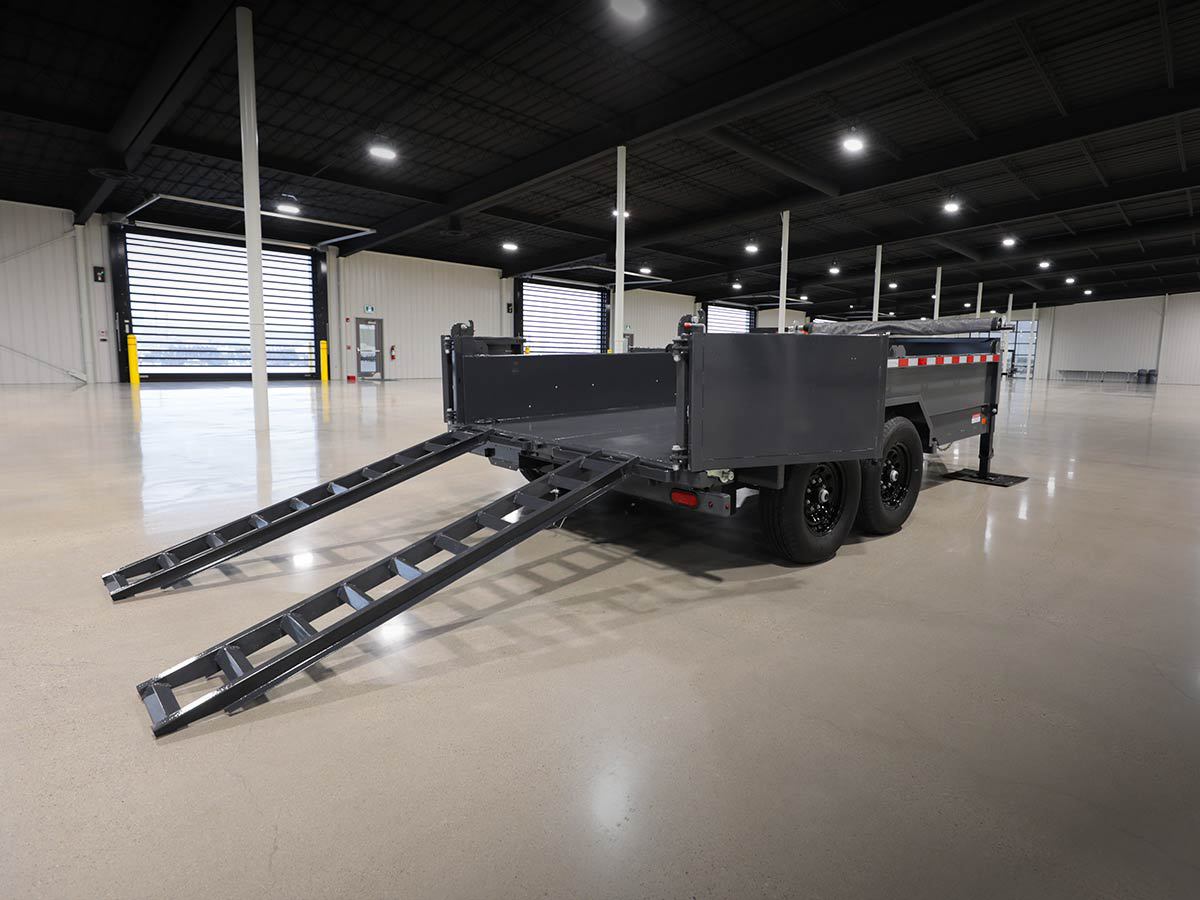

    • Pull-out ramps
  • Premium powder coat and paint or galvanized finish.


Request a Quote

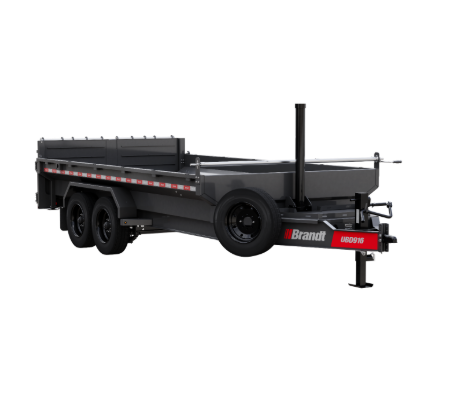

Premium Model

  • Scissor lift: Power-Up, Power-Down, & Gravity-Down.
  • Max Body – 82 ″ between fenders & 97″ over fenders
  • Black Steel Wheels.
  • Heavy-duty Combo Gate for Safer Machine Loading
    • Barn door mode
    • Integrated ramps
  • Premium powder coat and paint or galvanized finish.


Request a Quote

GALVANIZED & WEATHER-WISE.

Leave rust in the dust with a galvanized Work Ready™️️️ Brandt trailer. Some conditions may apply.
Talk to a specalist for more information.


Specifications


  • Pull Type
  • GVWR (lb)
  • Deck Length (ft)
  • Deck Width (in) (Floor/Rim)
  • Rated Payload (lb)
  • Axles
  • Suspension
  • Trim Packages

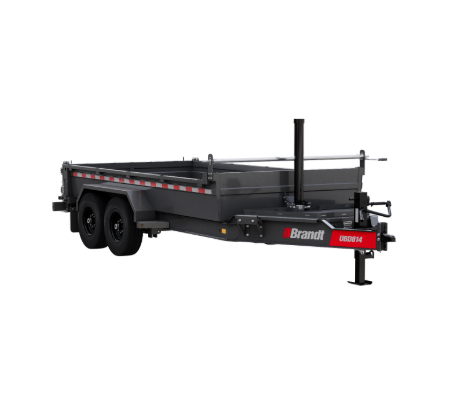

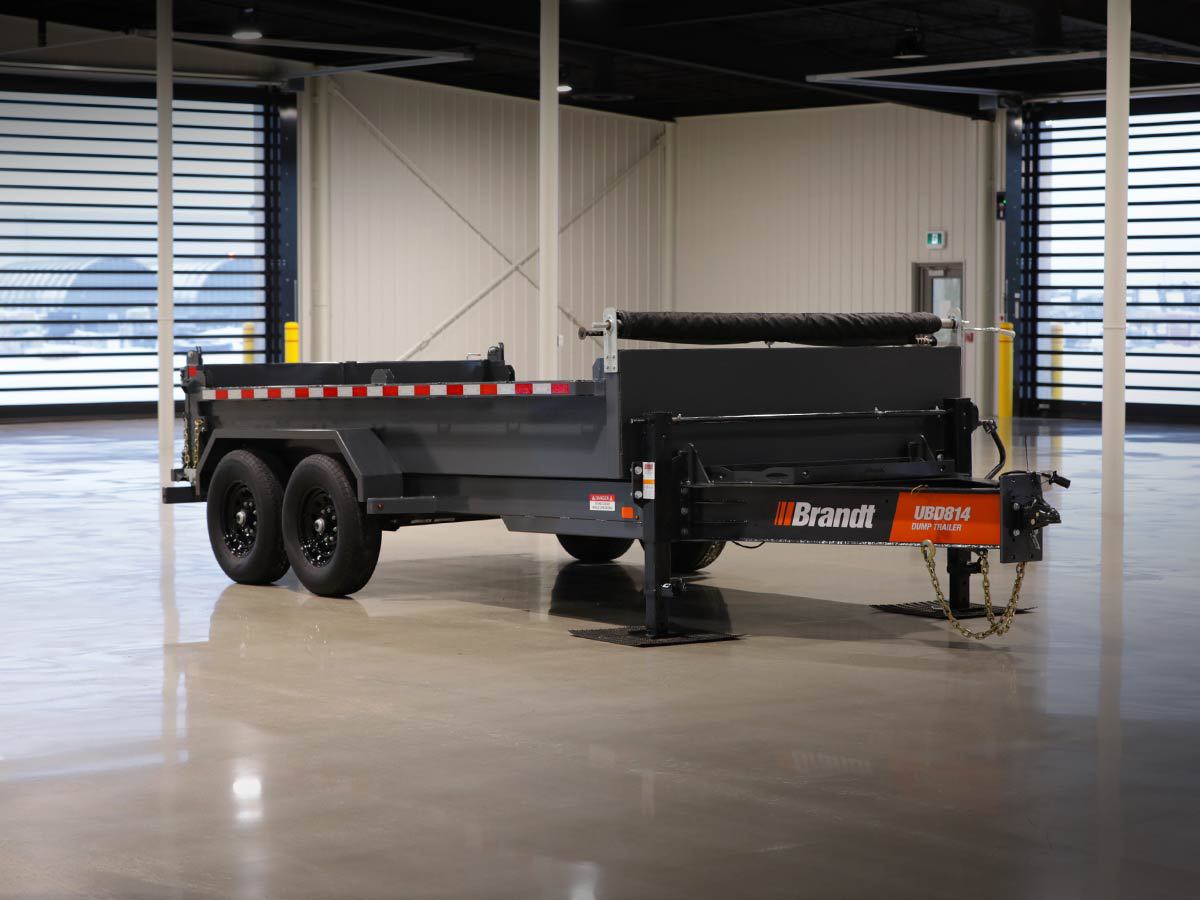

  • UBD814 Straight Wall

    • Bumper
    • 16,000
    • 14
    • 82/82
    • 10,550-10,800
    • 2 x 7,000 lbs
    • Torsion
    • Performance, Premium

  • UBD816/UGD816 Max Body

    • Bumper or Gooseneck
    • 16,000 - 17,500
    • 16
    • 82/97.2
    • 10,050 - 11,350
    • 2 x 7,000 lbs
    • Torsion
    • Performance, Premium

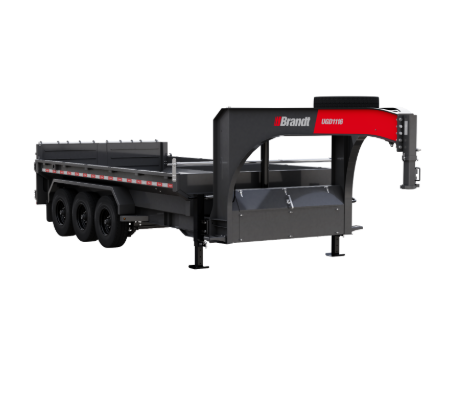

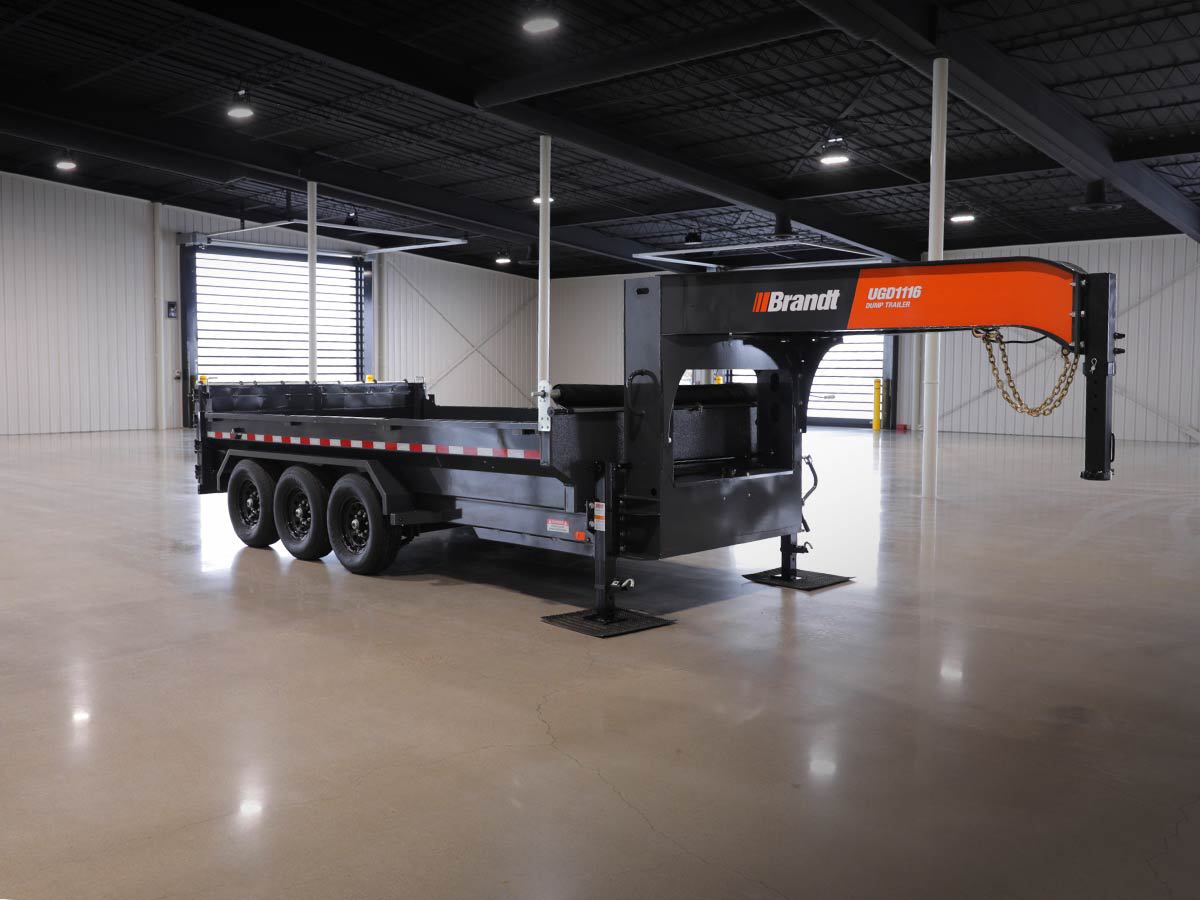

  • UBD1116/UGD1116 Max Body

    • Bumper or Gooseneck
    • 22,000
    • 16
    • 82/97.2
    • 15,100-15,950
    • 3 x 7,000 lbs
    • Equalized Leaf Spring
    • Performance, Premium

  • UBD1116/UGD1116 Straight Wall

    • Bumper or Gooseneck
    • 22,000
    • 16
    • 82/82
    • 15,150-15,900
    • 3 x 7,000 lbs
    • Equalized Leaf Spring
    • Performance, Premium
Show More +

Gallery

HIGH QUALITY ASSERTED BY
THE BEST WARRANTY IN THE INDUSTRY.

Two-years bumper-to-bumper and five-year structural warranty covers all components is the best coverage in the business.
