One Tough Customer.

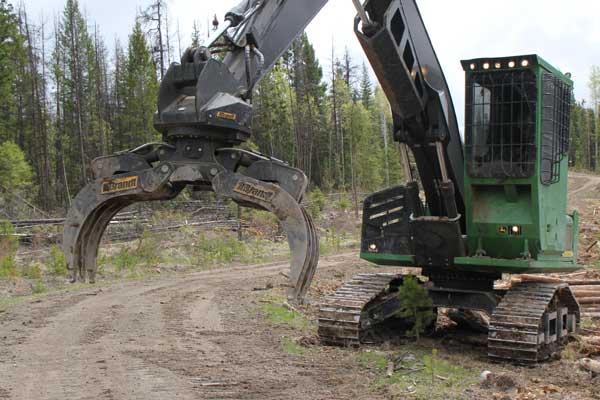

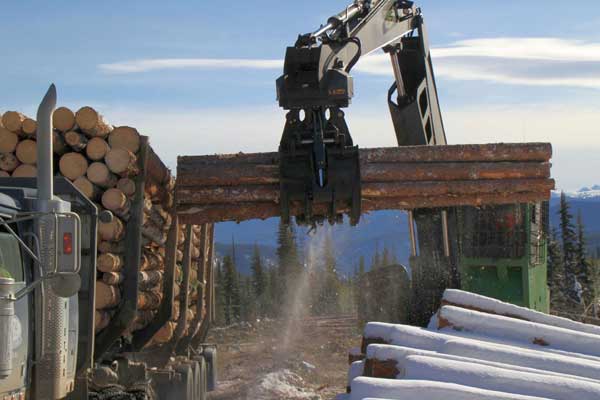

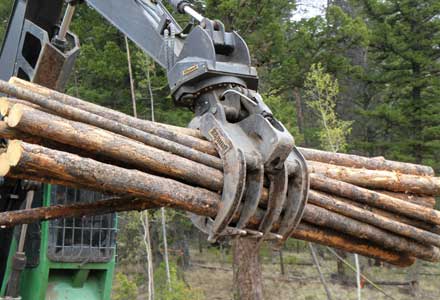

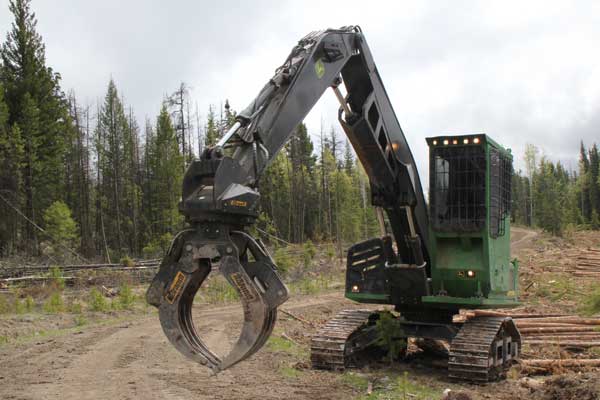

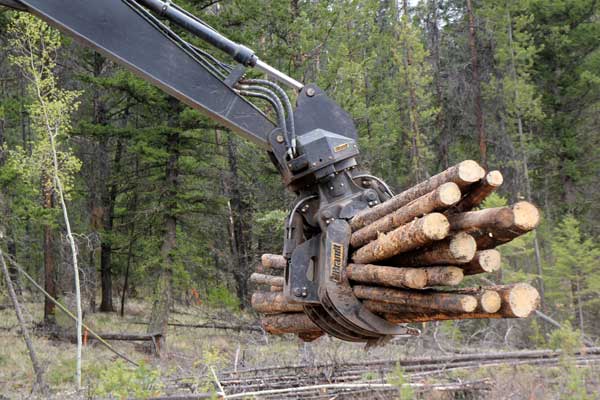

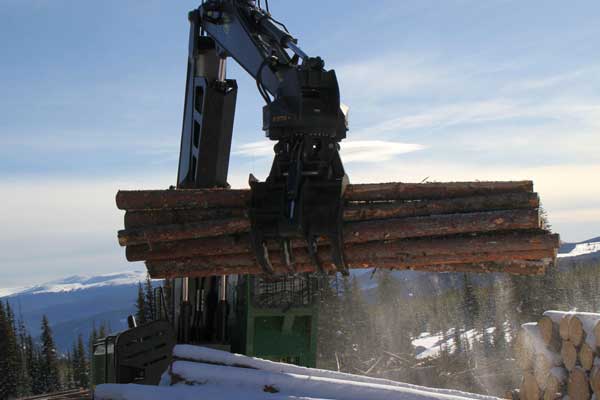

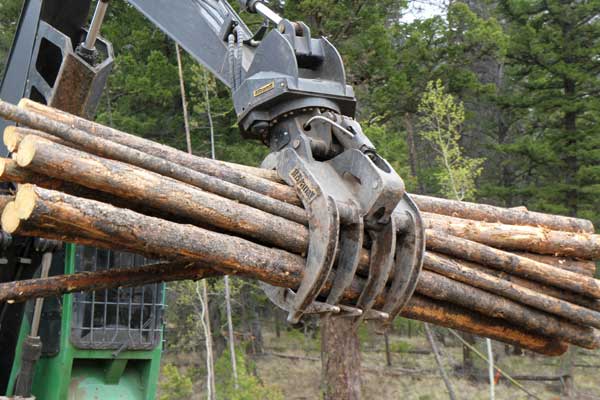

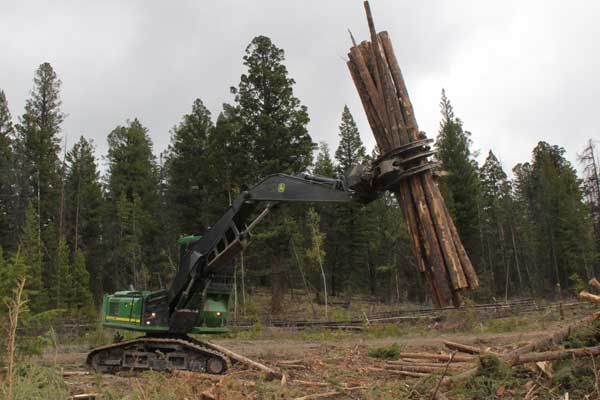

Brandt Hard To The Core power grapples utilize heavy-duty materials and robust engineering to ensure they’re ready for the hardest jobs, every single day. They feature an optimized hydraulic hose length that reduces friction while rounded-edge ports protect this critical system to deliver superior uptime. That’s backed up by hardened bushings and pins to maximize overall durability. And when wear-and-tear finally started to set in, the grapple tips are easily replaced, extending the life of your attachment.
Specifications
| 2156G |
| Jaws | 8, 10 |
| Swivel (inch) | 27 in |
Features
Productivity.
- High-flow in-head valve with greater allowable working pressure delivers maximum auxiliary flow for multiple functions at full speed.
- Lug geometry is optimized for DHSP to accommodate pencilling at full reach or underneath the boom and stick.
- Jaws close to a tight envelope for precise placement when handling individual stems and feature near-vertical orientation for superior pile penetration.
Reliability.
- QT-100 steel frames and strategically placed high-strength abrasion resistant steel ensure a long service life and optimized strength-to-weight ratio.
- High-torque Eaton Char-Lynn VIS drive system motor includes custom modifications for long-term durability.
- Weld-on outriggers help retain the load, protecting the pivot frame from damage and maximizing uptime.
Serviceability.
- External centralized grease bank for internal grease points means no cover removal for daily greasing.
- Rotating swivel can easily be removed from bottom of pivot frame for service without removing the in-head valve.
- Split top-access cover allows for easy removal and serviceability of the control valve and upper hydraulics.
