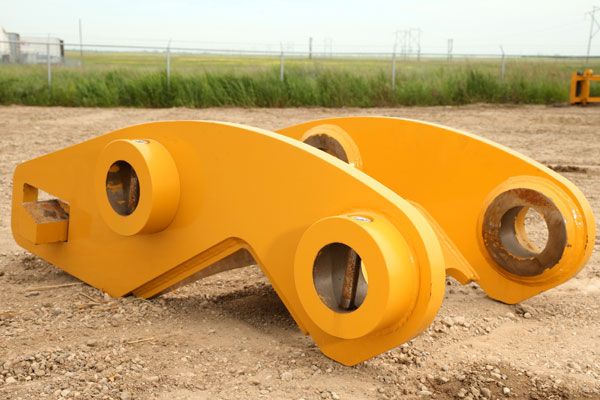

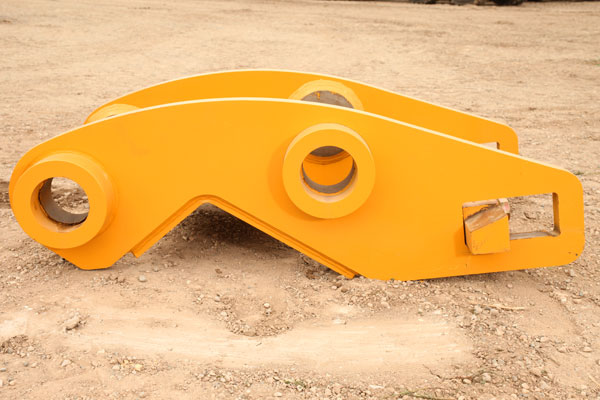

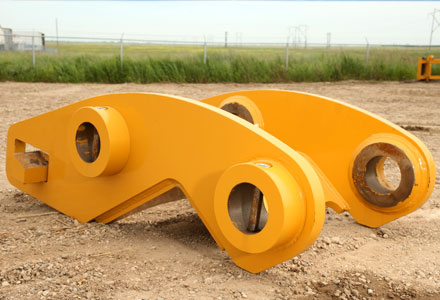

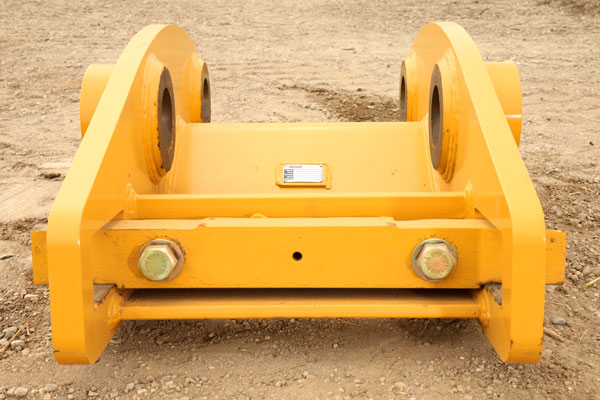

Brandt Manual Quick Couplers allow for quick and easy attachment changes and increase your productivity.
Specifications
| 80 Series |
| Weight | 70 lbs |
| Length | 21 in |
| Width | 13 in |
| Height | 8.625 in |
Features
- Designed to optimize the attachment's tip radius along with the excavator's curl and stick forces.
- Wedge is made of high strength material and is machined to ensure a superior fit with the mating lugging on the attachment.
- An enclosed wedge housing increases coupler strength.
- Mechanical wedge lock keeper secures the wedge in the disengaged position to allow for an easy attachment hook up. This ensures the wedge will not prematurely slide into the engaged position while trying to hook up to your attachment.
- Machined coupler bosses ensure a superior fit with Brandt attachments and allow for the Deere factory stick pins to be used.
- Cross pin retention system features a high strength cross pin retainer with positive retainer plug.
Specifications:
- High strength machined wedge
- High strength cross pin retainer
