Brandt Hydraulic Quick Couplers provide the operator with the ability to change attachments directly from the cab of the John Deere Excavator. These Hydraulic Quick Couplers save time while increasing productivity and promoting job site safety.
Specifications
| 60 Series |
| Weight | 85 lbs |
| Length | 24.75 in |
| Width | 11.25 in |
| Height | 6.5 in |
Features

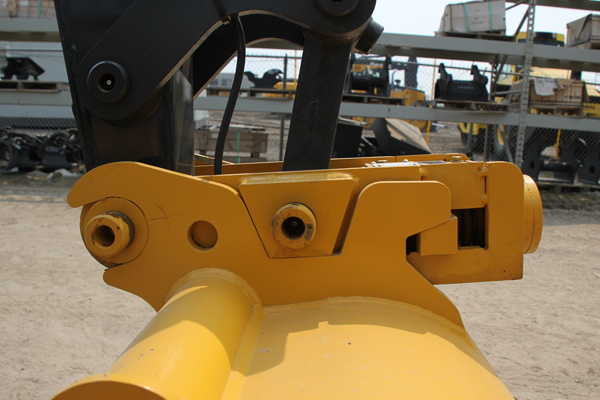

- The wedge is engaged into the attachment lugging using mechanical force and is secured in place with an automatic locking lever system. The patented automatic wedge locking system locks and unlocks the levers with hydraulic pressure which is controlled from the cab. The wedge will not disengage until hydraulic pressure is applied using the control system. There is no need for the operator to leave the cab during any point of the changeover process.

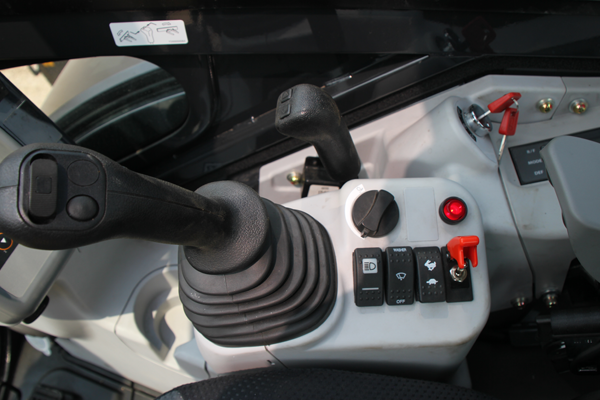

- The control kit features a covered toggle control switch, a pressure sensing audible alarm and a warning light to indicate the system has been activated for superior job site safety.
- The entire system is designed specifically for Deere excavators and includes a "plug and play" control system that neatly integrates into the operator control bank in the cab.
