REDESIGNED RELIABILITY

Watch Video

U-TROUGH AUGERS

Overview Features Specs Gallery Resources

The simplicity of an auger. The efficiency of a belt.

Introducing the all-new Brandt Series B U-Trough Auger, redesigned from the ground up for ease of access to all components, reliable operation, and peak performance for all crops and conditions. Plus, its gentle handling protects your crops from damage, maximizing your profit margins.

View Specs

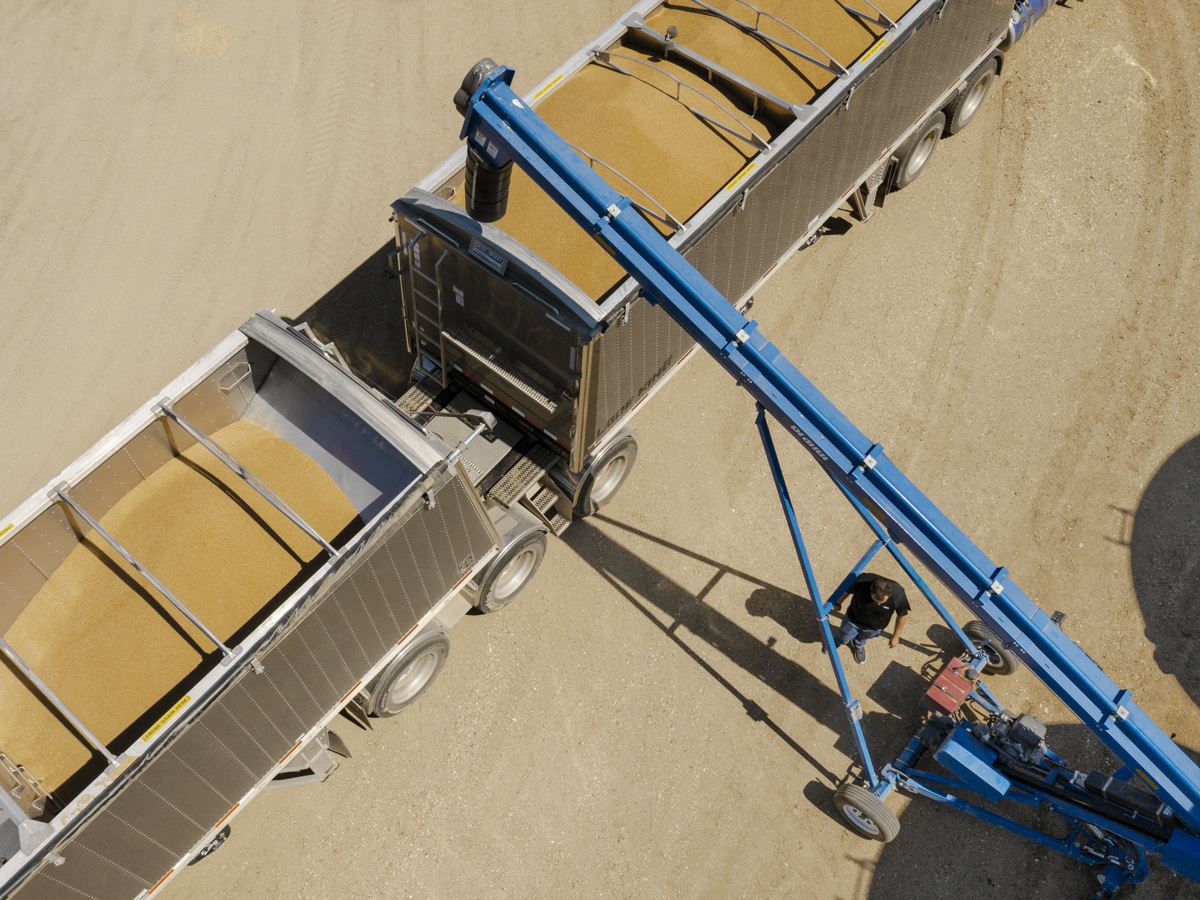

Load Trucks Faster

Capable of reaching capacities of up to 9,000 bushels/hour on a 40hp engine for an exceptionally high level of productivity.

Always Ready to Work

Heavy-duty components, including an upgraded gearbox with chain coupler and a solid driveline, handle the high load tolerances of this hard working auger.

Easy to
Use

The frame-mounted engine, accessible fuel tank and centralized operator controls provide convenient operation and maintenance.

Increased Productivity

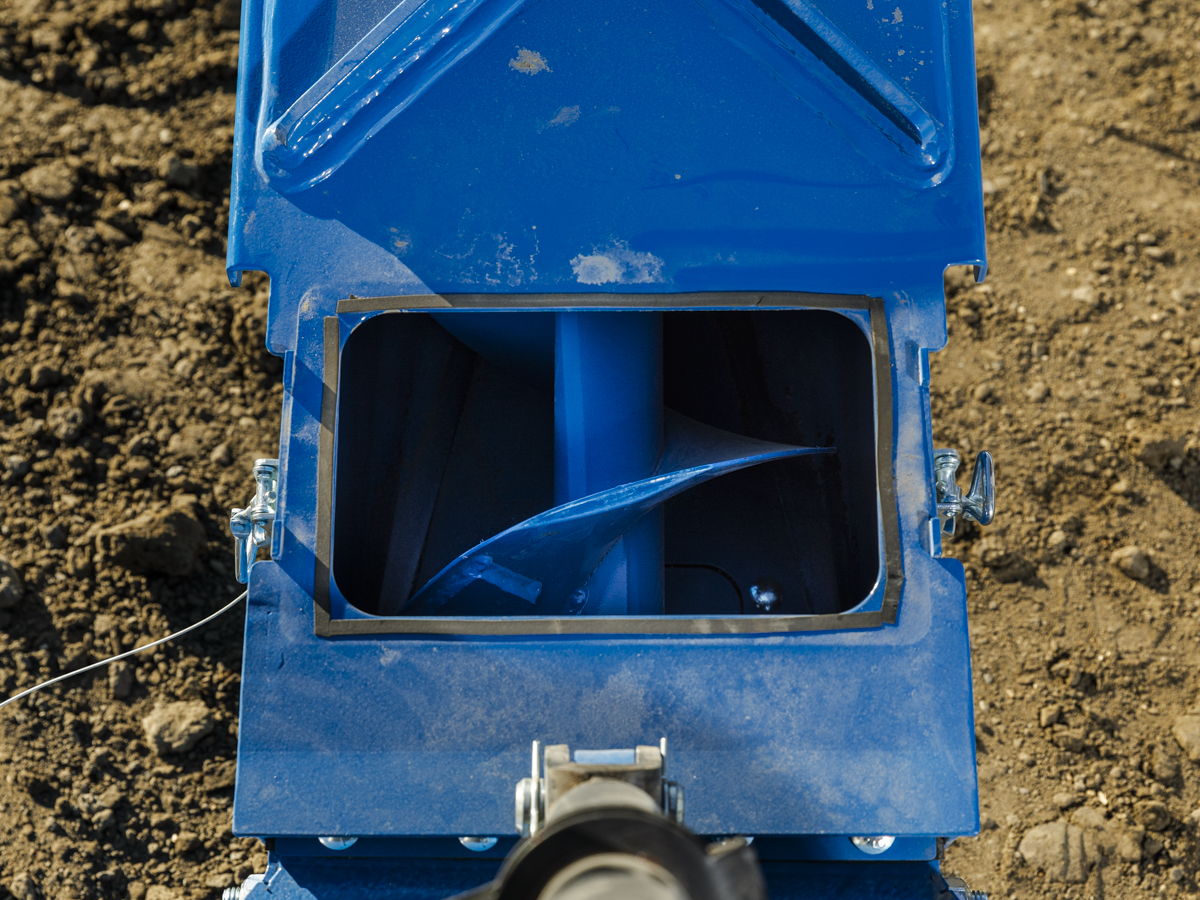

  • Oversized intake flighting and funnel-shaped hopper improve grain flow efficiency.
  • 13” U-trough allows more grain to move above the flighting for higher output and less damage.

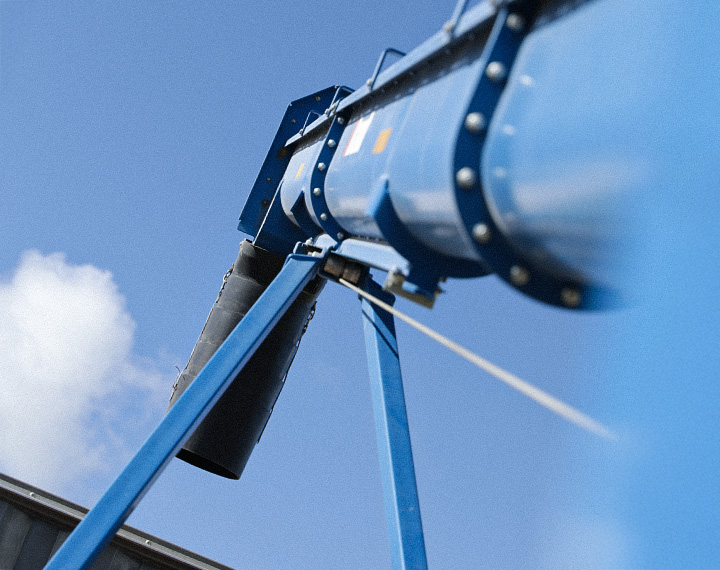

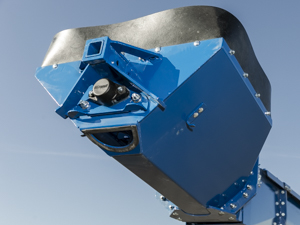

  • Purpose-built discharge flares open to handle peak capacities to prevent risk of plugging.
  • Move up to 9,000 bu/hr in canola and up to 7,100 bu/hr in cereal crops.

Maximum Uptime

  • HD 3-bearing Gearbox and chain coupler handles higher load tolerances of high torque operation.
  • Improved reliability of the solid round bar driveline and head-end drive chain keep the auger working.
  • Triple-banded belt delivers maximum traction, and belt tensioning system optimizes power transfer.
  • For easy belt tensioning, an adjustment nut on a threaded rod is used to move the idler.

Simple Operation

A frame-mounted engine keeps all controls and most service points at ground level.
  • Axle powered EZMOVE and its available AWD kit offer dependable portability in all yard conditions.
  • Industry-leading reach with a low-clearance hopper ensures an optimized fit for more bin setups.

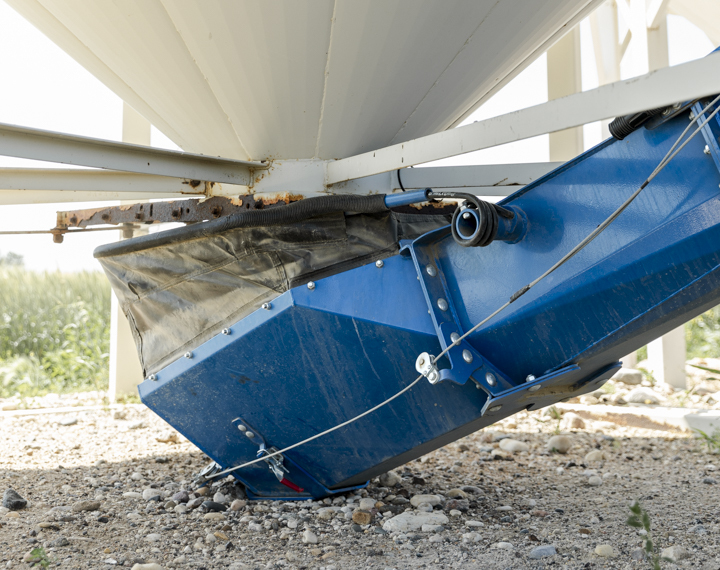

  • Retractable hopper provides 14” – 24” of clearance to get under bins and raises up to prevent loss.
Is there something we can help you with?   Talk to a Specialist

Features

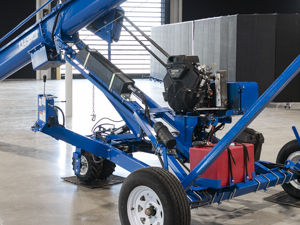

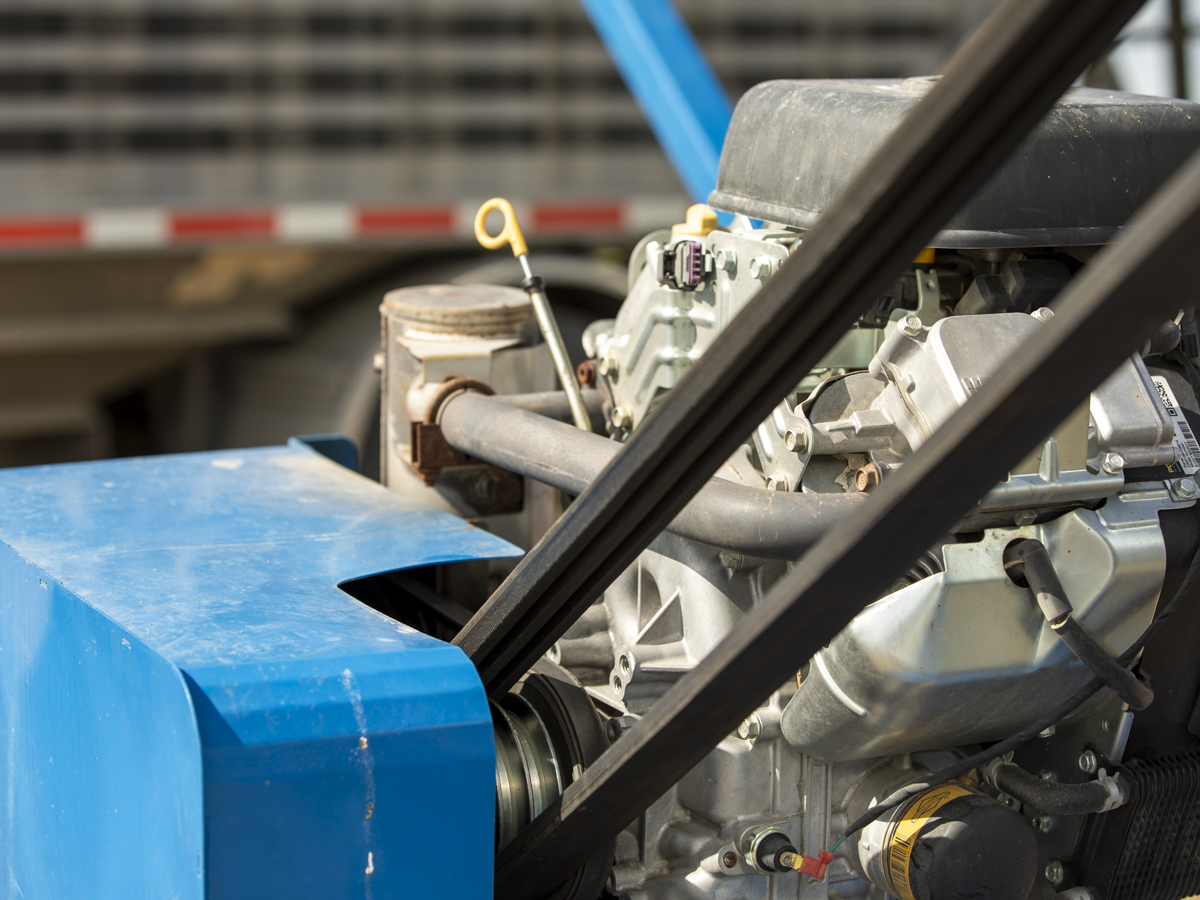

Frame-mounted Engine

The engine position uses a self-leveling mount connected by a parallel linkage to a pivot point aligned to the main drive pulley. This maintains proper belt tension.

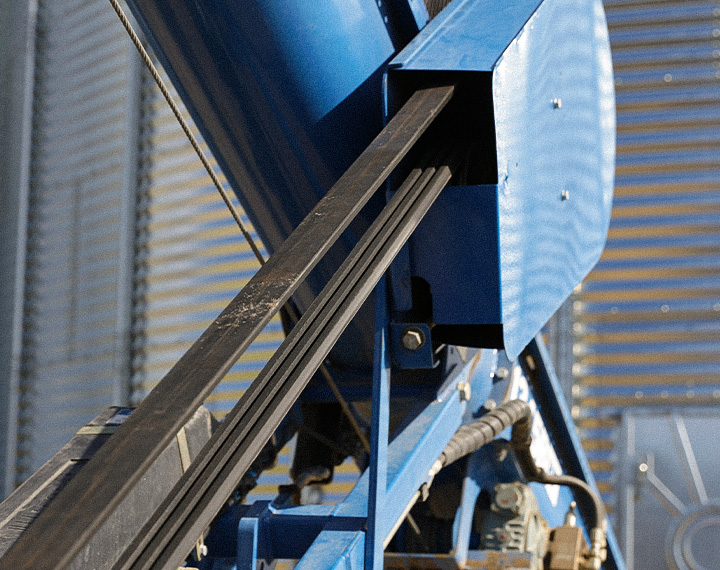

Triple Banded Belt

Belt delivers higher load capacity and better performance. It also reduces slippage and improves stability, reducing vibration.



Protected Driveline

A chain coupler on the gearbox output shaft helps dampen the shock load on the gearbox and engine and accounts for any misalignment in the driveline.

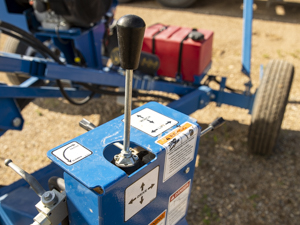

Convenient Controls

Operator control station includes ignition, throttle, electric clutch, and EZMOVE operations.

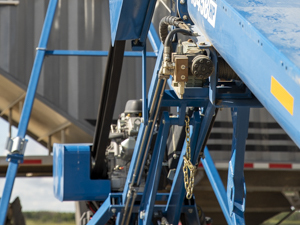

Optimized Hydraulic Routing

Steel hydraulic lines and hidden hose routing keeps hydraulic systems protected and long lasting.



Total Cleanout

The cleanout door on the hopper delivers complete cleanout with the reversible gearbox.

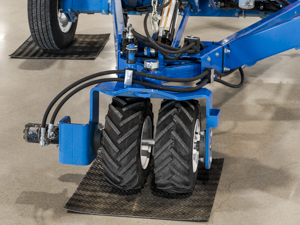

All-Wheel Drive Kit

The AWD kit provides power to the steering wheels of the EZMOVE system for the ultimate traction for navigating the worst yard conditions.

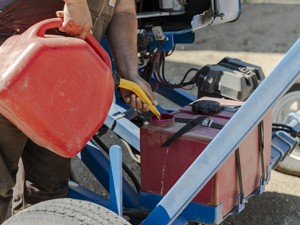

Drive Options

Multiple drive options available: 40hp Vanguard EFI Gas, Electric Drive, and PTO Drive.

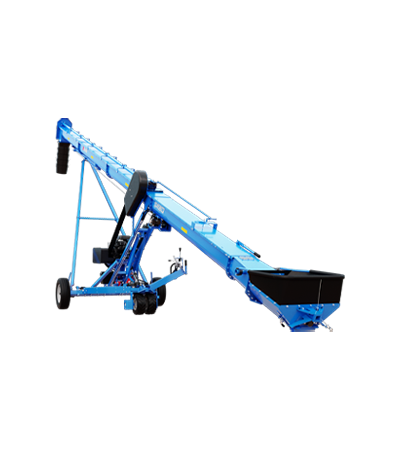

1345B HP (High Performance)


  • Capacities up to 7100 bu/hr in cereal crops.
  • Capacities up to 9000 bu/hr in canola.
  • 16’ of intake reach.
  • Seed Saver baffle plate is optional to reduce grain splash.

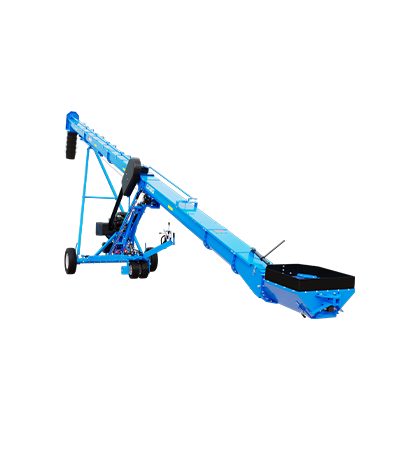

1345B LP (Low Profile)


  • Capacities up to 6900 bu/hr in cereal crops.
  • Capacities up to 7500 bu/hr in canola.
  • 19’ of intake reach with self-levelling hopper offering 14” of clearance.
  • Seed Saver baffle plate is standard to manage risk of overflow and to reduce splash.

Specifications


  • 1345B HP
  • 1345B LP

  • Length (ft)

    • 45'
    • 48'

  • Height

    • 10'3" - 21'11"
    • 9'10" - 21'10"

  • Capacity (bu/hr)

    • 9,000
    • 7,500

  • Drive Belt

    • Triple-banded
    • Triple-banded

  • Reach

    • 16'2" - 16'7"
    • 16'2" - 16'7"

  • Intake Reach

    • 14'9" - 17'9"
    • 17'9" - 19'8"

  • Top Drive Chain

    • Single #80
    • Single #80

  • Trough Thickness

    • 12ga
    • 12ga

  • U-trough Height

    • 13"
    • 13"

  • Intake Flight

    • 11"x1/4"
    • 11"x1/4"

  • Main Flight

    • 10" x 7GA
    • 10" x 7GA

  • Flight Core Diameter

    • 2"
    • 2"
Show More +
