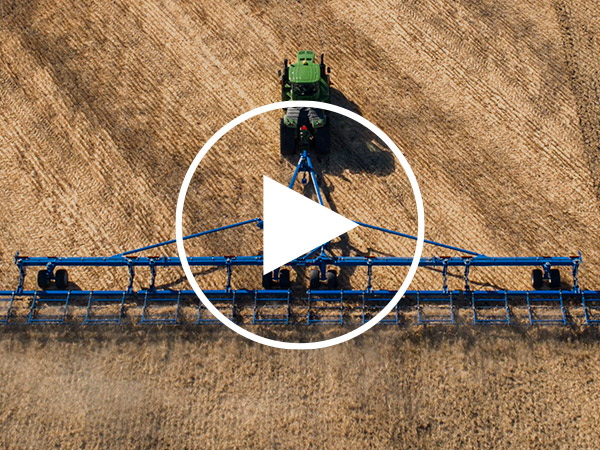

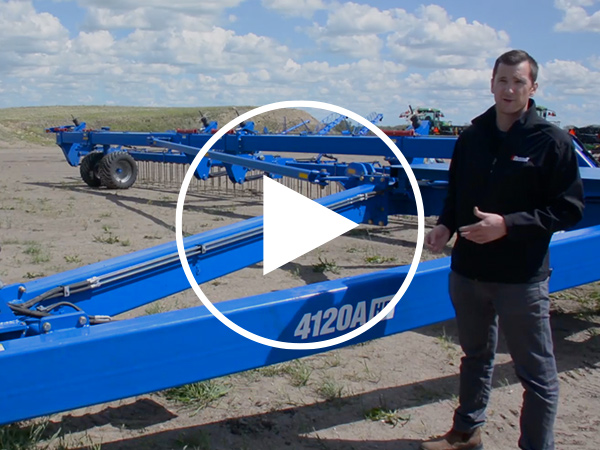

Watch Video

HP TORSION HARROWS

Overview Features Specs Gallery Resources

Brandt HP torsion harrows cover more ground in less time to keep your operation on schedule.

Whether you are trying to beat the winter season or open up your fields in the spring, these harrows deliver productive soil conditioning, rut leveling, and crop residue management that you can count on in the toughest conditions.

View Specs  Find a Dealer

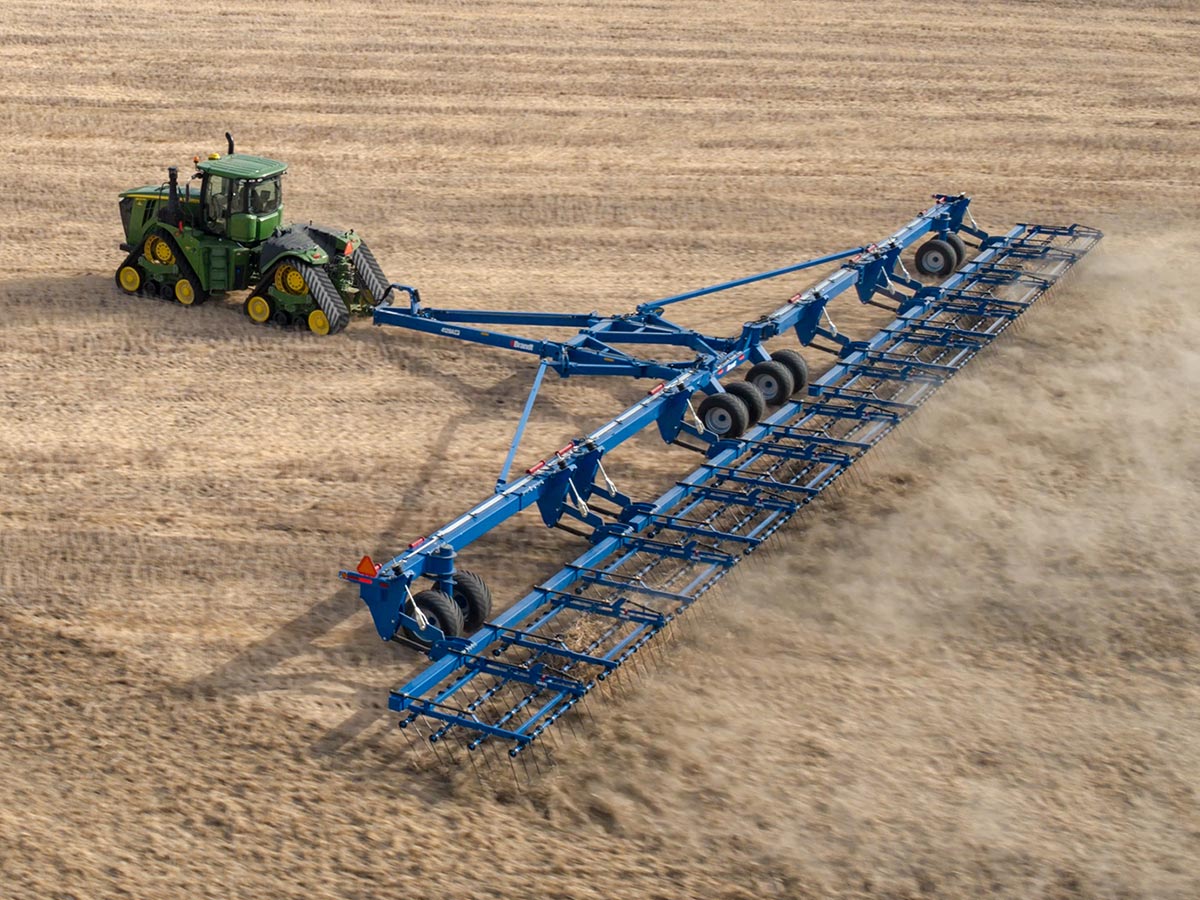

Cover More Ground

With machine widths of 100 and 120 feet and operating speeds up to 12 miles per hour, you'll cover your large acres faster than ever.

Achieve Consistent Results

Weighing nearly 50,000 lbs, these units deliver consistent down pressure and ground contouring across the full working width for uniform seed-bed preparation.

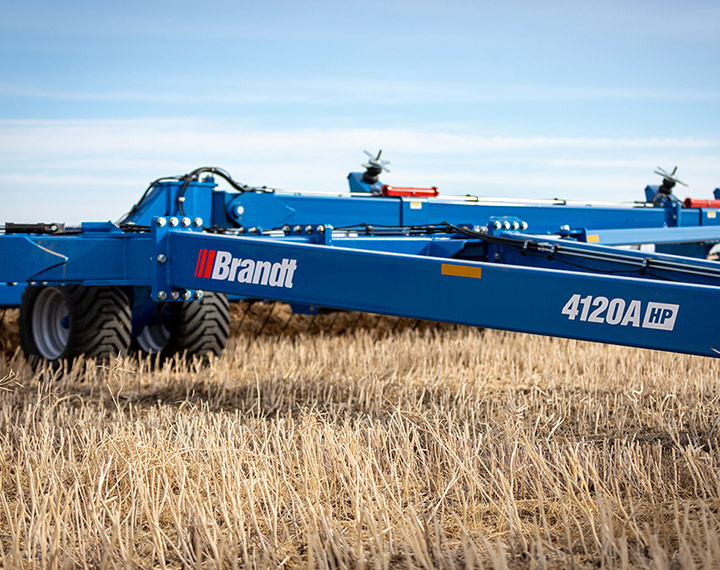

Minimize Maintenance

Heavy-duty components stand up to harsh conditions, delivering unmatched longevity and reducing maintenance costs.

More Uptime

  • Durable bushings are sealed to protect against in-field rigors, eliminating maintenance downtime.
  • Minimal and easy-to-access grease points ensure maximum uptime.

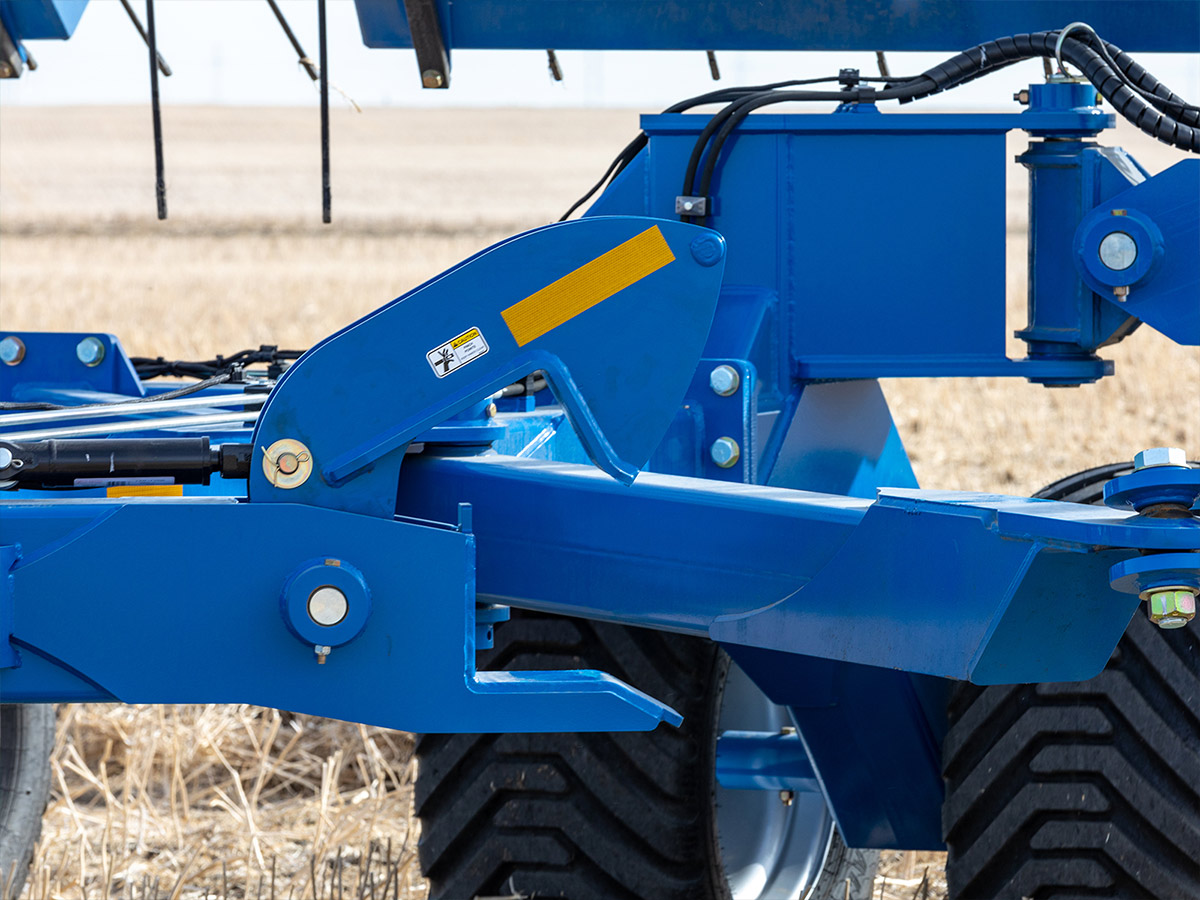

  • The high-clearance hitch delivers maximum structural support ensuring the harrow won't bottom out.

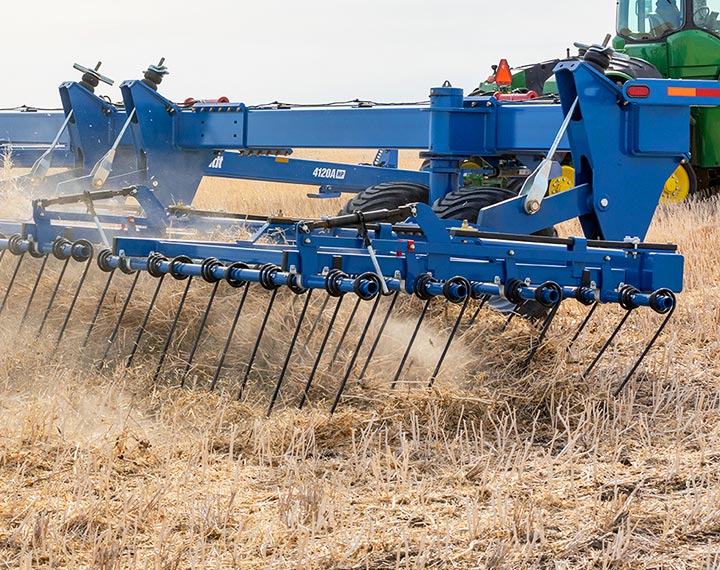

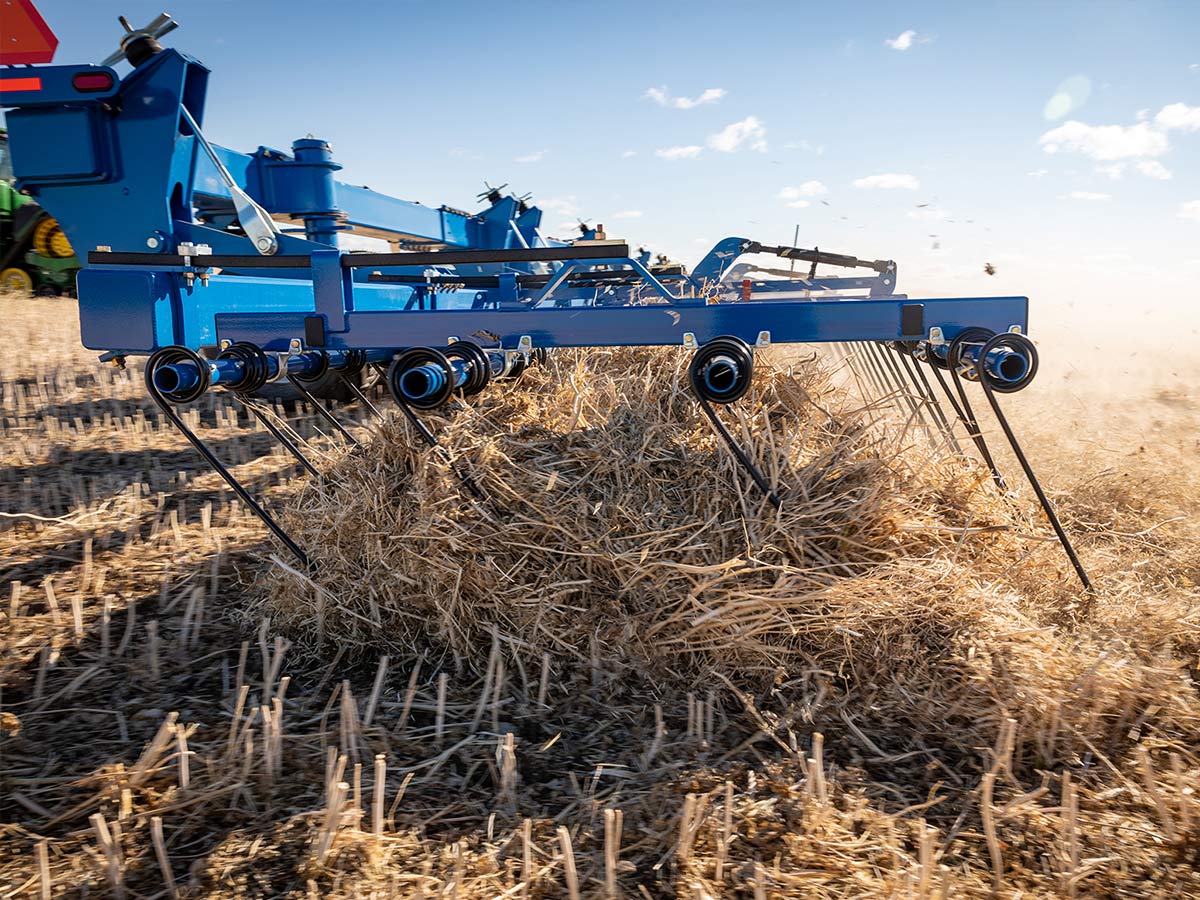

Productive Soil Conditioning

  • 30" tines deliver outstanding ground penetration and vibration for breaking up tough residue.
  • Spread shattered straw, mix chemical applications, and control unwanted plant growth.
  • Tough 2.5" carbide tips provide unmatched tine longevity, reducing replacement costs.

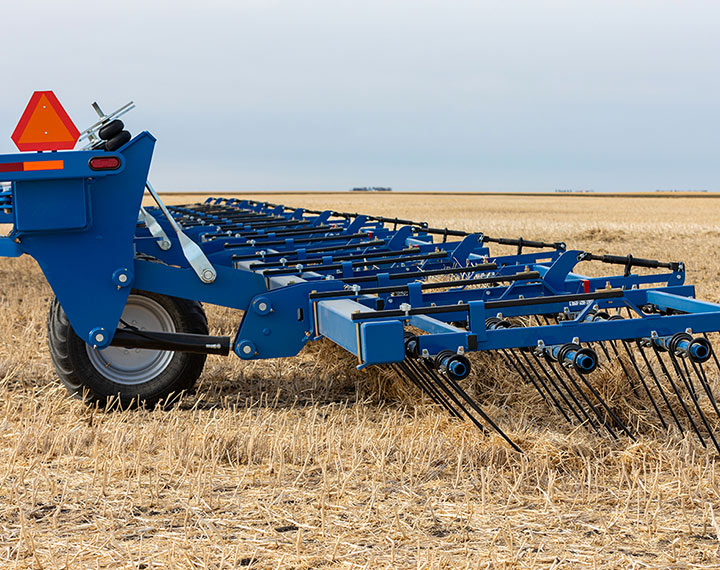

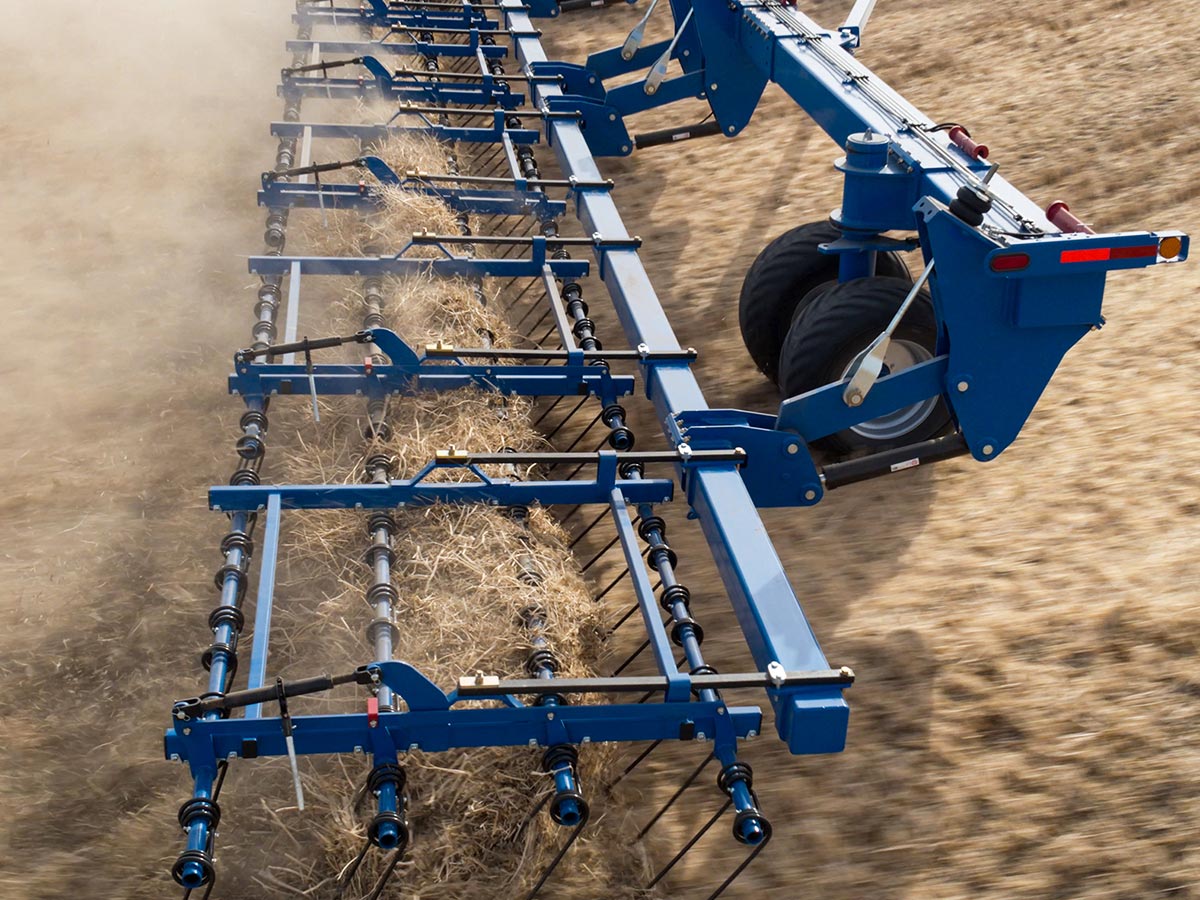

Independent Frame and Tine Carriers

  • Parallel-link connections control down-pressure to each frame section and its tine carriers.
  • Each tine carrier has two torsion bars supplying independent down-pressure across the entire width.
  • The harrow allows you to control the amount of down-pressure transferred on the tines.
  • Easily adapt your setup to field conditions, residue management goals, or desired tillage level.

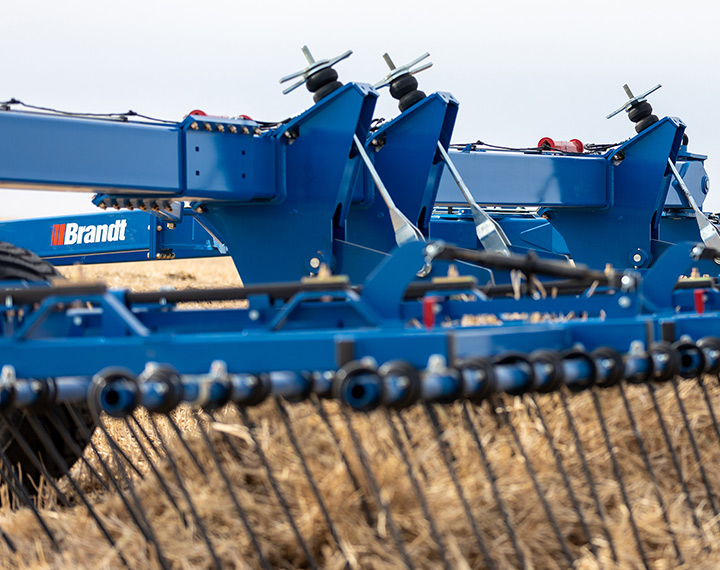

Flexible Ground Contouring

  • Even distribution of down-pressure and flexible contouring creates ideal seed-bed preparation.
  • Independent frame sections with free-moving tine carriers react to changing ground conditions.

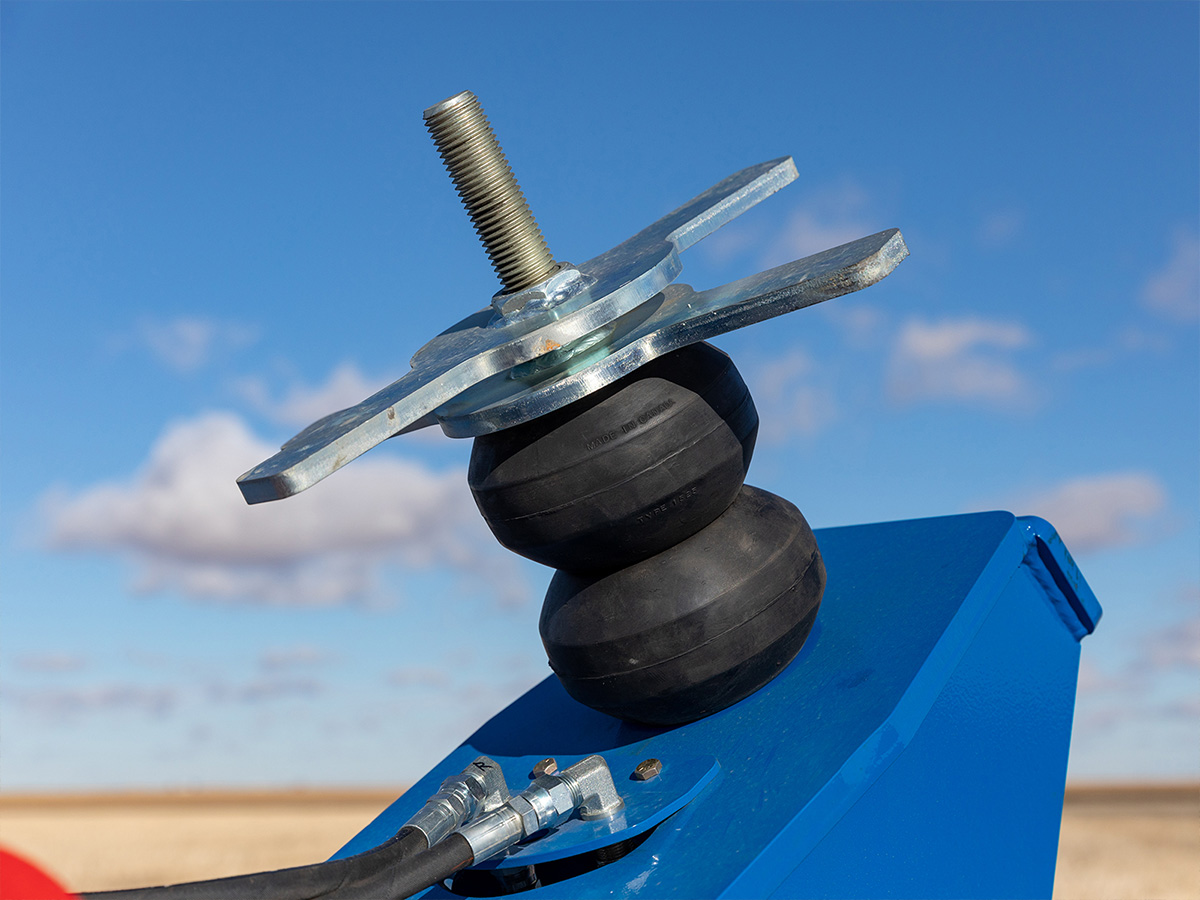

  • Individual adjustment and dampening system ensures sections are parallel to the ground.

Features

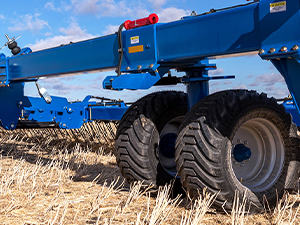

Large Centre & End Wheels

High flotation 550/45-22.5 centre & end wheels allow operators to easily pull the HP Torsion Harrow across the roughest fields at high speeds.

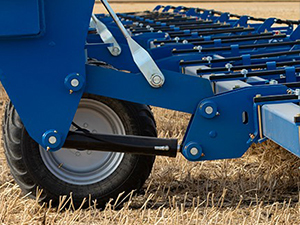

IHCP Pins

Induction Hardened Chrome Plated (IHCP) Pins deliver superior impact resistance, ideal for high-quality components that work in tough environments.

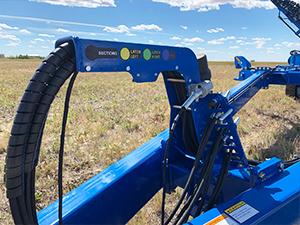

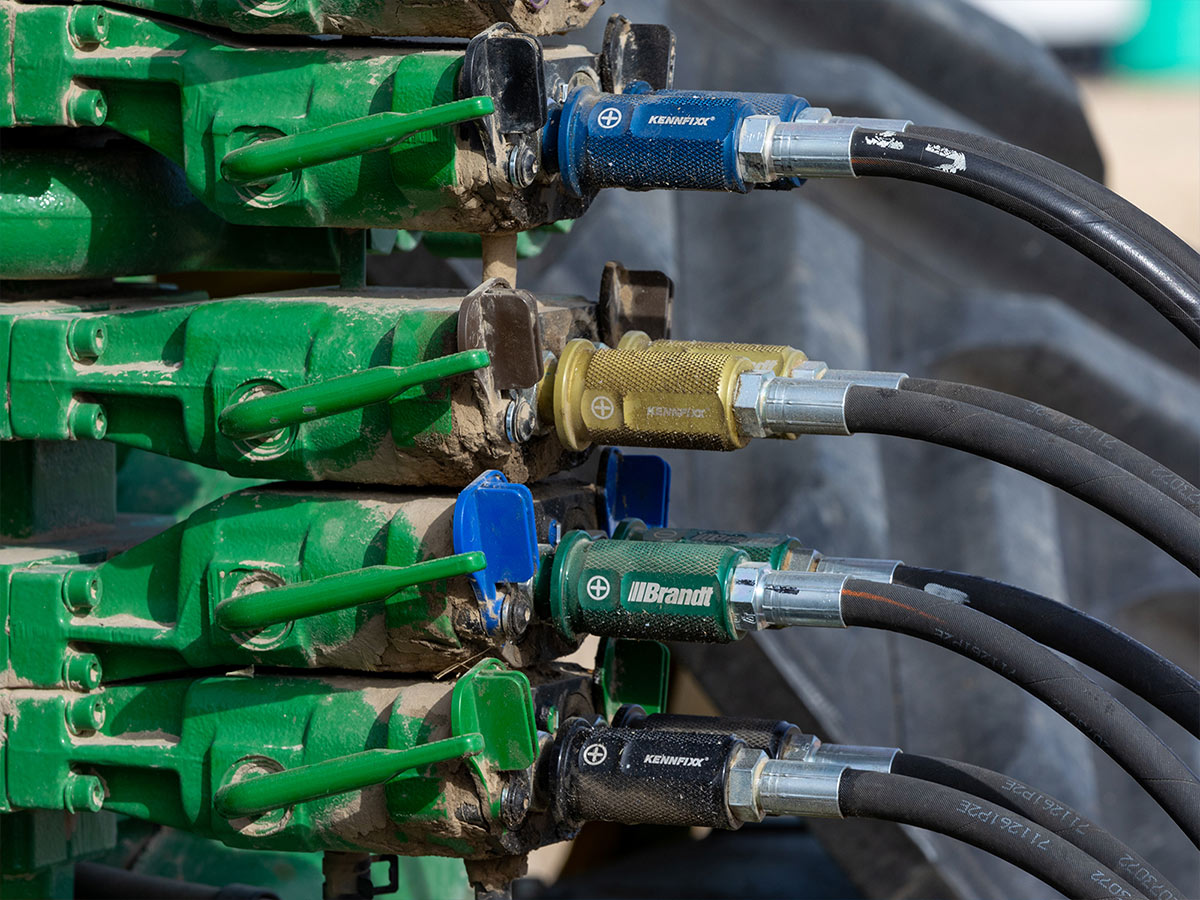

Effortless Hook-Up

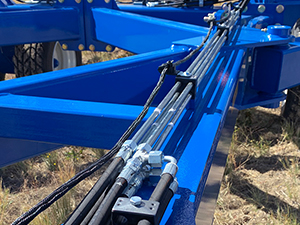

Premium couplers with custom colour coding fit securely into the coupler storage arm, keeping the hydraulics in great condition while making implement hook-up quick and easy.

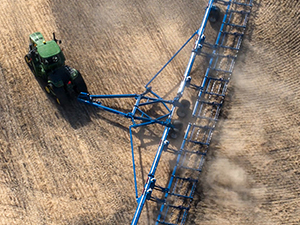

Solid-Truss Design

Durable pull system eliminates cable snapback when cornering, allowing you to raise the sections and reverse in tight areas.

Specifications


  • Field Width
  • Section Widths
  • Weight (lbs)
  • Minimum Horsepower

  • 4120A

    • 120’
    • 12' x 10'
    • 46,550
    • 550

  • 4100A

    • 100’
    • 10' x 10'
    • 43,550
    • 500
Show More +

LONG-LASTING CARBIDE TINES


Brandt carbide tines increase the life and performance of your harrow. They maintain their original length and shape longer, producing enhanced performance and a more consistent field finish. They feature a 2.5" long carbide tip, 25% more than most competitors.

Longer Lasting

Carbide tines mitigate excessive wear, reducing replacement costs and increasing ideal performance life to maximize return on investment.

Optimal Design

Brandt harrow tines are available in 26”, 28”, or 30” length, optimized to create the necessary vibration and movement to mix and spread residue.

Better Cutting

The unique cutting face of the carbide tip is pointed for more effective cutting and sizing of straw.
