The Brandt Drive-Over conveyor makes unloading trucks quicker​ and easier than ever before.

The Brandt Grain Deck is a portable grain pit designed to boost your ​productivity. Simply drive your truck over the Grain Deck and unload​, eliminating the need to position a hopper under the truck multiple​ times.

View Specs    Find a Dealer


Unload Trucks Faster

With just one set up position and capacity up to 18,500 bu/hr, the Grain Deck makes the job easy. Trucks drive over, unload, and drive away.

Easy to
Use

The lowest deck height, worry-free belt tensioning, and efficient portability make this the most operator friendly drive-over conveyor available.

More
Versatile

Unload any type of crop into the Grain Deck and match it up with any auger or conveyor.

Higher Productivity

  • Capacities reach up to 15,000 bu/hr on the 20” and 18,500 bu/hr on the 24”.
  • Advanced 5.75" deck height delivers the lowest clearance for any style of truck and trailer.
  • The EZMOVE system makes it fast and easy to relocate from bin to bin in any yard condition.

Maximum Uptime

  • The EZTrak system delivers simple belt tensioning and automatic belt tracking for peak performance.
  • The polyurethane belt wiper keeps the belt clean, reducing wear and extending conveyor life.
  • Double-lip sealing keeps the product on the belt and prevents leakage, increasing belt life.

Simple Operation

  • Gentle on pulses and seed, reducing impact damage caused by common grain handling systems.
  • Enclosed belt return, capped bearings, and carefully placed system components mean safe operation.
  • Needs less horsepower than conventional augers, making it compatible with a wider range of tractors.
Is there something we can help you with?   Talk to a Specialist

Features & Options

Ramp Extensions

Increase the width of the deck from 67 ¾” to 84 ¾”, making the approach ramps longer and the approach angle lower for trucks to drive over.



Powder-coat Paint

Every Brandt-manufactured component receives this high-quality finish, ensuring long-lasting, vibrant coloration and superior rust protection.



Drivetrain Options

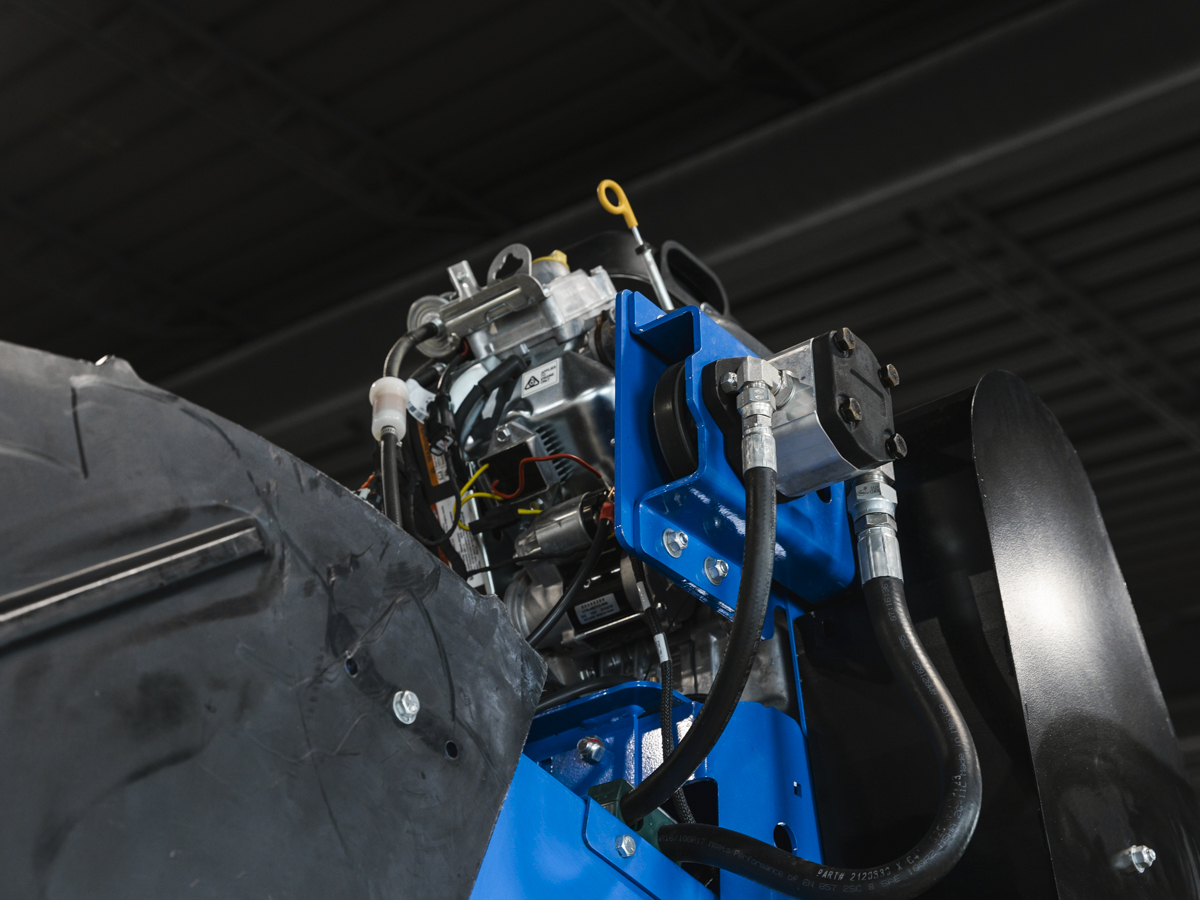

The Grain Deck has three different drive system options: an electric drive, hydraulic drive or gas drive system.



EZMOVE

EZMOVE makes for simple and fast relocation with operator friendly controls, and the integrated hydraulic hitch allows for easy transport when towing.

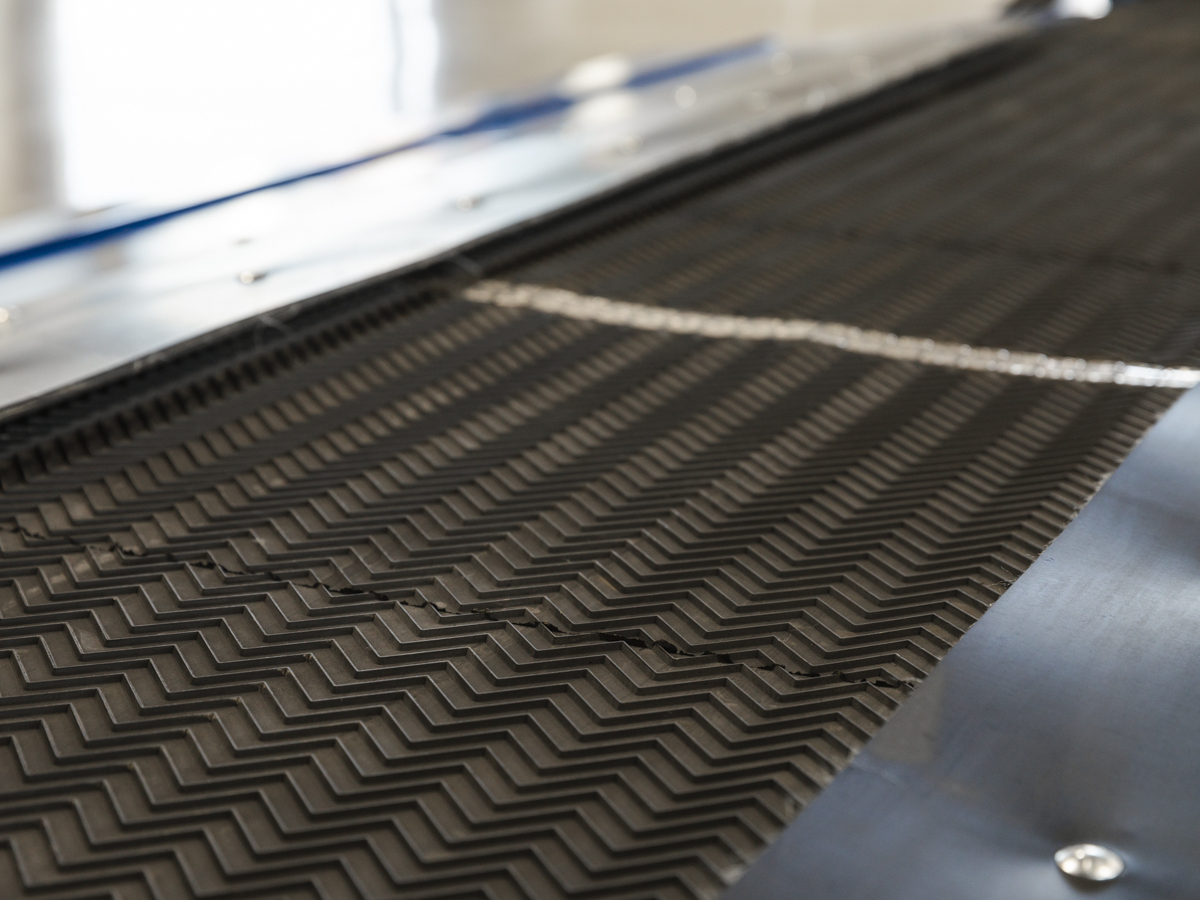

Oilseed-Certified Grain Belt

The Oilseed-Certified™ Grain Belt is designed specifically for oilseed & any other commodity. The warranty covers oilseed use without limitations. *Not Available on 2415A model*



Single & Double Tubes

Both the 20" and 24" models are available with single (10') or double (15') tube options for optimizing your desired discharge height or reach.

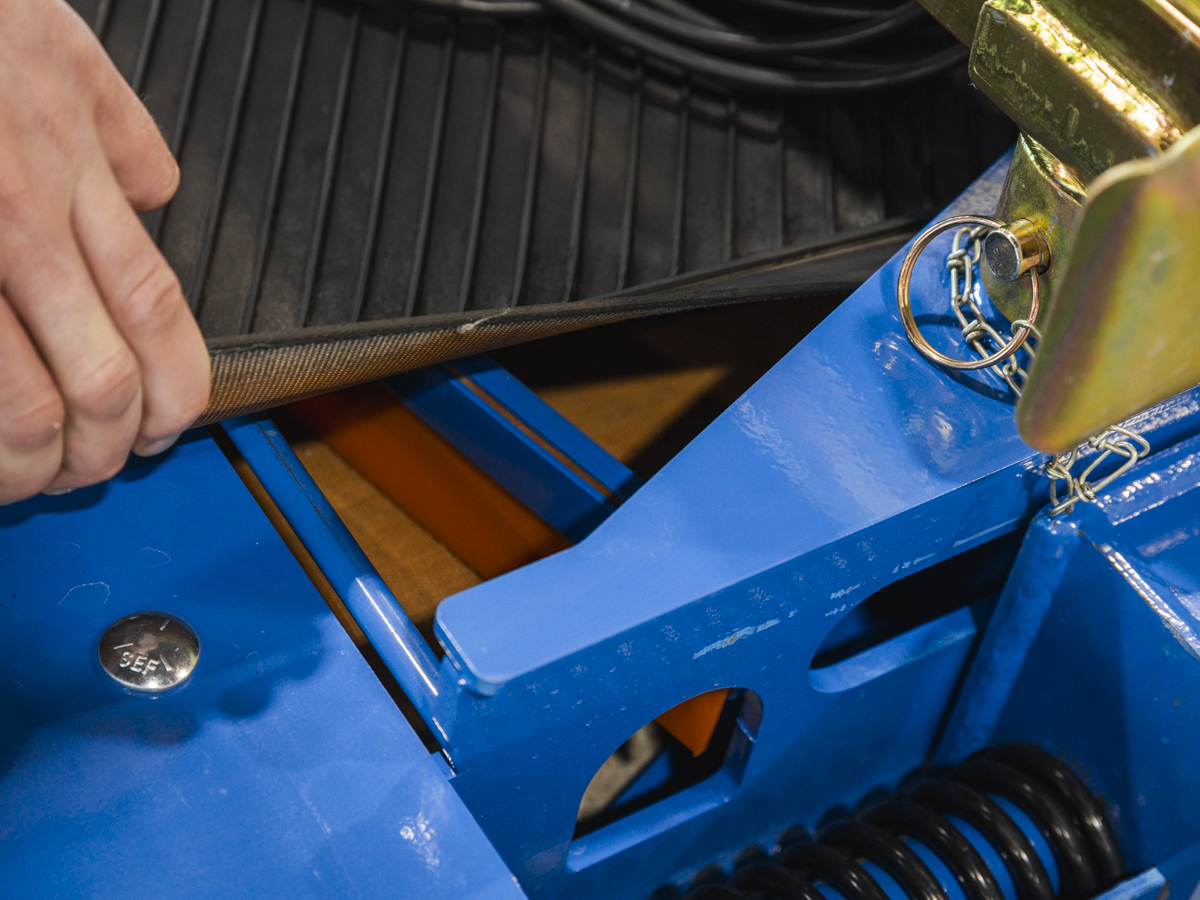

Double-lip Sealing

Doube-lip sealing uses two layers of belt seals throughout the intake to prevent grain from getting under the belt where it will leak or cause damage from churning and building up.



EZTrak

The EZTrak system keeps the belt aligned and properly tensioned at all times. The visual tension indicator makes it easy to see when an adjustment is needed.



Available Models

2010A & 2015A


  • Achieves peak capacities of up to 12,000 bu/hr in Canola and up to 15,000 bu/hr in Durum.

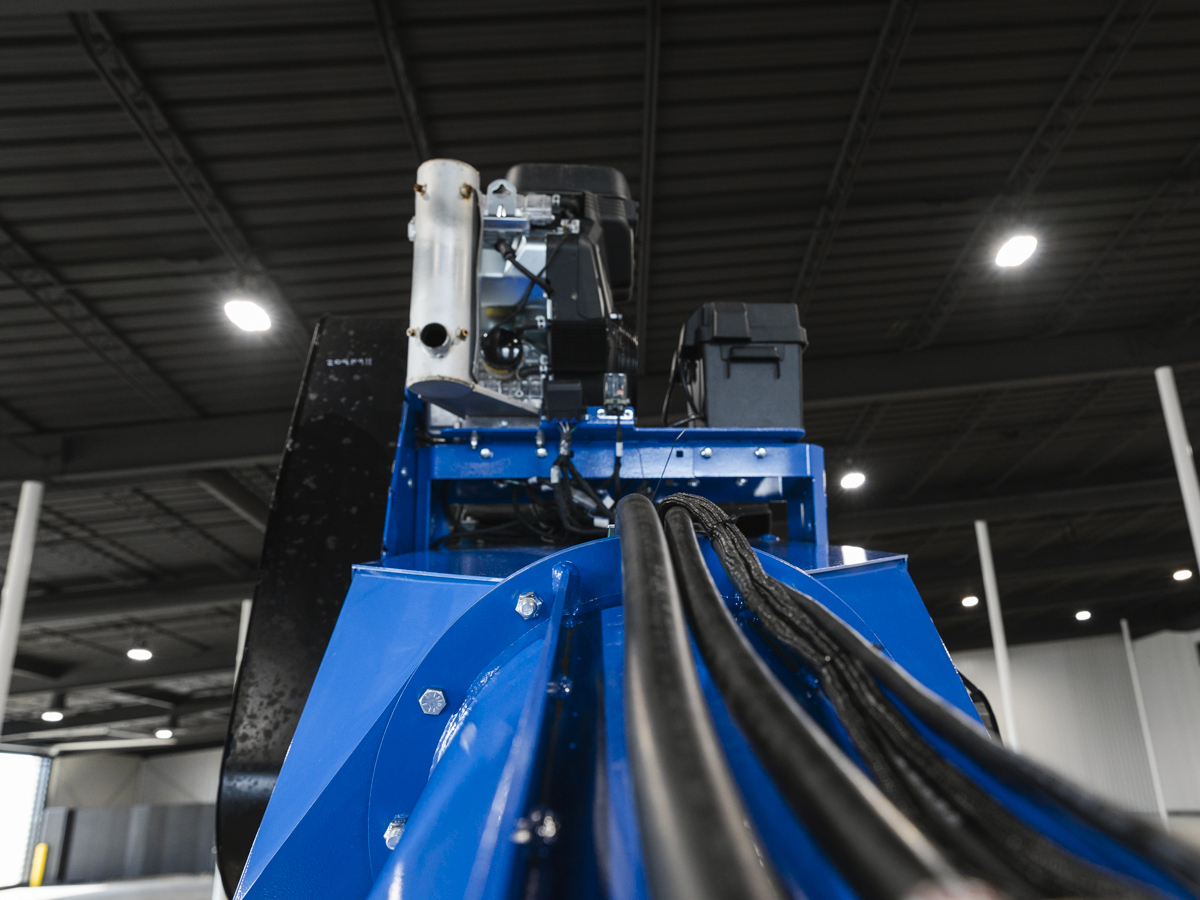

  • Available in hydraulic, electric, or the self-contained gas drive (40hp EFI).
  • A belt width of 20".
  • A tube length of 10’ and 15’.

2410A & 2415A


  • Achieves peak capacities of up to 17,000 bu/hr in Canola and up to 18,500 bu/hr in Durum.
  • Available in hydraulic, electric, or the self-contained gas drive (40hp EFI).
  • A belt width of 24".
  • A tube length of 10’ and 15'.

Specifications


  • Length (ft)
  • Discharge Height
  • Max Capacity Gas Canola (bu/hr)
  • Max Capacity Gas Durum (bu/hr)
  • Max Capacity Hyd Canola (bu/hr)
  • Max Capacity Hyd Durum (bu/hr)
  • Tube Length
  • Belt Width
  • Discharge Reach
  • Deck Height
  • Deck Width

  • 2010A

    • 28’ 8¾”
    • 32 ¾”
    • 12,000
    • 15,000
    • 11,500
    • 12,500
    • 10'
    • 20"
    • 69"
    • 5.75"
    • 67 ¾”

  • 2015A

    • 33’ 6¼”
    • 53 ¼”
    • 12,000
    • 15,000
    • 10,500
    • 10,500
    • 10'
    • 20"
    • 125 ½”
    • 5.75"
    • 67 ¾”

  • 2410A

    • 30’ 7¾”
    • 39 ¼”
    • 17,000
    • 18,500
    • 14,500
    • 15,500
    • 15'
    • 24"
    • 90"
    • 5.75"
    • 67 ¾”

  • 2415A

    • 35’ 4"
    • 59 ¾”
    • -
    • 16,500
    • -
    • 13,000
    • 15'
    • 24"
    • 146 ½”
    • 5.75"
    • 67 ¾”
Show More +

Oilseed-Certified™ Grain Decks

The all-new Oilseed-Certified™ GrainDeck conveyor is the first belt to be designed specifically for oilseed. This optional configuration loads all of your crops – even canola. The Oilseed-Certified™ belt conveyor’s self-cleaning system clears out crushed product build-up, keeping daily maintenance to a minimum. That means you can gently convey your crops, and it's backed up by warranty that is not limited by use with oilseed crops!
