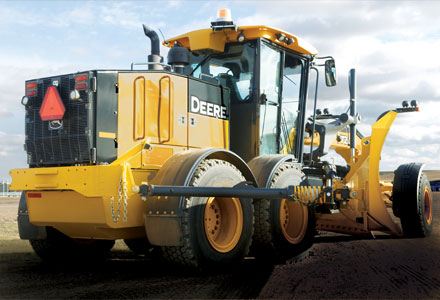

Mastless Snow Wing

SnowWing

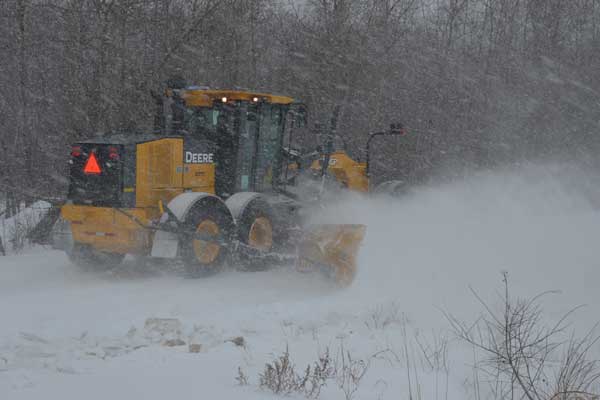

With the operator in mind, the innovative mastless Brandt Snow Wing places performance, durability and safety at the forefont. Watch the Brandt Mastless Snow Wing in Action!

Specifications

Mastless Snow Wing
Weight4040 lb
Fold Up Width10' 7"
Transport Width10' 11"
Fold Up Height11' 8"
Bench Height38 in
Banking Height10' 2"
Max Ditching Depth4' 0"
Distance To Wing Edge9' 7"

Features

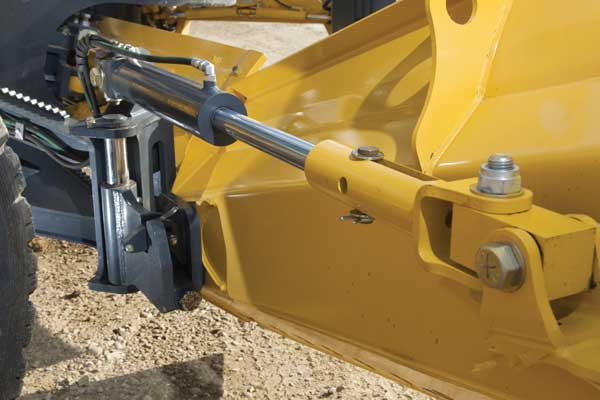

  • Innovative mastless design provides an incredible 38" of bench height and includes true parallel lift with single lever control.
  • The mastless design delivers superior visibility and optimal control of the wing which provides a safe working environment for both the operator and neighboring traffic. Both cab doors can be accessed because of this mastless front mount configuration.

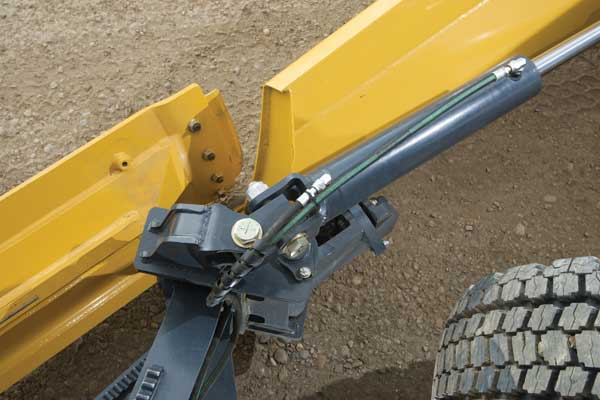

  •  Mechanical float features allow for travel at both the toe and the heel of the wing. The toe float function can also be locked out giving the operator full blade control.
  • Compact under mount design optimizes snow transfer between the grader moldboard and the snow wing.

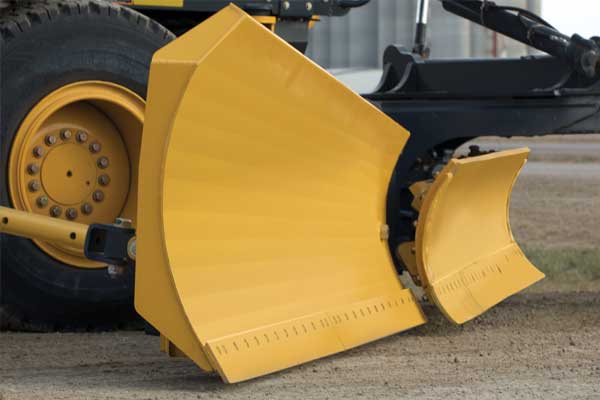

  • Engineered conical wing profileoffers outstanding snow casting ability.

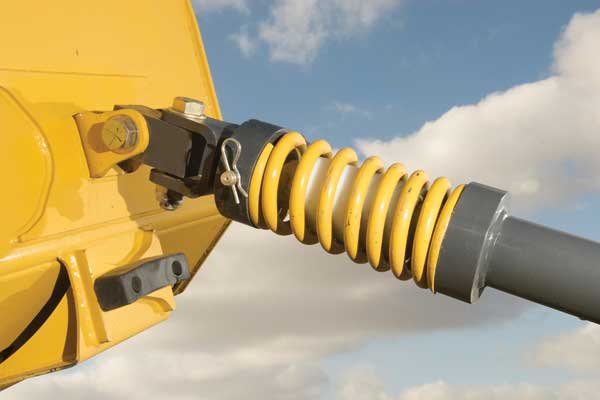

  • Heavy constant rate spring on the Manual or available Hydraulic push pole provide for excellent shock absorption and minimizes vibration on the equipment during operation.

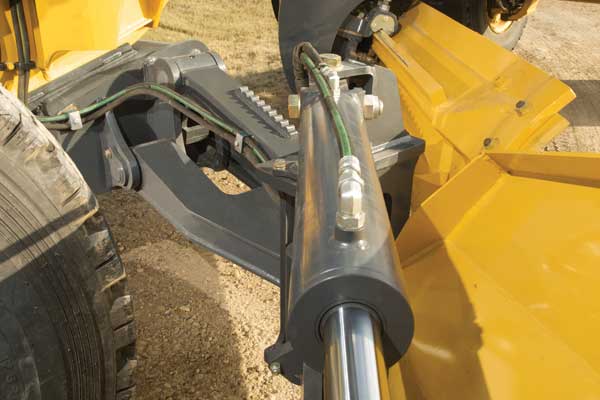

  • The use of a sub-plate between the motor grader gooseneck and the snow wing front mount allows for easy installation in the fall and simple removal in the spring. All engine compartment doors are accessible with the snow wing installed.
  • A common rear mount is used on all G Series models with or without a ripper installed. This allows for ease of interchangeability between motor graders if required.
